Ubiquiti Wave Pro | Buy Ubiquiti UniFi Wave Pro 60GHz long-distance PtMP & PtP Wireless Radio | WISP Australia

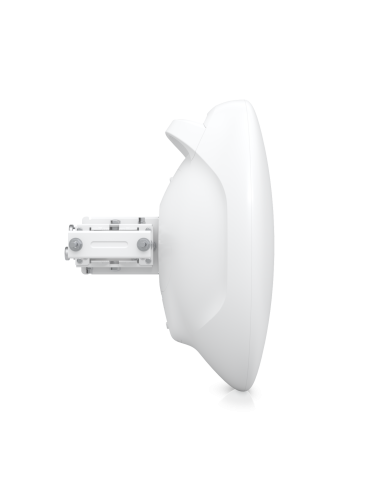

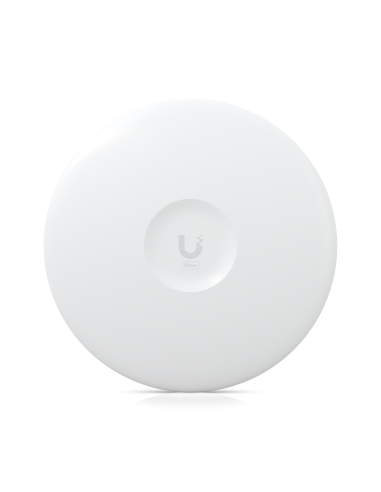

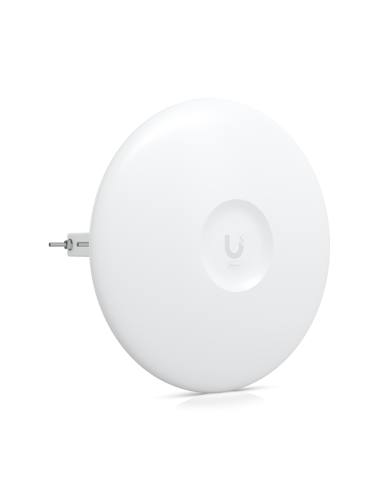

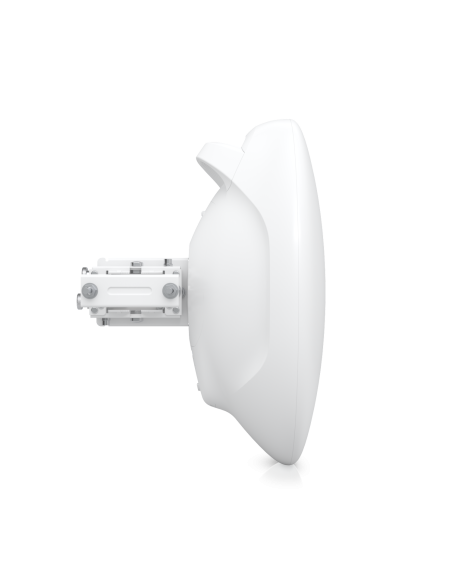

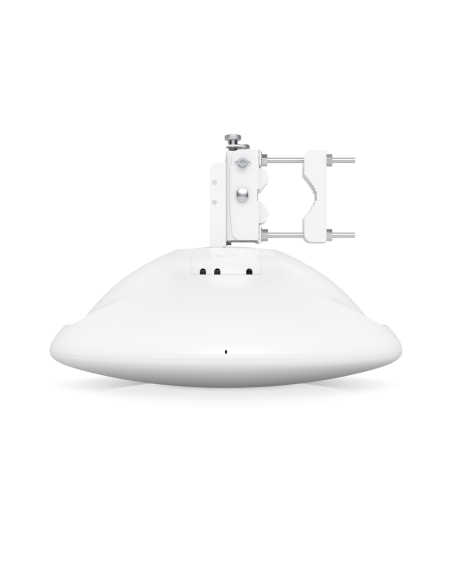

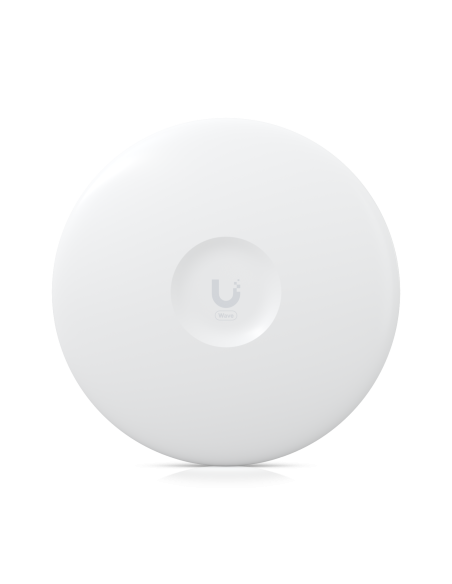

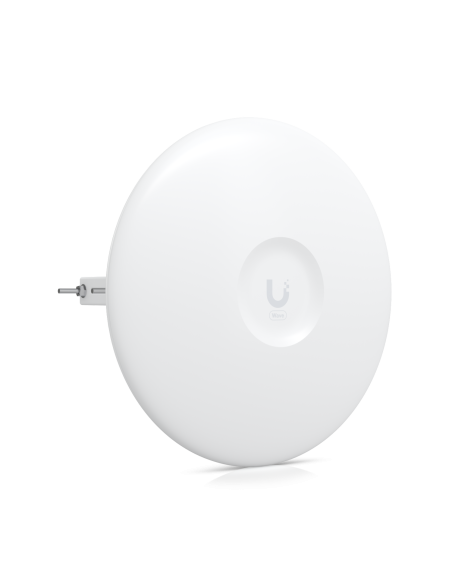

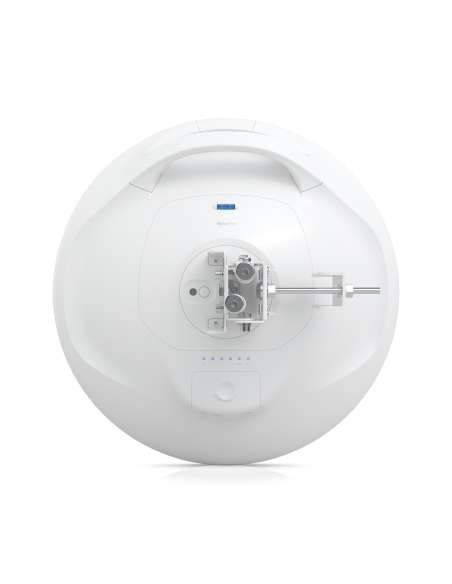

Ubiquiti UniFi Wave Pro 60GHz long-distance PtMP & PtP Wireless Radio

Name: Ubiquiti UniFi Wave Pro 60GHz long-distance PtMP & PtP Wireless Radio
Brand: Ubiquiti
SKU: Wave Pro
Price: 1204.5 AUD
Availability: InStock

Reference Wave Pro

Last items in stock

$1,204.50

Tax included

Wave Pro

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links

Features:

Max. link range:
— PtP: Up to 15 km
— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)
5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
(2) 2.5 GbE and (1) 10G SFP+ ports
Ergonomic transportation handle
Precision alignment mount
Integrated GPS & Bluetooth

Wave-LR

Wave Pro long-distance PtP (bridge) and PtMP links.

The Ubiquiti Wave-Pro, is a powerful 60 GHz radio engineered for long-range outdoor networking. This device is adaptable to both Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) configurations, providing flexibility for various networking needs. Featuring a primary radio operating at 60 GHz, the Wave-Pro delivers an impressive maximum throughput of 5.4 Gbps (2.7 Gbps duplex), facilitating high-speed data transmission over distances of up to 15 km in PtP mode and 8 km when used with a Wave Access Point in PtMP mode. This functionality is especially beneficial for installations requiring significant bandwidth over long distances, eliminating the need for extensive cabling.

Technical Specifications

Mechanical
Dimensions	Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
Weight	Without mount: 2.8 kg (6.2 lb) With mount: 4 kg (8.8 lb)
Enclosure material	Aluminum alloy, UV stabilized plastic
Mount material	Stainless steel
Pole mount diameter	25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading	369 N at 200 km/h (83 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L 512 MB
Networking interface	(2) 2.5 GbE RJ45 ports (1) 10G SFP+ port
Max. power consumption	26W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, (2) Ethernet, SFP+ , GPS, link
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating mode	PtP, PtMP station
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey, traffic shaping** FW version 3.3.0 and later. *FW version 3.4.0 and later.
Network	Bridge/Router* mode *Router is available in PtMP station mode only.
Application requirements	UISP: Version 2.3.0 and later
System
Total throughput	5.4 Gbps (2.7 Gbps duplex)
Max. range	PtP: Up to 15 km PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57 to 71 GHz *Depends on regulatory region.
Channel bandwidth	2160, 1080, 540* MHz *FW version 3.3.0 and later.
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 1.3° Elevation: 3 dB 1.3°
Back-Up RF
WiFi Standard	802.11ax (WiFi 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Max. conducted TX power	27 dBm
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	22 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 8° Elevation: 3 dB 8°
Cross-pol isolation	20 dB
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	(2) Flashing blue: Ethernet traffic detected
SFP+	(1) Flashing blue: SFP+ traffic detected
Links	White: 5 GHz link Blue: 60 GHz link
GPS	Blue: receiving at least (4) GPS satellite signal

Antenna Gain (dBi): 46
Device Type: PTP/PTMP Radio
Device Features: PoE Powered
SFP Ports: 1 Port
Wireless System: 5GHz
Ethernet Ports: 2
Environment Temperature: -40 to 60° C

EAN13 0810084690284

MPN Wave Pro
