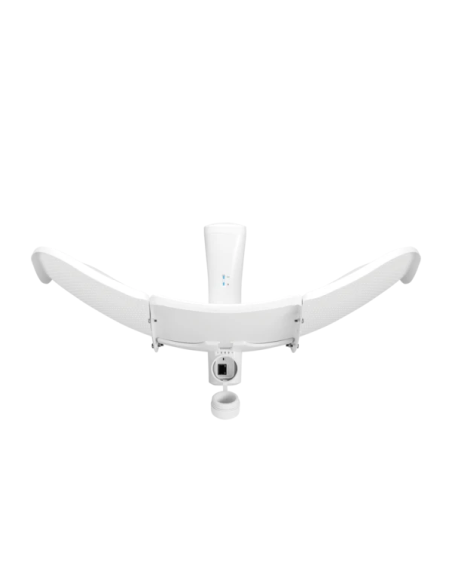

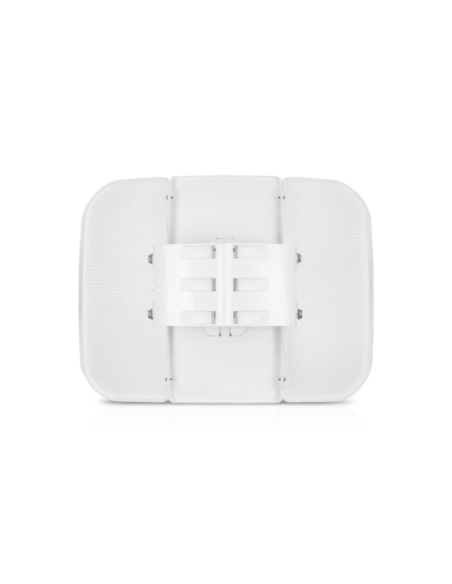

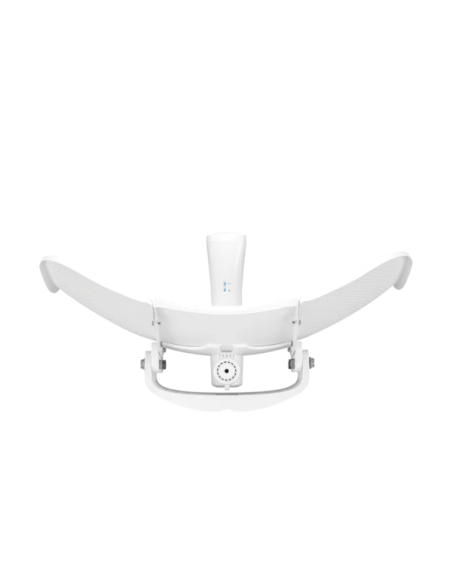

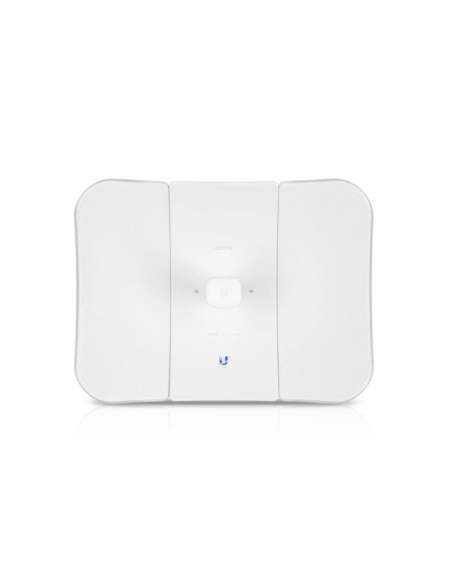

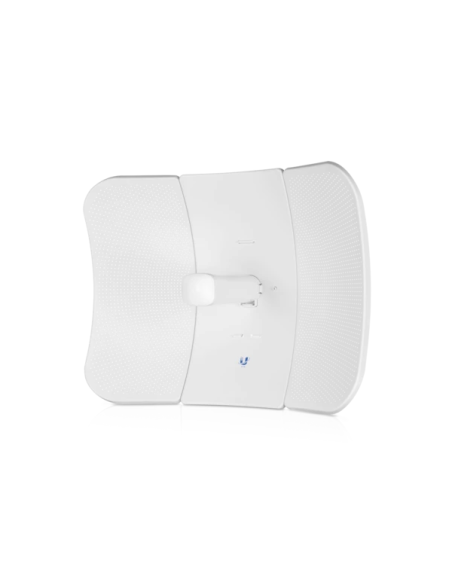

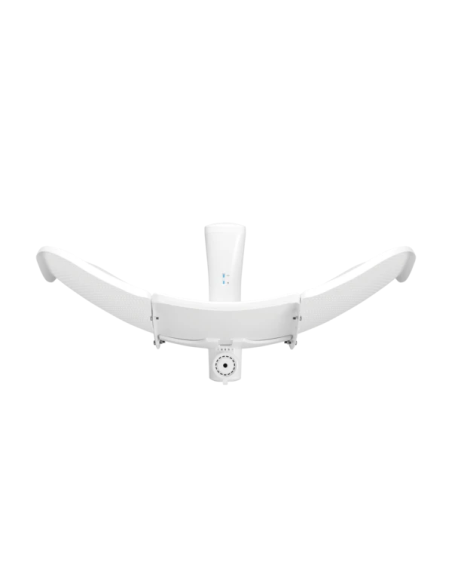

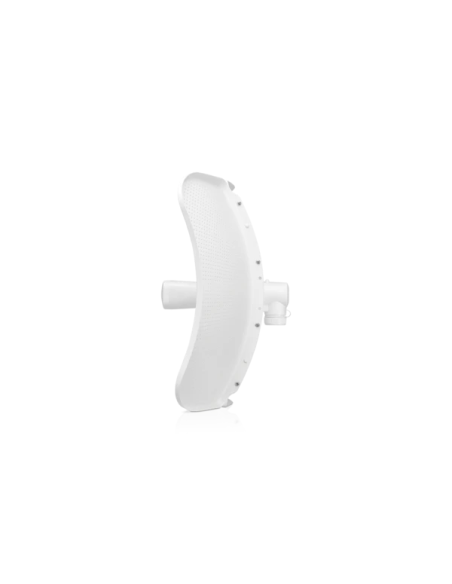

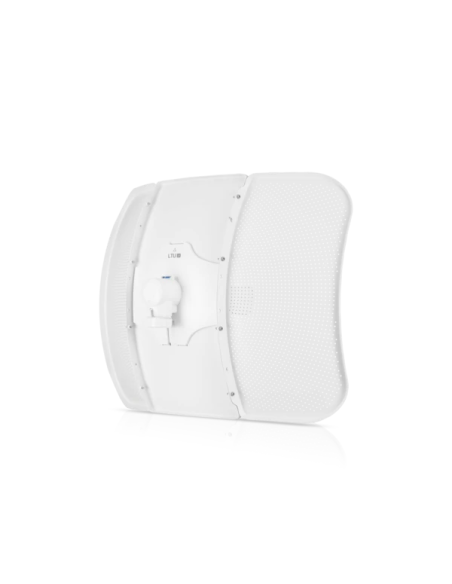

Ubiquiti LTU-LR 5 GHz 26 dBi PtMP LTU Long-Range Client Radio

Ubiquiti LTU-LR 5 GHz 26 dBi PtMP LTU Long-Range Client Radio

Overview
Designed for long-range applications, the LTU LR is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

Proprietary LTU Technology
Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2.

CPE Modes
The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

Frequency Split
The LTU LR can use different frequencies for TX and RX to avoid interference.

Improved Noise Immunity
The LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Design
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Quick Mounting and Alignment
The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole).

Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following:
• 10 MHz
• 20 MHz
• 30 MHz
• 40 MHz
• 50 MHz
• Up to 100 MHz*

Auto Power Adjustments
By default, the Auto Output Power option allows the LTU LR to set the output power (EIRP) to the appropriate level.

Signal Control
The LTU LR's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.

Convenient Configuration
To manage the LTU LR, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU LR.
Within the LTU Configuration Interface, you can manually configure the LTU LR or manage it from the AP side using the Find My AP feature. The LTU LR will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU LR.

LTU Configuration Interface
PtMP Dashboard
The Dashboard offers map and Fresnel views* so you can visualize the network. The map view shows your PtMP links overlaid on a geographic map, while the Fresnel view shows the link calculated for your selected CPE, including line of sight, first Fresnel zone, and 60% clearance zone.

New graphs provide instant status updates and help you to detect connectivity issues and their effects on PtMP performance:
• The airtime distribution bar graph displays in real time how much airtime each CPE is using. Click any point to view the airtime and link score for a specific CPE.
• The AP RF environment bar graph shows ambient RF noise levels across the frequency spectrum.
• The combined remote RF environment bar graph also shows ambient RF noise levels but for the combined environment of all of the remote CPEs.
• The local and remote RX rate histograms show the receive modulation rates of the various CPEs.

Real-Time Spectral Analysis
airView® spectral analysis runs on a dedicated and independent receiver, which has excellent EVM (Error Vector Magnitude) performance.
The receiver can also perform other tasks, such as a search for channel occupancy, DFS detection, and automatic channel/frequency assignment. Calibration (signal level measurement accuracy) and resolution bandwidth options are enhanced. Spectral zoom (user-defined scan limits) is also available.

PRODUCT SPECIFICATIONS

• Dimensions: 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
• Weight: With Mount     1.360 kg (2.998 lb) 1.735 kg (3.825 lb)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Enclosure: Outdoor UV Stabilized Plastic
• Max. Power Consumption: 8.5W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
• Voltage Range: 22 - 26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 26 dBi
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: ± 24kV Contact/Air
• Operating Temperature: -40 to 60° C (-40 to 140° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
