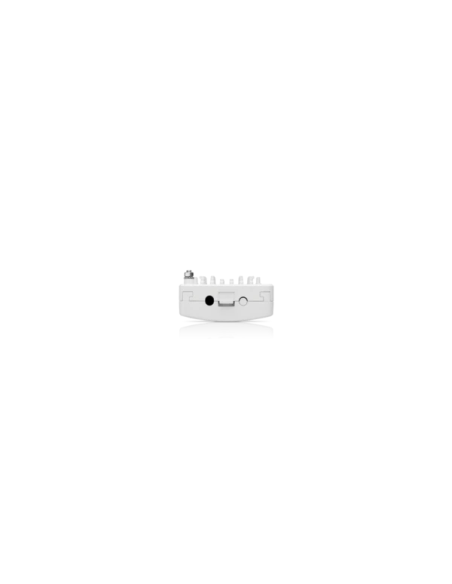

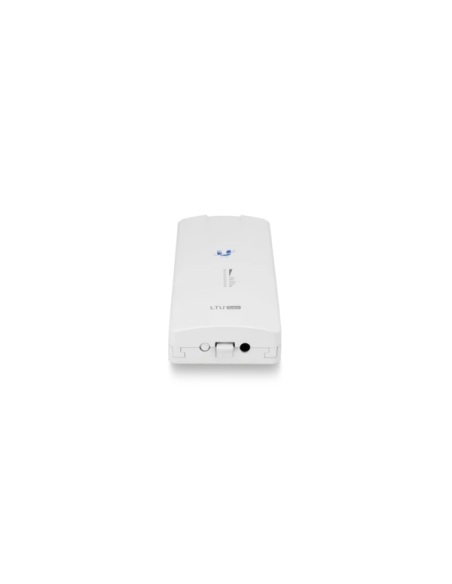

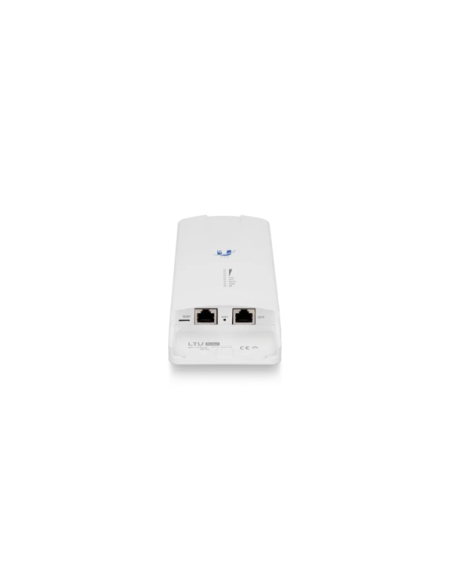

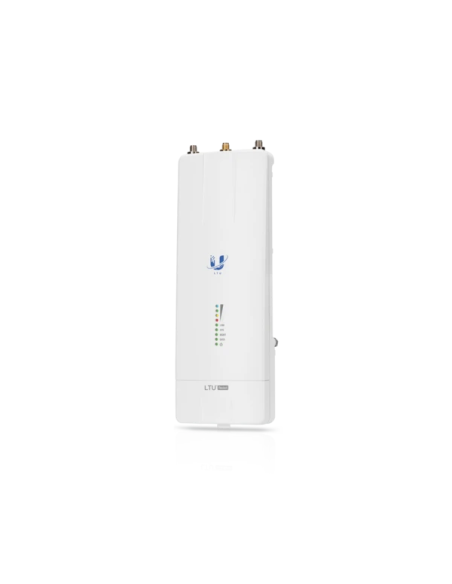

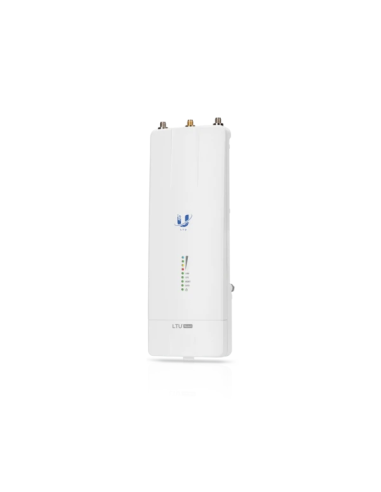

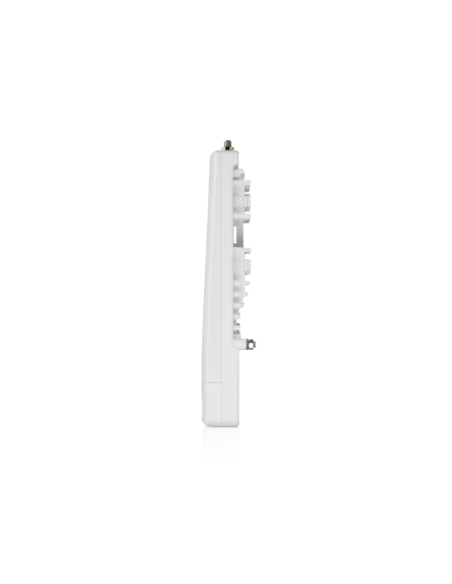

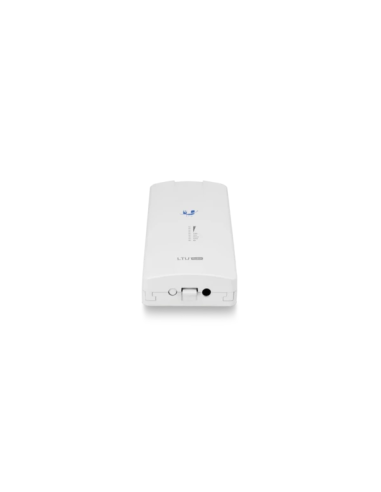

Ubiquiti LTU-Rocket 5 GHz PtMP 600+ Mbps 2+ Mpps LTU BaseStation Radio
LTU-Rocket
Ubiquiti introduces the LTU Rocket®, the first Point-to-Multi-Point (PtMP) BaseStation radio in our LTU™ product family. Operating in the 5 GHz frequency band, the LTU Rocket is a spectrally efficient, noise-resilient PtMP AP specifically designed for wireless ISPs (WISPs).
Primary features of the LTU Rocket include:
•600+ Mbps PtMP performance
•Up to 125 client connections per AP
•2+ Million pps
•Proprietary RF filtering
LTU-Rocket - Ubiquiti 5 GHz PtMP 600+ Mbps 2+ Mpps LTU BaseStation Radio
Product Features
Superior Performance
LTU is a new, proprietary technology with custom silicon and radio design that break through the limitations of 802.11 Wi-Fi technology. This enables LTU to deliver far superior performance over previous airMAX products that are based on 802.11 Wi-Fi.
The LTU Rocket is designed for WISPs from the ground floor up. Its core communications processing engine enables low latency, long-range capability, DFS flexibility, higher constellations, better power output, and improved receive sensitivity.
Seamless Compatibility
The LTU Rocket is designed to be paired with a variety of Ubiquiti antennas to suit the needs of each installation. The radio includes a mounting bracket that allows it to be used with a 5 GHz airMAX® Sector antenna or airMAX Omni antenna for a complete 5 GHz PtMP BaseStation. You can even pair three LTU Rocket radios with the airPrism® 5 GHz 3x30° HD Sector Antenna for co-location deployments.
The LTU Rocket also works with any CPE device in the LTU family, such as the LTU-Pro.
Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include:
•10 MHz
•20 MHz
•30 MHz
•40 MHz
•50 MHz
•Up to 100 MHz
Auto Power Adjustments
By default, the Auto Output Power* option allows the LTU Rocket to set the output power (EIRP) to the appropriate level.
Frequency Split
The LTU Rocket can use different frequencies for TX and RX to avoid interference.
Signal Control
The LTU Rocket's target TX output power controls each station's TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
Convenient Configuration
To manage the LTU Rocket, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Rocket.
The LTU Rocket can also be used to automatically configure the stations. On each station, use the Find My AP feature to scan for APs using the same channel bandwidth, select the appropriate LTU Rocket, and then use it to configure the station.
Integrated GPS
Built-in GPS improves synchronization and allows map and Fresnel views on the Dashboard.
LTU Configuration Interface
PtMP Dashboard
The Dashboard offers map and Fresnel views so you can visualize the network. The map view shows your PtMP links overlaid on a geographic map, while the Fresnel view shows the link calculated for your selected CPE, including line of sight, first Fresnel zone, and 60% clearance zone.
New graphs provide instant status updates and help you to detect connectivity issues and their effects on PtMP performance:
•The airtime distribution bar graph displays in real time how much airtime each CPE is using. Click any point to view the airtime and link score for a specific CPE.
•The AP RF environment bar graph shows ambient RF noise levels across the frequency spectrum.
•The combined remote RF environment bar graph also shows ambient RF noise levels but for the combined environment of all of the remote CPEs.
•The local and remote RX rate histograms show the receive modulation rates of the various CPEs.
Real-Time Spectral Analysis
airView® spectral analysis runs on a dedicated and independent receiver, which has excellent EVM (Error Vector Magnitude) performance.
The receiver can also perform other tasks, such as a search for channel occupancy, DFS detection, and automatic channel/frequency assignment. Calibration (signal level measurement accuracy) and resolution bandwidth options are enhanced. Spectral zoom (user-defined scan limits) is also available.
Deployment Flexibility
The LTU Rocket can be used with existing airMAX 5 GHz sector antennas offering gain of 16 to 22 dBi, as well as airMAX 5 GHz omni antennas offering gain of 10 to 13 dBi.
The radio's built-in mounting bracket allows it to fit into the radio mount of these antennas – no special tools are needed for installation.
Compatible airMAX Antennas
For best performance, antennas should be selected to allow for a conducted TX power of 20 dBm or below.
Product Specifications
TECHNICAL SPECIFICATIONS
Width x Height x Depth: 224 × 82 × 48mm (8.82 × 3.23 × 1.89")
Weight: 0.468 kg (1.03 lb)
GPS: External, Magnetic Base
Operating Frequency
5150-5250MHz
5740-5850MHz
Power
Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
Power Method: Dual Passive Power over Ethernet
Max. Power Concumption: 25W
Supported Voltage Range: +18 to +54VDC*
Networking Interface
Data Port: (1) 10/100/1000 Ethernet Port
Configuration Port: (1) 10/100/1000 Ethernet Port
System
Processor: LTU IC
Maximum Throughput: 600 Mbps*
Maximum Range: 200+ km**
Encryption: 128-bit AES
Operating System: airOS F
Radio Frequency
Max TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy
± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel Bandwidth
10/20/30/40/50 MHz Selectable
Programmable Uplink and Downlink Duty Cycles
Environment
Operating Temperature: -40° to 55° C (-40° to 131° F)
Certifications
FCC
Mounting
airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
- Device Type
- PTP/PTMP Radio
- Wireless System
- 5GHz
