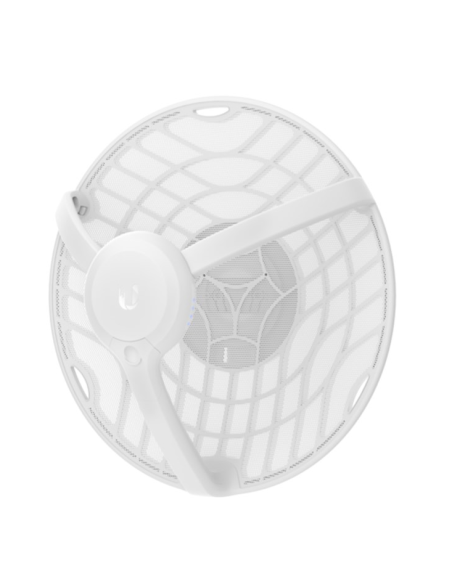

Ubiquiti Networks GBE-LR-AU airMAX GigaBeam Long-Range 60/5 GHz Radio

GBE-LR
In Stock
$345.00
Tax included

Ubiquiti GBE-LR

Ubiquiti Networks GBE-LR airMAX GigaBeam Long-Range 60/5 GHz Radio

Ubiquiti Networks GBE-LR GigaBeam airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km Range

Ubiquiti Networks GBE-LR airMAX GigaBeam features a high-gain dish antenna, the GBE-LR GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The GBE-LR GigaBeam has a dedicated management radio that allows easy setup via Wi-Fi.

Ubiquiti Networks GBE-LR airMAX GigaBeam Features:

60 GHz radio with 5 GHz radio backup
Low-interference 60 GHz spectrum
Up to 1+ Gbps with low latency
Long-range performance
2.4 GHz management radio
Full bandwidth support: 2.16 GHz


GBE-LR
Dimensions 415 x 415 x 303 mm
(16.34 x 16.34 x 11.93")
Weight
Without Mount
With Mount

1.4 kg (3.09 lb)
1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 Ghz
60 Ghz

11 dBi
38 dBi
Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G
Wind Loading 56 N @ 200 km/h
<(12.6 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)

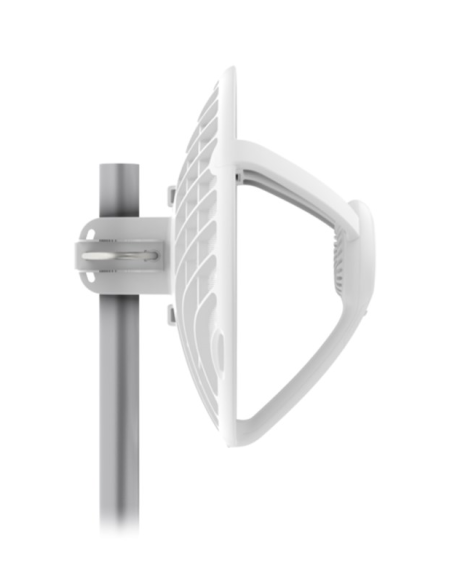

Mounting Pole Mount (Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
RADIO
Max. Conducted TX Power
5/60 GHz Combined

25 dBm
Channel Bandwidth
60 Ghz
5 Ghz

2160 Mhz
20/40/80 Mhz
OPERATING FREQUENCY (MHZ)
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150 - 5250
5250 - 5350
5470 - 5725
5725 - 5850
57,000 – 66,000
Worldwide 5180 – 5875
57,000 - 66,000
MANAGEMENT RADIO (MHZ)
Worldwide 2412 - 2472
US/CA 2412 - 2462

Device Features
PoE Powered, Outdoor, Managed
Wireless System
1
Link-Distance
upto 1000 Mtr
