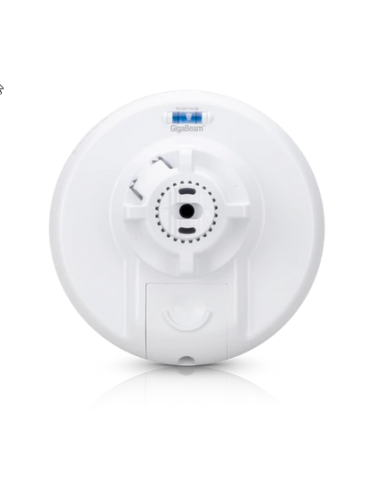

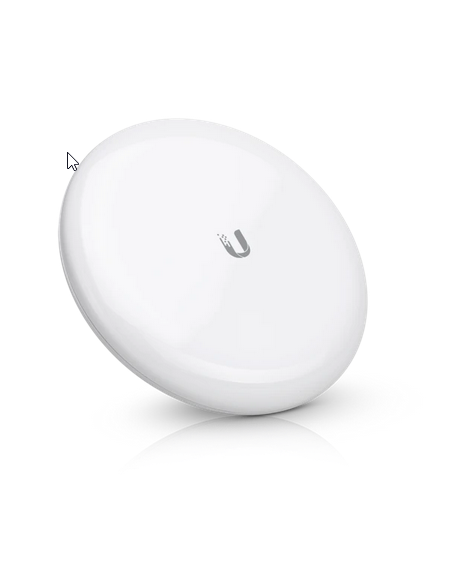

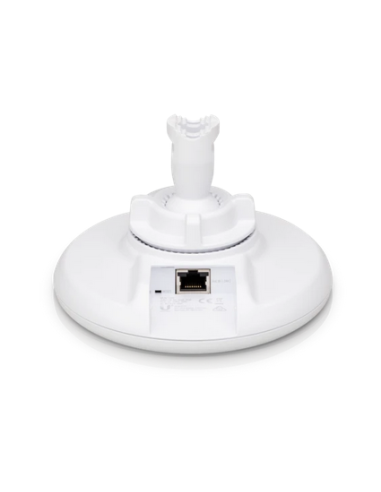

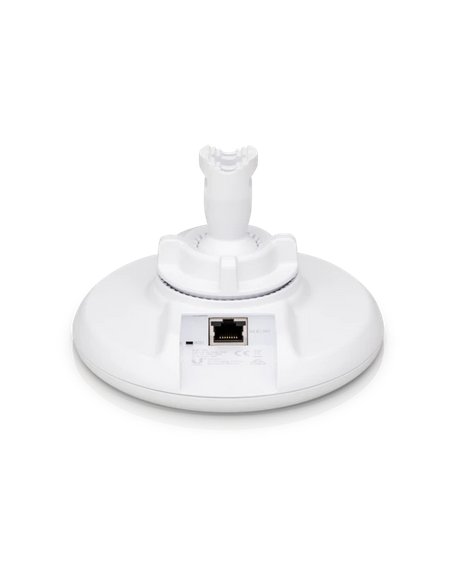

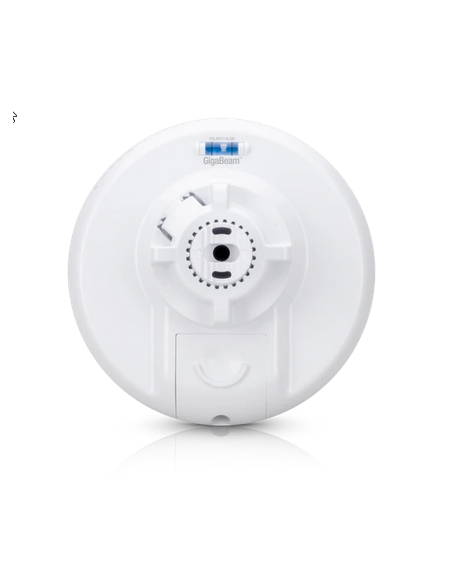

Ubiquiti Airmax Gigabeam Radio GBE

airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput

The GigaBeam is a 60 GHz radio designed for low-interference and high-throughput connectivity. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

Features:

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • 2.4 GHz management radio
  • Full bandwidth support: 2.16 GHz

Related Products & Accessories



GBE - Ubiquiti Airmax Gigabeam Radio GBE

GBE
Dimensions 140 x 140 x 44 mm
(5.51 x 5.51 x 1.73)
Weight 376 g
(13.3 oz)
Enclosure UV-Resistant Polycarbonate
Gain
5 GHz
60 GHz
10 dBi
17.2 dBi
Networking Interface 10/100/1000 Ethernet Port
Wi-Fi for Management
Max. Power Consumption 11W
Power Method Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C (-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Radio
Max. Conducted TX Power
5/60 GHz Combined
25 dBm
Channel Bandwidth
60 GHz
5 GHz
2160 MHz
20/40/80 MHz
Operating Frequency
Worldwide 5.180 - 5.875
57 - 66
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5.180 - 5.250
5.250 - 5.350
5.470 - 5.725
5.725 - 5.850
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462

Antenna Gain (dBi)
17.2Dbi
Device Type
PTP/PTMP Radio
Device Features
Managed
Outdoor
PoE Powered
Wireless System
2.4GHz
5GHz
60GHz
Ethernet Ports
1 Eth port
Link-Distance
upto 400 Mtr
810010070395
GBE
