Gigabeam Plus PtP link
60GHz high speed PtP link for up to 1km
Gigabeam Plus PtP link
60GHz high speed PtP link for up to 1km

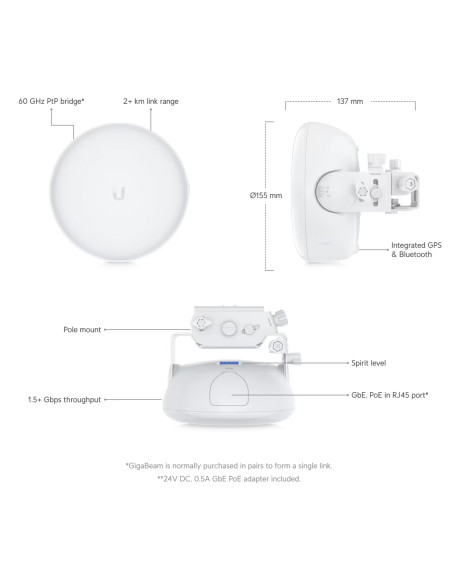

Ubiquiti airMAX GigaBeam Plus Bridge 60GHz Link with True Duplex

2xGBE-PLUS
In Stock
$725.00
Tax included

This pair of high speed Gigabeam Plus working in 60ghz frequency can create a very fast, stable link (LOS is required) for up to 1km !



PtP transparent bridge based on two Gigabeam Plus units

The Ubiquiti GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP Mobile app via Bluetooth.

This link comes as a complete package incl. power injectors, devices, mounts


Product Features:

  • Low-Interference 60 GHz Spectrum
  • 35 dBi Antenna Gain with Integrated Reflector
  • 1.5+ Gbps Bidirectional Throughput with Low Latency
  • Long Range, up to 1.5 km
  • Quick Setup Using the UISP App via Bluetooth
  • Operating Frequency (Depends on regulatory region): 57,000 - 66,000 MHz
  • Max. Conducted TX Power: 17 dBm
  • Channel Bandwidth: 2160 MHz
  • Operating Channels: 58320, 60480, 62640, 64800 MHz
  • Antenna Gain: 35 dBi
  • HPOL: NaN (The Antenna is Only Vertically Polarized)
  • VPOL: 3°
  • Elevation: 3°
  • Management Radio: 2400 - 2483.5 MHz
  • Electrical Downtilt: 0°

Product Specifications:

  • Processor: Quad-Core ARM Cortex A7
  • Memory: 256 MB DDR3
  • Networking Interface: 10/100/1000 Mbps Ethernet RJ45 Management Interface
  • Ethernet In-Band
  • Bluetooth
  • RF Connections: Internal
  • Max. Power Consumption: 11W
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)
  • 24VDC, 0.5A Gigabit PoE Adapter
  • 24V, 1A for using Motor Accessory
  • Supported Voltage Range: 22 to 26VDC
  • ESD/EMP Protection: Air/Contact: ± 24kV
  • Operating Temperature: -40 to 60° C
  • Operating Humidity: 5 - 95% Non-condensing
