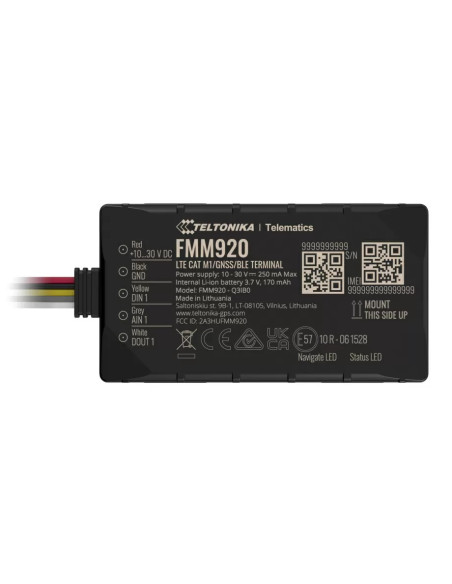

Teltonika FMM920 Small and Smart GPS tracker with 4G CAT M1 Connectivity

FMM920
*** Out of stock ATM, Available On Backorder ***
$95.70
Tax included

FMM920 , tracker with 4G CAT M1 Connectivity

Teltonika FMM920 is a small and smart tracker with Bluetooth® connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat M1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.
The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more. All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet, to any transportation. The far-reaching experience of the FMM920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.

Key Features:

4G CAT M1

Reliable 4G (LTE Cat M1) connection with fallback 2G (GSM) network

BLUETOOTH® TECHNOLOGY

Bluetooth® LE for external devices and sensors

JAMMING DETECTION

Anti-theft solution and stolen vehicle recovery

BACKUP BATTERY

Allows device to work without external power source

Quantity Unit price You Save
5 $86.13 $47.85
10 $81.35 $143.55
20 $73.69 $440.22

Related Products & Accessories



FMM920, tracker with 4G CAT M1 Connectivity

Eco driving scenario for all-round better driving

Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Slim design to fit the tightest spaces

12 mm-height device can be easily fitted in the tightest spaces

Extensive remote monitoring possibilities

Blocking engine remotely among the numerous available fleet control measures

Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

PRODUCT SPECIFICATIONS

Module
Name FMM920-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology LTE Cat M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 tracking channel, 99 acquisition channel
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology LTE Cat M1/NB-IoT/GSM
2G bands BG95-M3: B2/B3/B5/B8
4G LTE Cat M1 bands Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer BG95-M3:
LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support SMS (text/data)
Power
Input voltage range 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 3 mA (Deep Sleep)
At 12V < 8 mA (Online Sleep)
At 12V < 12 mA (GPS Sleep)
At 12V < 28 mA (nominal)
Bluetooth® Technology
Specification 4.0 + LE
Supported peripherals EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner,
Universal Bluetooth® LE beacons and sensors support
Physical Specification
Dimensions 79 x 43 x 12 mm (L x W x H)
Weight 54 g
Operating Environment
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP54
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Operating temperature (with battery) -20 °C to +40 °C
Interface
Digital Inputs 1
Digital Outputs 1
Analog Inputs 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection,
GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection,
Unplug detection, Towing detection, Crash detection, Auto Geofence,
Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Certification & Approvals
Regulatory FMM920-Q3IB0: CE/RED, E-Mark, RCM, RoHS, REACH, Anatel
Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
2G Bands
4G LTE Cat M1 bands
Power Supply
10-30V DC
Hardware inputs
Analog input
Digital input-DIN
Digital output
Bluetooth
4.0+LE
SIM Card
Micro-Sim
Ingress Protection
IP54
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
Manual Geofence
Towing Detection
Unplug detection
FMM920
