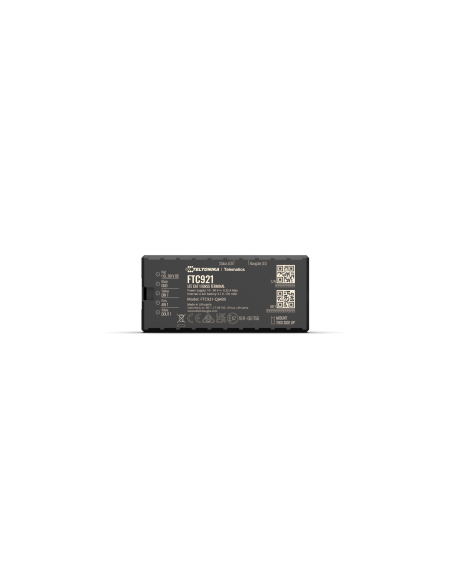

Teltonika FTC921 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy

FTC921
Last items in stock
$79.09
Tax included

FTC921

High voltage BASIC category GPS tracker with 4G LTE Cat 1 connectivity and enhanced GNSS accuracy

key Features:

  • IP rating IP41
  • Pinout 5
  • CableStandard
  • Battery Capacity 170 mAh
  • Voltage 10-90 V

Quantity Unit price You Save
5 $71.18 $39.55
10 $67.23 $118.64
20 $60.90 $363.81

Related Products & Accessories



Teltonika FTC921 4G LTE Cat 1 vehicle GPS tracker
FT PLATFORM

Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level
HIGHER GNSS ACCURACY

More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services
LONGER PERFORMANCE, SLOWER DRAINAGE

Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage
HIGH VOLTAGE POWER SUPPLY

Extended integration versatility for seamless use in e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles

PRODUCT SPECIFICATIONS

MODULE
Name
FTC921-QJAB0
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receiver
135 tracking/acquisition channels
Tracking sensitivity -165 dBM
Accuracy

< 1.8 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
CELLULAR
2G bands

GSM: B2/B3/B5/B8
4G LTE bands
LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28
Data transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power

Class 5 for GSM850/900: 30±5dBM

Class 3 for GSM1800/1900: 29±5dBM

Class 3 for LTE-FDD: 26±5dBM
Data support SMS (TEXT, PDU), Network protocols (TCP)
DATA CODEC
Codec support Codec 8 Extended
POWER
Input voltage range 10-90 V
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse 3A, 125V
PHYSICAL SPECIFICATION
Dimensions 93 x 43 x 12.5 mm (L x W x H)
Weight 65 g
INTERFACE
Digital Inputs 1
Digital Outputs 1
Analog Inputs 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB USB 2.0 USB Type-C
LED indication 2 status LED lights
SIM

Nano-SIM
Memory 128MB internal flash memory
OPERATING ENVIRONMENT
Operating temperature (with battery) -40 °C to +85 °C
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (with battery) -20 °C to +60 °C
Operating humidity 65 ± 20% non-condensing
Ingress Protection Rating

IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature
65 ± 20%RH

-10 °C to +50 °C for 1 month

-10 °C to +35 °C for 3 months

0 °C to +30 °C for 1 year
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Trip
Sleep modes Deep Sleep
Configuration and firmware update FOTA WEB, Teltonika Configuration Tool (TCT)
SMS Configuration, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage
CERTIFICATION & APPROVALS
Regulatory

FTC921-QJAB0: CE/RED, E-Mark, RCM (Planned, not started.), RoHS, REACH, Pulse 5b

Device Type
Tracker
Antenna
Internal GNSS
Connectivity
2G Bands
4G LTE bands
Hardware inputs
Analog input
Digital output
Ingress Protection
IP41
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Unplug detection
