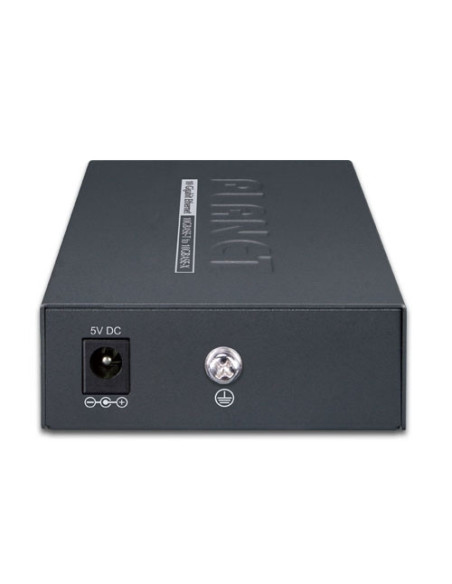

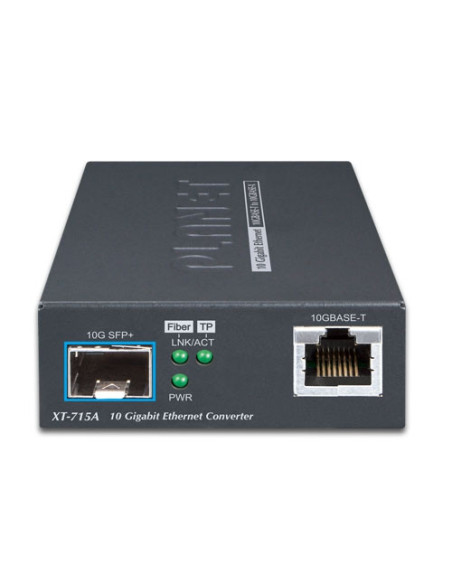

Planet XT-715A 10GBASE-T to 10GBASE-X SFP+ Media Converter

XT-715A
*** Out of stock ATM, Available On Backorder ***
$176.00
Tax included

XT-715A

Flexible and Reliable 10G Network Distance Extension Solution

Planet XT-715A Media Converter, adopting the IEEE 802.3bz/an/ae Ethernet standard technology, is equipped with one 2.5G/5G/10GBASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode transmission, utilizing a 10GBASE-SR or 10GBASE-LR SFP+ transceiver placed in the SFP+ slot to extend distances where servers and switches can be reached. The deployment distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

10Gbps SFP+10Gbps RJ45Jumbo FRAMEChassisWall MountableMetal Housing KG

Related Products & Accessories



XT-705A - PLANET 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter



High Performance 10Gbps Ethernet Capacity

The XT-715A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-715A can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones or high capacity servers, campus networks, and carrier infrastructure.



10G Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XT-715A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions

Optic Mode
Connector Type
Distance
Multi-mode
Duplex LC
300m
Single mode
Duplex LC
2/10/20/40/60/80km
Single mode WDM
Simplex LC
10/20/40/60/70km



Low Power Consumption for Energy Savings

The XT-715A adopting the advanced chip technology has the power-saving feature that has a low power consumption of only 5.3 watts when in full operation.



Used as Standalone Unit or With Chassis

The XT-715A Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to the XT-715A Media Converter to maintain the fiber-optic network in one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space.

Device Type
Media Converter
Device Features
TAA Compliant
SFP+ Ports
1
SFP
Yes, 10G SFP+
Ethernet Ports
1 Eth port
Installation Type
DIN-rail kit and wall-mount ear
Ports
1 Ports 10/100/1000T
Power Requirement
5V DC, 2A max. (Power Socket, external AC-to-DC adapter)
Speed
1-Port 10G BASE-T to 1-Port 10G BASE-X SFP+
Optical Interface
*SFP module required and sold separately*
XT-715A
No reviews

Related Products & Accessories

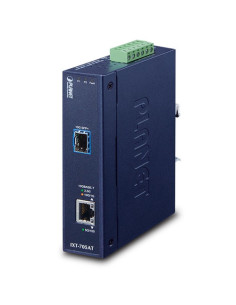

PLANET IXT-705AT Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
In Stock
Industrial Devices

Planet IXT-705AT Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

PLANET
IXT-705AT
$374.00
IXT-705AT Flexible, Reliable and Industrial-grade Backbone Network Distance Extension SolutionPLANET IXT-705AT is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps,1Gbps, 2.5Gbps,...
PLANET MTB-SR 300M 10G SFP+ Fiber Transceiver (Multimode)
In Stock
Wired Networking

Planet Multi-Mode MTB-SR 300M 10G SFP+ Fiber Transceiver (Multimode)

PLANET
MTB-SR
$60.50
MTB-SR PLANET Technology’s 10000Mbps 10G Ethernet XFP/SFP+ Fiber Transceiver offers a range of Small Form-factor Pluggables (SFP) transceivers for your PLANET devices. The 10G SFP+ and 10G Fiber Optic (XFP) Gigabit Ethernet modules are ideal for data center cloud computing. The devices are compatible with PLANET Products that support 10G SFP+ or 10G XFP...

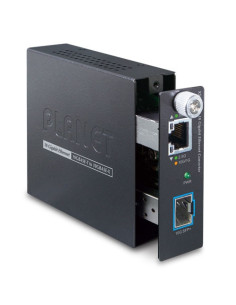

PLANET XST-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter
*** Out of stock ATM, Available On Backorder ***
Media Converters

Planet XST-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

PLANET
XST-705A
$269.34
XST-705A Flexible and Reliable Network Distance Extension Solution PLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+...
Planet MTB-LR 300M | Buy Planet Single-Mode MTB-LR 10G SFP+ Fiber Transceiver (Single Mode) – 10KM| WISP Australia
*** Out of stock ATM, Available On Backorder ***
Wired Networking

Planet Single-Mode MTB-LR 10G SFP+ Fiber Transceiver – 10KM

PLANET
MTB-LR
$103.40
MTB-LR The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode,...
PLANET MTB-LR20 10G SFP+ Fiber Transceiver (Single-Mode, 1310nm, DDM) – 20KM
*** Out of stock ATM, Available On Backorder ***
Wired Networking

Planet Single-Mode MTB-LR20 10G SFP+ Fiber Transceiver (1310nm, DDM) – 20KM

PLANET
MTB-LR20
$170.56
MTB-LR20 10G SFP+ Fiber TransceiverPLANET Technology’s 10,000Mbps 10G Ethernet XFP/SFP Fiber Transceiver offers a range of Small Form-factor Pluggables (SFP) transceivers for your PLANET devices. The 10G SFP and 10G Fiber Optic (XFP) Gigabit Ethernet modules are ideal for data center cloud computing. The devices are compatible with PLANET Products that...
Planet MTB-SR2 2KM | Buy Planet Single-mode MTB-SR2 10G SFP+ Fiber Transceiver (Single-mode, 1310nm, DDM) 2KM | WISP Australia
In Stock
Wired Networking

Planet Single-mode MTB-SR2 10G SFP+ Fiber Transceiver (1310nm, DDM) 2KM

PLANET
MTB-SR2
$88.00
MTB-SR2 The MTB-SR2 by Planet Technology is a 10,000Mbps 10G Ethernet XFP/SFP Fiber Transceiver. Package: SFP PHY Type: 10GBase-SR Fiber Type: Singlemode Connector: LC Wavelength: 1310nm Max. Distance: 2km DDM Supported: Yes Operating Temperature: 0 to 60°C

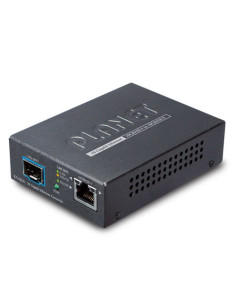

Planet XT-705A |Buy PLANET XT-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter | WISP Australia
