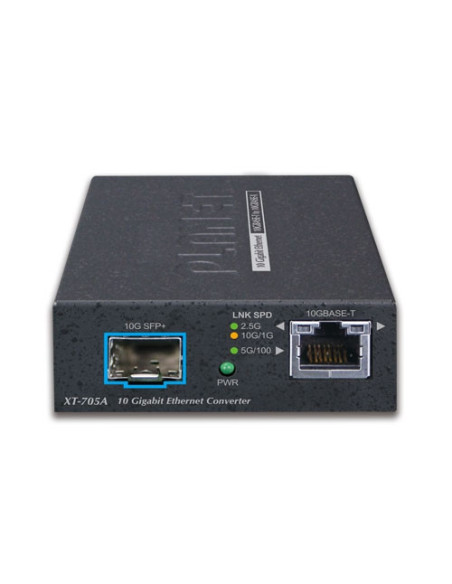

Planet XT-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

XT-705A
*** Out of stock ATM, Available On Backorder ***
$258.50
Tax included

XT-705A

Flexible and Reliable Network Distance Extension Solution

PLANET XT-705A Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

Jumbo FRAME Metal Housing KG Chassis Wall Mount 10Gbps SFP+ 10Gbps RJ45

Related Products & Accessories



XT-705A - PLANET 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

High Performance 10Gbps Ethernet Capacity

The XT-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-705A can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.

Robust Protection

The XT-705A provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Low Power Consumption

The XT-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.75 watts when in full operation.



Easy Chassis Installation

The XT-705A Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to the XT-705A Media Converter to maintain the fiber-optic network at one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space.

Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XT-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions.



Hardware Specifications
Copper Interface 1 x 10G/5G/2.5G/1G/100BASE-T RJ45
Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface 1 x 10GBASE-X R SFP+ interface
LED System:
　PWR (Green)
10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces:
　1G/10G LNK (Orange)
　5G/2.5G/100M LNK (Green)
Switch Processing Scheme Store and Forward
ESD Protection 6KV DC
Enclosure Compact-sized metal case
Installation Desktop, wall mountable
Media convert Chassis installation
Optional DIN-rail kit
Dimensions (WxDxH) 94 x 70 x 26mm
Weight 180g (device only)

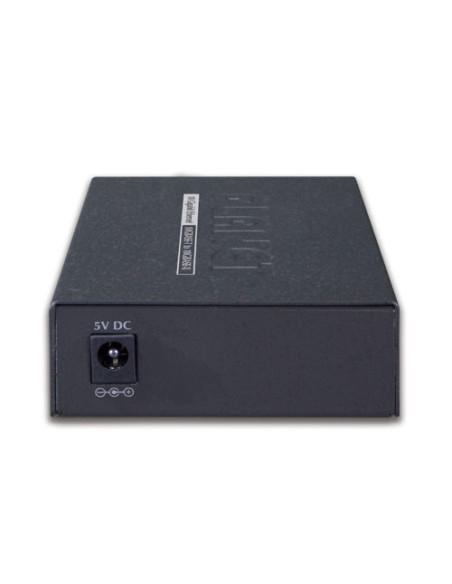

Power Requirements 5V DC, 2A max.
Power Consumption 3.75 watts / 12.8 BTU per hour max.
Converter Specifications
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Fabric 20Gbps
Address Table 9K entries, automatic source address learning and aging
Jumbo Frame 16K
Network Cables 10G/5G/2.5G/1G/100M BASE-T:
　10G--Cat 6A/Cat 7
　5G--Cat 6/Cat 6A/Cat 7
　1G/2.5G--Cat 5e/Cat 6/Cat 6A/ Cat 7
　100M--Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7
　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)
　EIA/TIA-568 100-ohm STP (100 meters, max.)
10GBASE-LR/SR/BX:
　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
　9/125μm single-mode fiber optic cable, up to 60km
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Operating environment 0 ~ 50 degrees C
Storage environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity (non-condensing)
Storage Humidity 5 ~ 95%, relative humidity (non-condensing)
Standards Compliance IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x full-duplex flow control

Antenna Gain (dBi)
3
Device Type
Media Converter
Device Features
TAA Compliant
SFP+ Ports
1
SFP
Yes, 10G SFP+
Installation Type
DIN Rail or Wall Mount
Power Consumption
3.75W / 12.8BTU per hour max.
Power Requirement
5V DC, 2A max.
Speed
10G BASE-T to 10G BASE-X SFP+
Compatible Chassis
MC-700, MC-1500, MC-1500R, MC-1500R48
Optical Interface
*SFP module required and sold separately*
4711605283656
XT-705A
