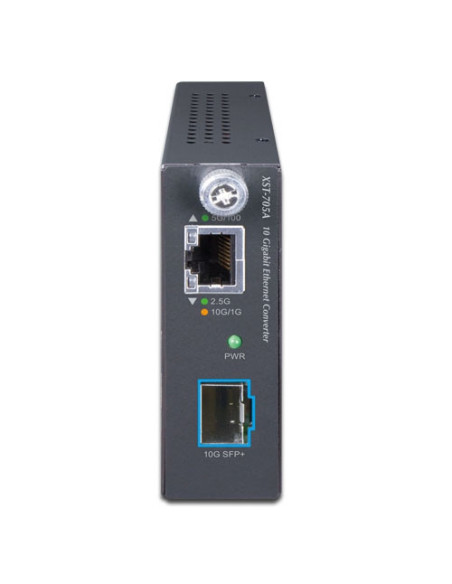

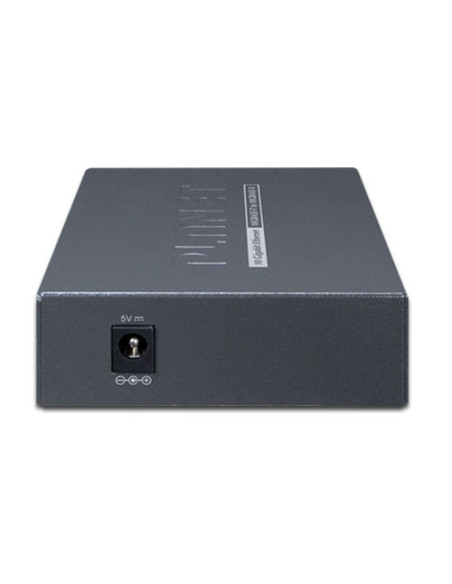

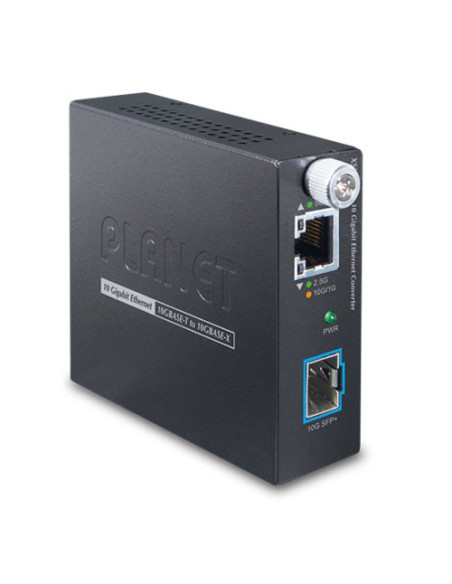

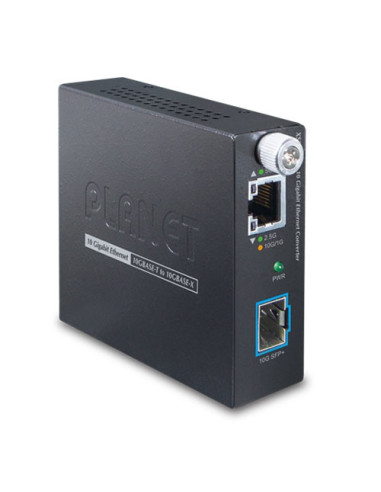

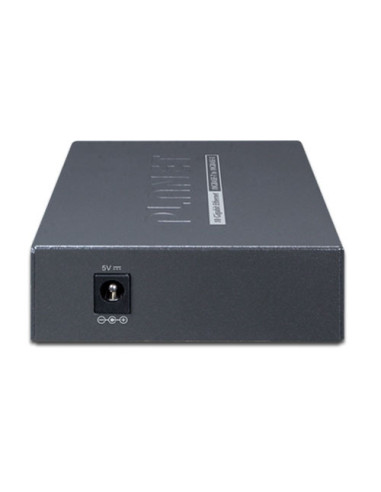

Planet XST-705A 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

XST-705A - PLANET 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

Diversified Central Management and Easy Chassis Installation

The XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location.

High Performance 10Gbps Ethernet Capacity

The XST-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and featuring auto negotiation support in its 10 Gigabit port, the XST-705A Smart Media Converter can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.

Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XST-705AT is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions.

Low Power Consumption

The XST-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.8watts when in full operation.

Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions.

Standalone and Centrally-managed Media Converter Installation

PLANET XST-705A adopts advanced media conversion technology to meet the demand for today’s growing networking. It is very flexible for the XST-705A to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The XST-705A is provides a diverse choice of fiber connecting types to meet different network applications.
