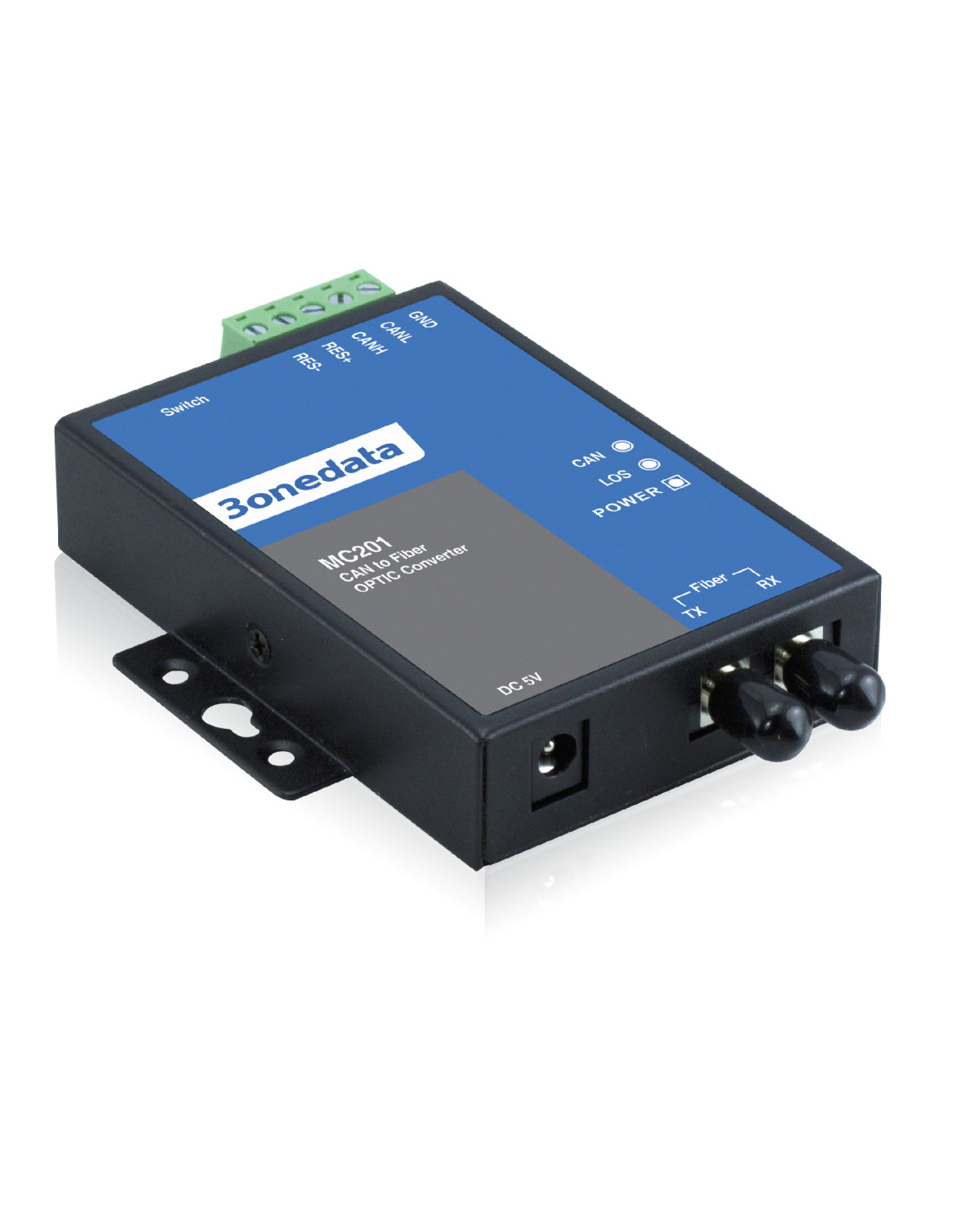

3onedata MC201-F (SSC) Industrial CAN Bus to Fiber Converter, 15km Range, SC/ST/FC, 5VDC, 2kVAC Isolation

MC201-F
Last items in stock
$401.50
Tax included

MC201-F

MC201-F is a CAN bus signal to optical signal converter. It’s specially designed for solving problems like short transmission distance and electromagnetic interference during CAN bus transmission. It supports 1 CAN port to 1 fiber port transparent transmission and adopts wall mounting which can meet the requirements of different scenes.
DIP switch could implement baud rate setting of CAN port. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.

Key Features:

  • Support 1 CAN port to 1 fiber port
  • CAN port supports two options for choosing baud rate, automatic detection and user definition. The range of baud rate is 2.5kbps-1000kbps
  • Data receiving/storing/forwarding could be achieved between 2 CAN networks with different rates when used in pairs
  • It can extend CAN bus transmission distance, the transmission distance of fiber port can reach up to 15km
  • Support -40～75℃ wide operating temperature range
  • Power Supply included

Related Products & Accessories



MC201-F Wall Mounting 1 CAN to Fiber MODEM

Specifications:

Fiber Port
Interface Form SC / ST / FC
Transmission Distance Multimode: 2 km
Single mode: 15 km
Optical Cable Multimode: 50/125μm or 62.5/125μm
Single mode: 8.3/125μm, 8.7/125μm, 9/125μm, 10/125μm
Transmission Wavelength Multimode: 1310nm
Single mode: 1310nm or 1550nm
CAN Interface
Standard CAN2.0A, CAN2.0B
Signal CANH, CANL, GND
Duplex Mode 2-wire Half Duplex
Baud Rate 2.5 kbps – 1000 kbps
Load Capacity Supports 110 concurrent transmitting nodes
Transmission Distance 40 m – 10 km
Interface Form 5-pin 5.08 mm pitch terminal blocks
Terminating Resistor Optional external 120Ω
Interface Protection 2 kVAC isolation protection
LED Indicators
Power supply, Fiber port/Data, CAN port indicators
Power Requirements
Input 5VDC (DC round head)
Power Consumption No-load: 1.39W
Full-load: 1.31W
Environmental Limits
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% – 95% (non-condensing)
Physical Characteristics
Housing Metal, IP40 rated
Installation Wall mounting
Dimensions 69 mm × 22 mm × 100 mm
Industrial Standards
ESD (IEC 61000-4-2) Air: ±8kV
Contact: ±6kV
Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty
3 Years
Installation Type
Wall-mount
