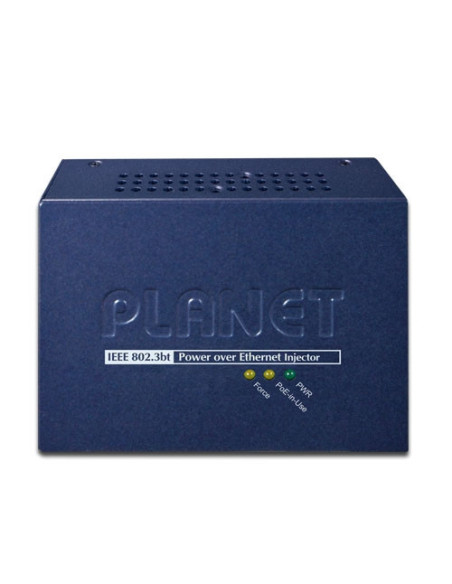

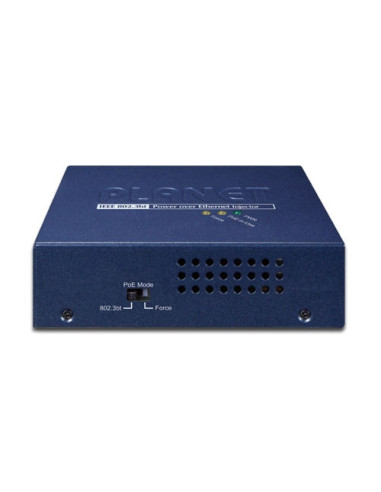

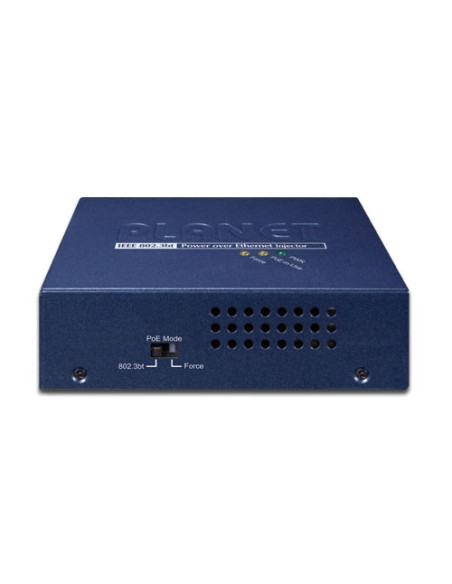

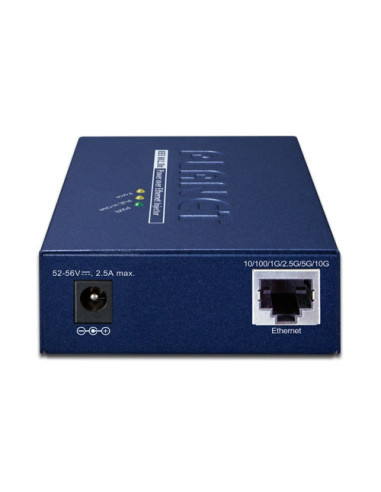

PLANET POE-176-95 Single-Port 10Gbps 95-watt 802.3bt PoE++ Injector
Advanced Multi-Gigabit and 802.3bt PoE++ Network Solution
PLANET POE-176-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.
POE-176-95 - PLANET Single-Port 10Gbps 95-watt 802.3bt PoE++ Injector
The POE-176-95 adopting the IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. In the new 4-pair system, it can offer more PoE applications, such as:
- PoE lighting
- PoE PTZ speed dome camera
- Any network device that needs higher PoE power to work normally
- AIO (All-in-One) touch PC
- Remote digital signage display
The POE-176-95 delivers the Ethernet digital data with DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-173S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.
Intelligent LED Indicator for PoE Mode and Real-time PoE Usage
The POE-176-95, when switched to the Force mode, provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. The Force LED will turn on when the Force mode is enabled, it can power on the PD with a maximum of 60 watts.

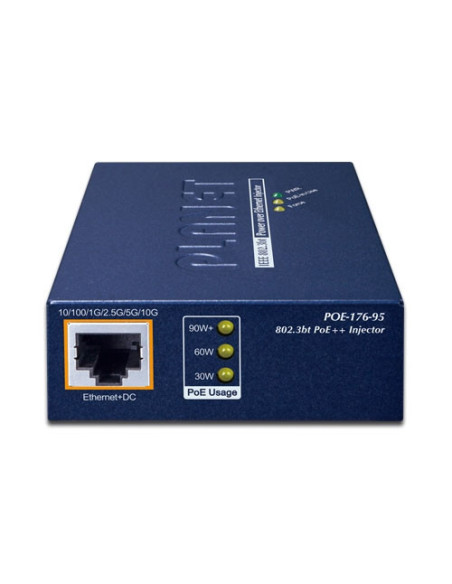

Moreover, the POE-176-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-176-95 has three LED indicators of different power usages. Via the power usage LED, the POE-176-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.
95 Watts of Power over 4-pair UTP
In the new 4-pair system with IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the POE-176-95 provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.
All-in-One and Compact Size Design
It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-176-95 comes in compact housing, and provides one 52~56V DC input power jacket, one power LED, PoE-in-use LED and Force LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-176-95 is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.
Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af/at PoE standards, the POE-176-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-176-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
Installation of 802.3bt PoE Injector
Due to the backward capability of IEEE 802.3af/at PoE standard, the POE-176-95 can directly connect with any IEEE 802.3af/at end-nodes, such as PTZ speed dome IP cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.
Installation of 802.3bt PoE Injector and Splitter
For a place which is hard to find the power inlet, the POE-176-95 and POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ network cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.
Extended Installation of IEEE 802.3bt Injector and PoE Network
Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the POE-176-95 and PLANET PoE Extender, POE-E304, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-176-95. The POE-176-95 delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.

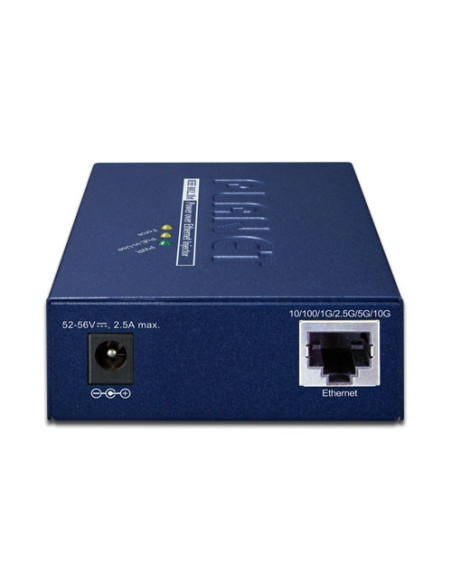

1 x RJ45 STP Data In
1 x RJ45 STP PoE (Data + Power) Out
1 x 52~56V DC input socket
|Network Cable*||Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7
5G: 4-pair UTP Cat 6/Cat 6A/Cat 7
10G:4-pair UTP Cat 6A/Cat 7
|LED Indicators||System: Power x 1 (Green)
PoE Port: PoE-in-Use x 1 (Amber)
Force Mode: Force x 1 (Amber)
PoE Usage: PoE Usage x 3 (Amber)
|Dimensions (W x D x H)||94 x 70.3 x 26.2 mm|
|Unit Output Voltage||DC 52~56V|
|Power Requirements||DC 52-56V, 2.5A max|
|Power Consumption||103 watts max.|
|No. of Devices that can be powered||1|
|Power over Ethernet|
|PoE Standard||IEEE 802.3af/at/bt PSE|
|PoE Power Output Budget||DC 54V/30-watt PoE via 2-pair
DC 54V/60-watt PoE via 4-pair
54V/95-watt PoE via 4-pair
|PoE Power Output||Max. 86.8W for 1 m cable
Max. 72W for 100 m cable
|PoE Power Supply Type||End-span + Mid-span|
|Power Pin Assignment||Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
|PoE Mode||802.3bt: To provide power to the PD devices that follow the IEEE 802.3af/at/bt standard.
Force: When the Force mode is enabled, it will provide PD with max. 60W.
|Standards Compliance||IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G/10GBASE-T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet (Type 4)
|Regulatory Compliance||FCC Part 15 Class A, CE|
|Operating Temperature||0 ~ 50 degrees C|
|Storage Temperature||-10 ~ 70 degrees C|
|Operating Humidity||5 ~ 90%, relative humidity, non-condensing|
|Storage Humidity||5 ~ 90%, relative humidity, non-condensing|
