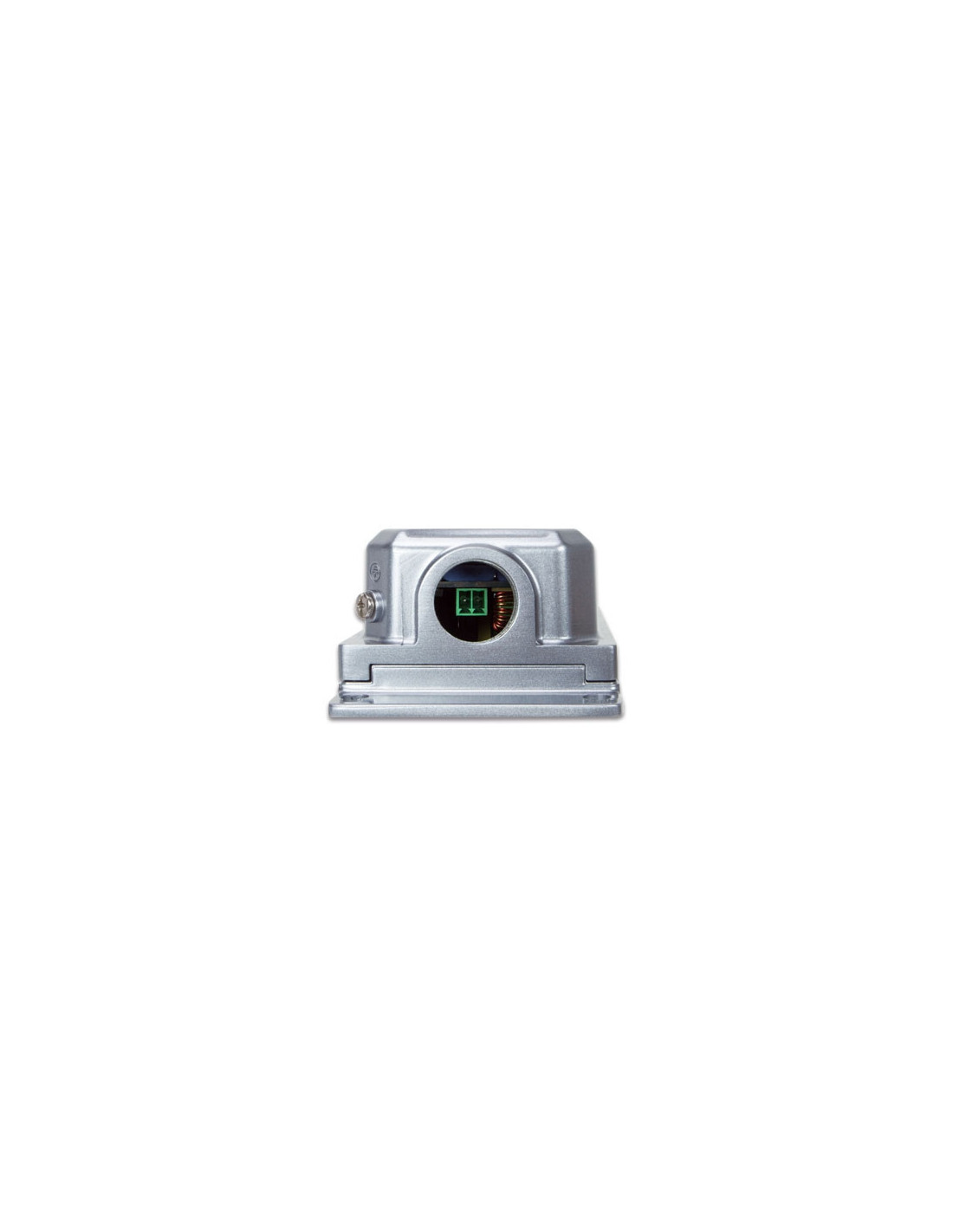

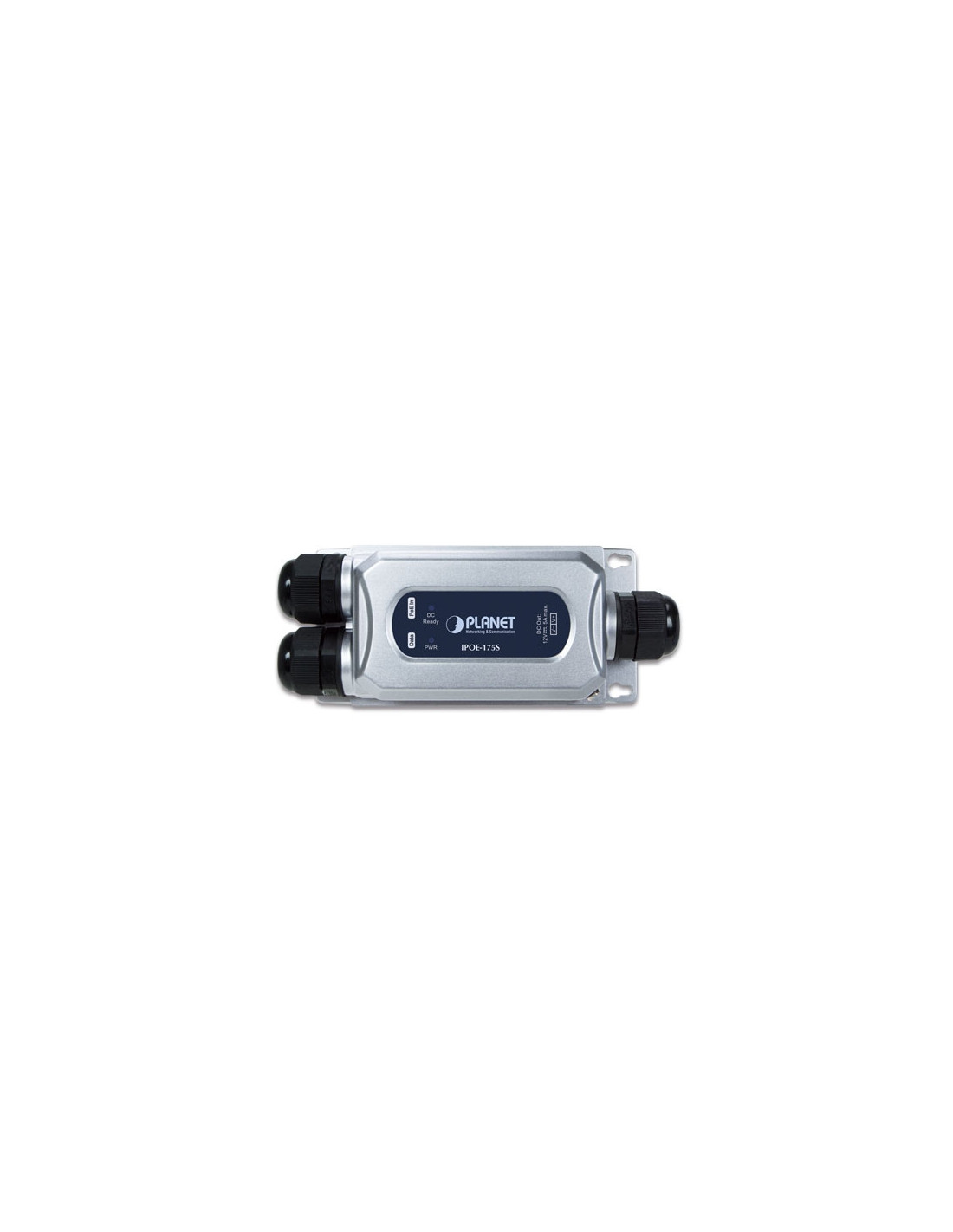

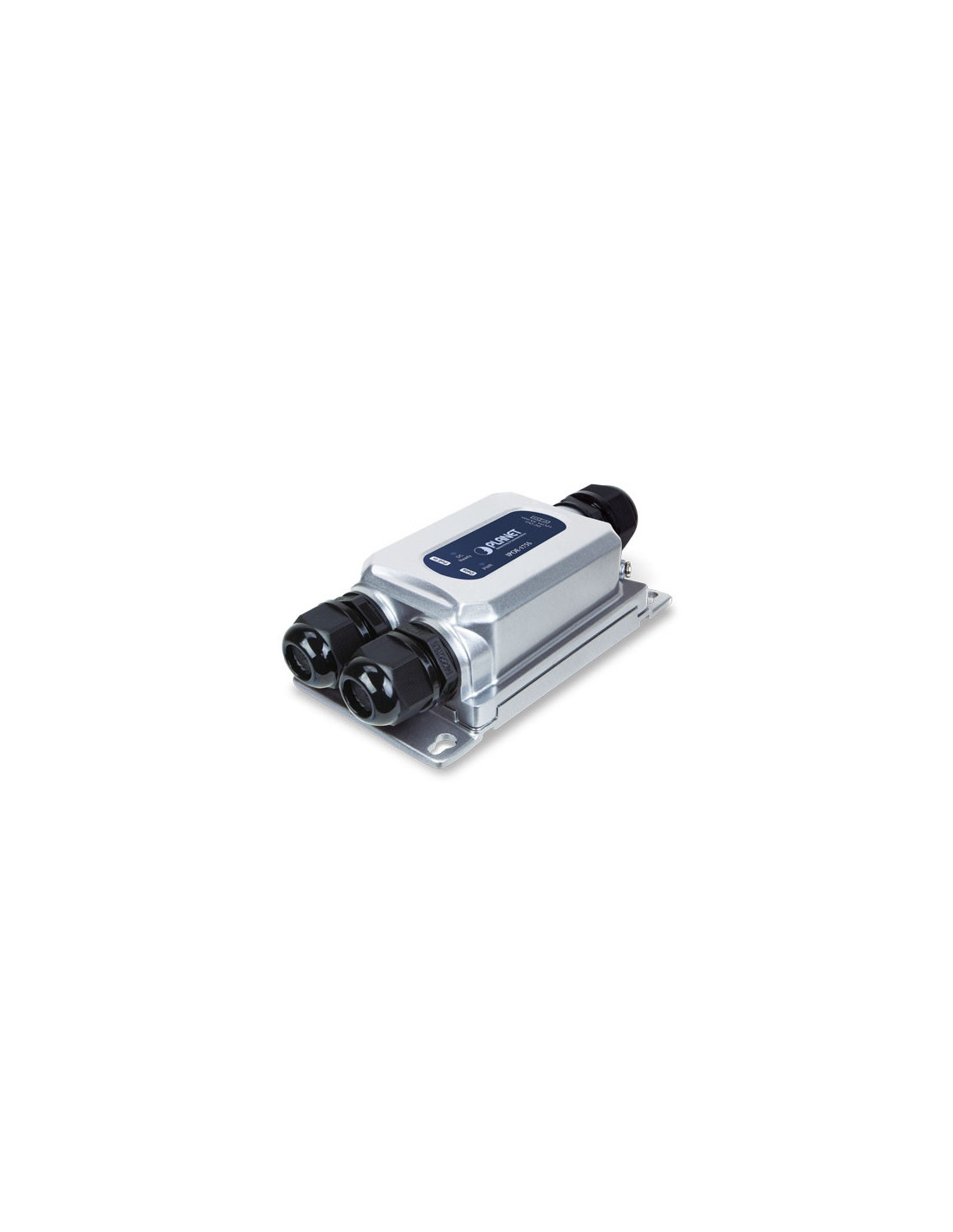

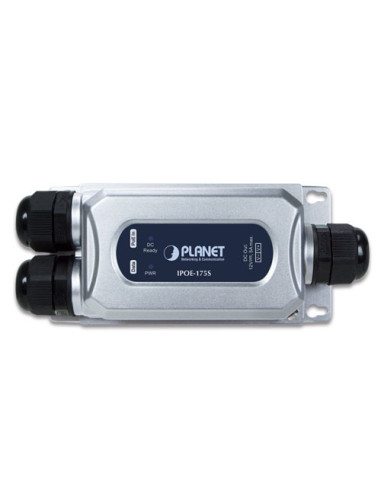

PLANET IPOE-175S Industrial IP67 802.3bt PoE++ Splitter (DC 12V, -40~75 degrees C)
Highly Convenient and Robust Industrial PoE++ Splitter
To fulfill the growing outdoor PoE applications, PLANET IPOE-175S is an Industrial-grade, IP67-rated 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ PSE (power source equipment) over a UTP cable. It enables to deliver of a maximum of 60-watt 12V DC power output to a non-PoE powered Ethernet device. Also, supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.
The IPOE-175S is designed to work under the operating temperature range from -40 to 75 degrees C. It's an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets, and electrical cabling in the industrial environment.
Quick and Easy 802.3bt PoE++ Network Deployment
If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-175S, powered by an 802.3 PoE++ power sourcing equipment, can feed the PDs with 802.3bt PoE++ as the splitter can split the data and power into two streams. The PDs get their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into a PoE++ environment with the IPOE-175S:
PTZ speed dome camera
AIO (All-in-One) touch PC
Remote digital signage display
Non-PoE network devices that need higher power to work normally

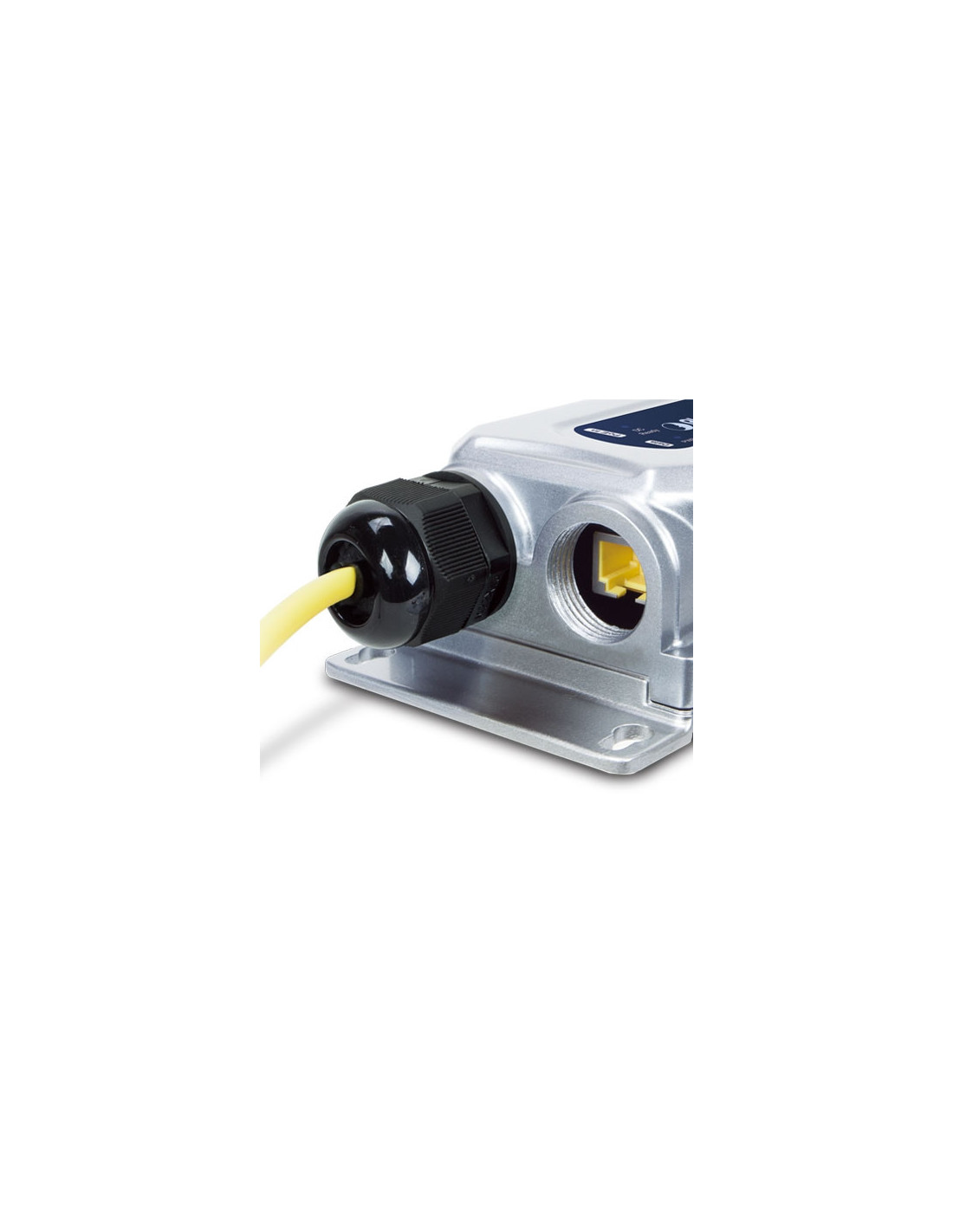

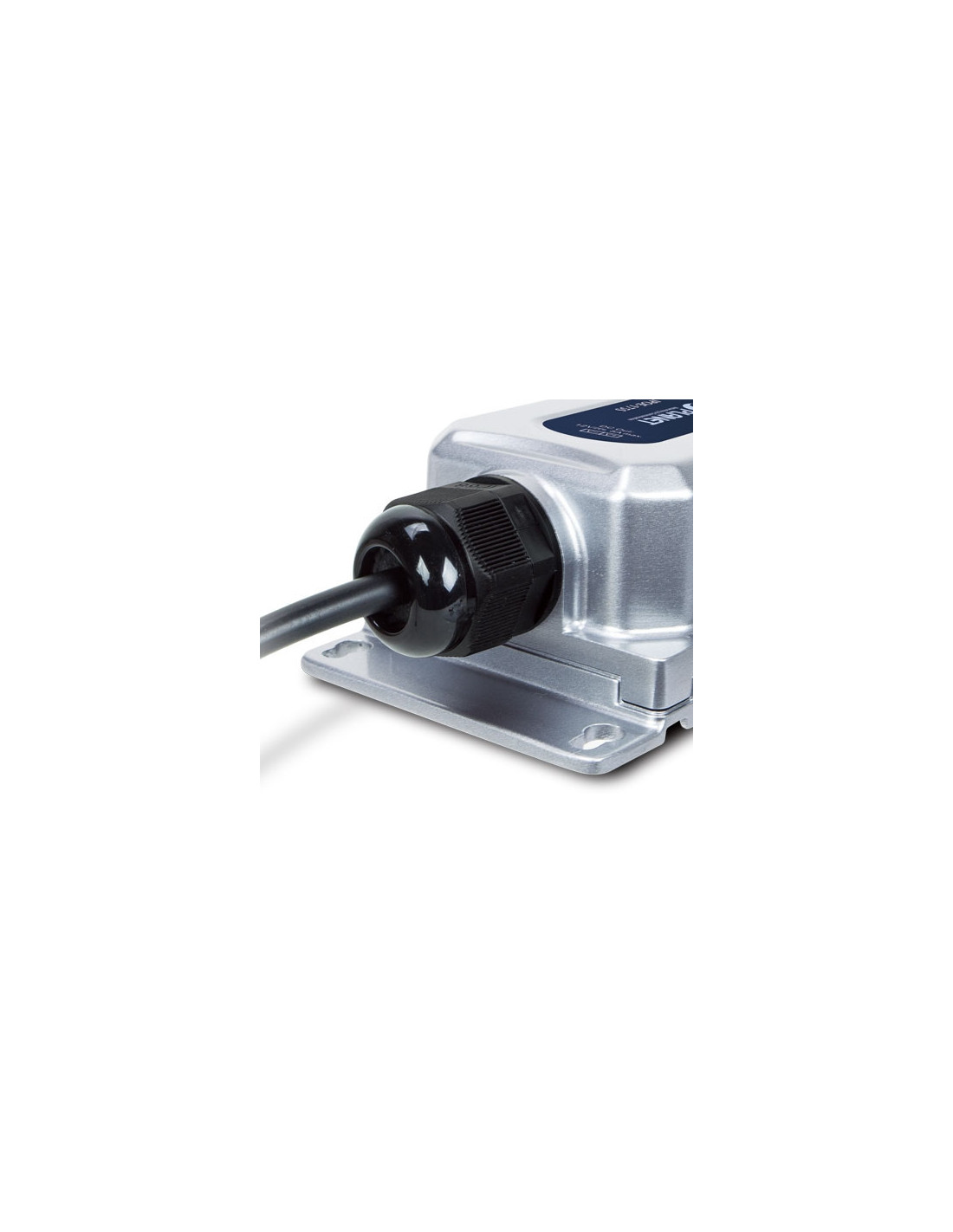

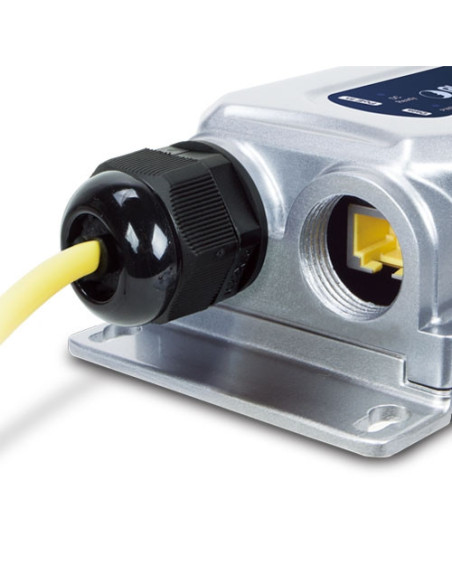

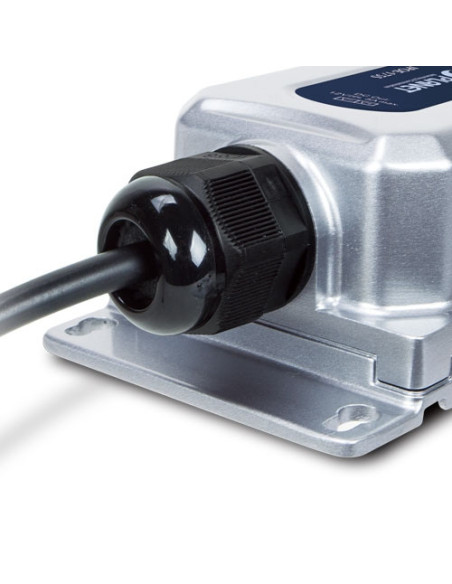

Weather-proof RJ45 Ethernet Connector and Shielded Plug
The IPOE-175S is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more. The IPOE-175S is equipped with 3 waterproof cable glands for direct-attach applications. Assembled with a waterproof cable gland, it can make the general connector weather-proof and provides a tight and strong connection. Moreover, it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.
With an industrial-level IP67-rated aluminum case, the IPOE-175S provides a high level of immunity against electromagnetic interference, and can protect itself from dust and water ingress, and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.
The IPOE-175S provides ±8KV DC for Ethernet ESD protection and ±6KV surge immunity to improve product stability and protects users' networks, making sure the flow of operation does not fluctuate.
Making Network Easier and More Reliable
The space-saving industrial 802.3bt PoE++ splitter IPOE-175S can be placed in almost any difficult environment. It allows either DIN-rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-175S is the ideal product for co-working with an industrial 802.3bt PoE++ type-4 injector that can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.
IPOE-175S - PLANET Industrial IP67 802.3bt PoE++ Splitter (DC 12V, -40~75 degrees C)
802.3bt PoE++ Switch and Splitter Installation
For a place which is hard to find the power inlet, the IPOE-175S separates digital data and power into outputs (12V DC) to non-PoE devices such as laptops, PTZ (pan, tilt & zoom) IP cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
IEEE 802.3bt Injector and Splitter Installation
For a place which is hard to find the power inlet, the IPOE-175 and IPOE-175S can operate as a pair to provide the easiest way to power the above-mentioned Ethernet devices that need high power consumption for any applications designed for large industries, enterprises and communities.

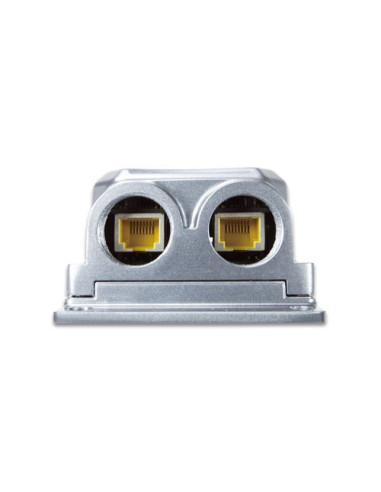

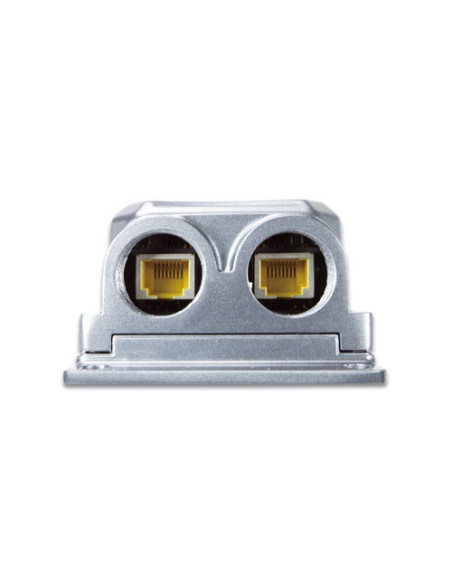

• Two 10/100/1000BASE-T Gigabit RJ45 ports
- 1-port Data + Power input
- 1-port Data output

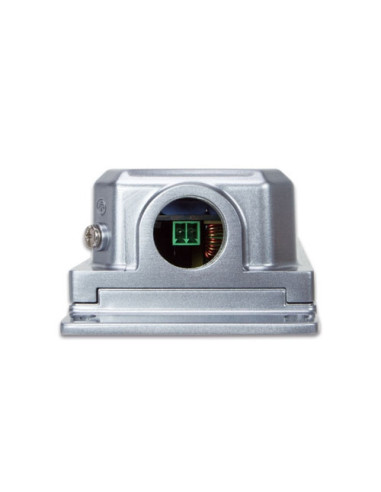

• One 2-pin terminal block for power output. (12V DC, 5A)
Power over Ethernet
• 1-port data + power output
- Complies with IEEE 802.3bt Power over Ethernet plus plus PD
- Compatible with IEEE 802.3at PoE+ PSE and IEEE 802.3bt PoE++ PSE
- Provides DC 12V power over 2-pin terminal block to device with Ethernet port
- Supports total PoE budget up to 60 watts for PoE output port
- Remote power feeding up to 100m (From PSE to the splitter)
Industrial Case and Installation
• IP67-rated and IK10-rated aluminum case

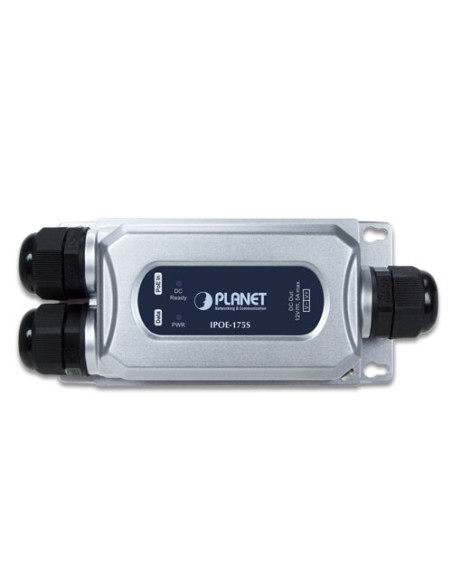

• LED indicators for power LED and DC Ready
• Wall-mount design
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Plug and Play installation
