PLANET Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub
Compact and Robust Industrial 802.3bt PoE++ Network Solution

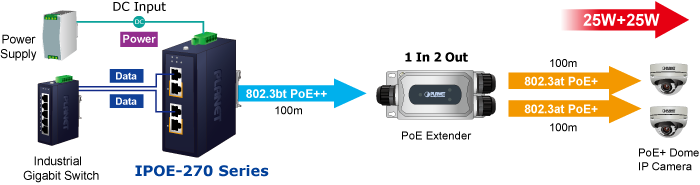

PLANET IPOE-270 2-port mid-span industrial IEEE 802.3bt PoE++ injector hub series features two 10/100/1G/2.5G/5GBASE-T 90-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 180 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).
- POE Ports
- 2, 2
- Power Input
- DC
- Device Type
- Power Over Ethernet
- Device Features
- Industrial
- Power Over Ethernet
- 48V 30W 802.3at, 48V 15W 802.3af
- Ethernet Ports
- 2, 2
- Environment Temperature
- -40℃~75℃
Hardware SpecificationsCopper Ports2-pair 10/100/1G/2.5G/5GBASE-T RJ45 :
■ Data input port 1 and PoE output port 1
■ Data input port 2 and PoE output port 2ConnectorRemovable 4-pin terminal block

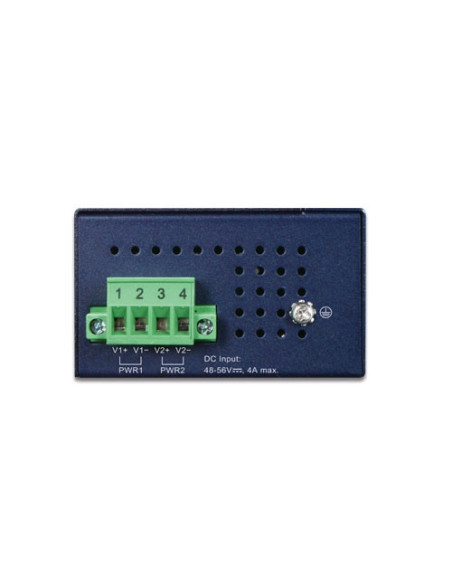

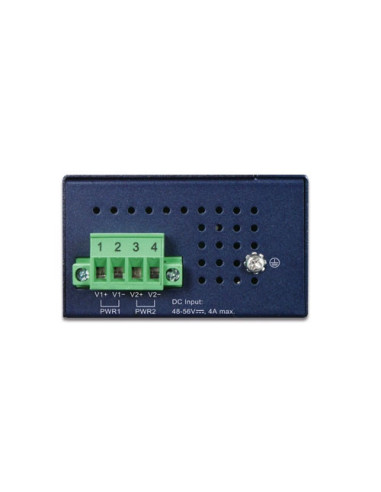

Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2LED IndicatorSystem:
Power 1 (Green)
Power 2 (Green)
PoE Usage:
60W/120W/180W (Amber)

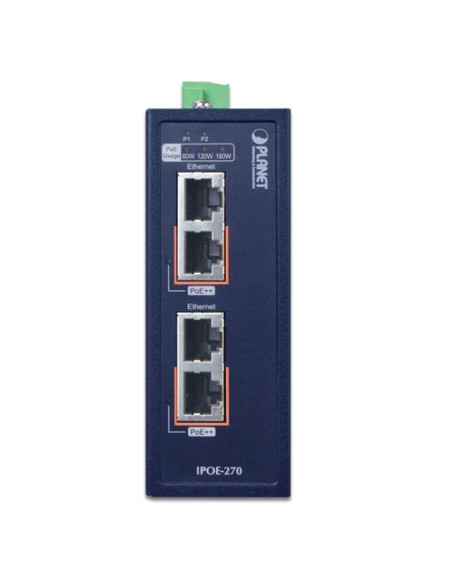

802.3bt PoE++ Port:
PoE-in-use x 1 (Amber)Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A,7Data Rate10/100/1000/2500/5000MbpsPower RequirementsIPOE-270: 48~56V DC, redundant power with reverse polarity protection
IPOE-270-12V: 12~56V DC, redundant power with reverse polarity protectionPower Consumption (Ethernet Full Loading)IPOE-270:
System ON without loading
48V DC: 1.4 watts/4.7BTU
52V DC: 1.5 watts/5.1BTU
54V DC: 1.6 watts/5.4BTU
56V DC: 1.6 watts/5.4BTU
Full loading with PoE
48V DC (120W PoE budget): 128 watts/436BTU
52V DC (180W PoE budget): 177 watts/603BTU
54V DC (180W PoE budget): 187 watts/638BTU
56V DC (180W PoE budget): 185 watts/631BTU
IPOE-270-12V:
System ON without loading
12V DC: 1.8 watts/6.1BTU
24V DC: 2.4 watts/8.1BTU
48V DC: 2.4 watts/8.1BTU
52V DC: 2.6 watts/8.8BTU
54V DC: 2.1 watts/7.1BTU
56V DC: 2.2 watts/7.5BTU
Full loading with PoE
12V DC (60W PoE budget): 60 watts/204BTU
24V DC (120W PoE budget): 124 watts/423BTU
48V DC (120W PoE budget): 120 watts/409BTU
52V DC (180W PoE budget): 188 watts/641BTU
54V DC (180W PoE budget): 188 watts/641BTU
56V DC (180W PoE budget): 184 watts/627BTUDimensions41 x 70 x 115 mm (W x D x H)WeightIPOE-270: 284g

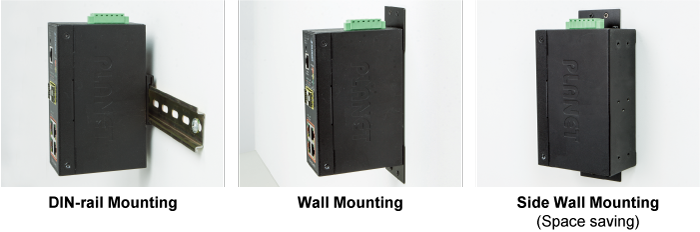

IPOE-270-12V: 387gEnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount kitESD Protection6KVSurge Protection6KVPower over EthernetPoE StandardIEEE 802.3bt PoE++, 4-pair PSE
Compatible with IEEE 802.3at PoE+ PSEPoE Power Supply TypeEnd-span + Mid-spanPower Pin AssignmentEnd-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)PoE Power Budget (max.)IPOE-270:
120W@48V DC input
180W@52V /54V/56V DC input
IPOE-270-12V:
60W@12V DC input
120W@24V/48V DC input
180W@52V /54V/56V DC inputNumber of devices that can be powered2Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus PlusEnvironmentTemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees CHumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
