PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub

IPOE-270-12V
In Stock
$270.00
Tax included

Compact and Robust Industrial 802.3bt PoE++ Network Solution

PLANET IPOE-270 2-port mid-span industrial IEEE 802.3bt PoE++ injector hub series features two 10/100/1G/2.5G/5GBASE-T 90-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 180 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

Power Supply Options
  • -
  • PWR-60-24 (+$73)
  • PWR-75-24 (+$75)
  • PWR-120-48 (+$99)
  • PWR-240-48 (+$135)
  • PWR-480-48 (+$190)

Quantity Price You Save
4 $259.20 Up to $43.20


The IPOE-270 series provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

The IPOE-270 series includes two models: IPOE-270 and IPOE-270-12V.

Model DC Redundant Power Input PoE Standard  PoE Budget
IPOE-270 48~56V DC IEEE 802.3bt PoE++ 180 watts
 IPOE-270-12V  12~56V DC 180 watts



802.3bt PoE++ Meets High Power Demands of Powered Devices

As the IPOE-270 series adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 90 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings

 Quick and Easy 802.3bt/at PoE Network Deployment

The IPOE-270 series is installed between a regular Ethernet Switch and the PDs. Two ports are network (Ethernet) ports for data input while the other two ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the IPOE-270 series can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Intelligent LED Indicator for Power Input and Real-time PoE Usage

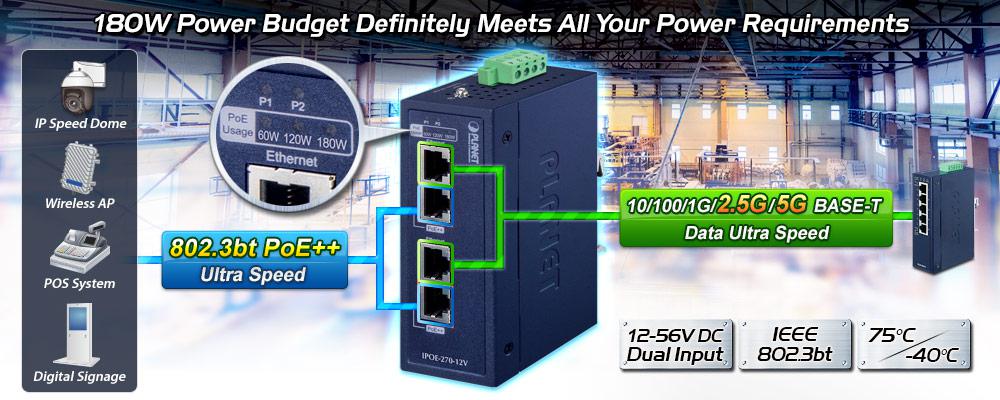

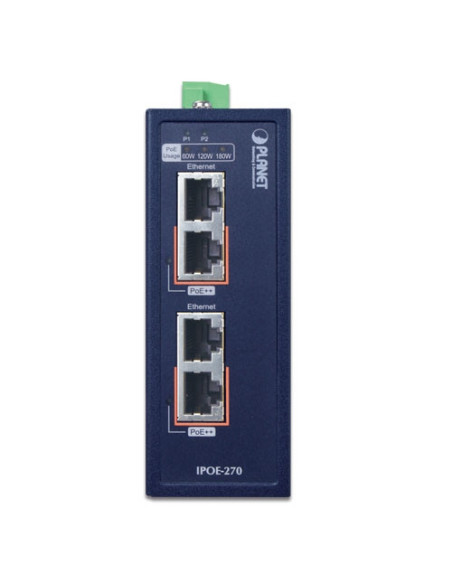

The IPOE-270 series helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-270 series has three amber LED indicators of different power usages indicating 60W, 120W and 180W. Via the power usage LED, the IPOE-270 series enables the administrator to monitor the status of the power usage of the connected PDs in real time.

Convenient and Reliable Power System

To facilitate the 802.3bt PoE++ usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the IPOE-270-12V adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

High Power Budget for PoE Extension

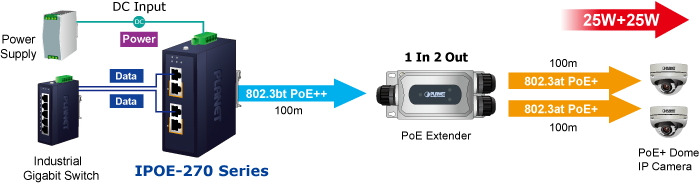

With up to 90-watt PoE output capability, the IPOE-270 series can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.

Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-270 series provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.

The IPOE-270 series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network.

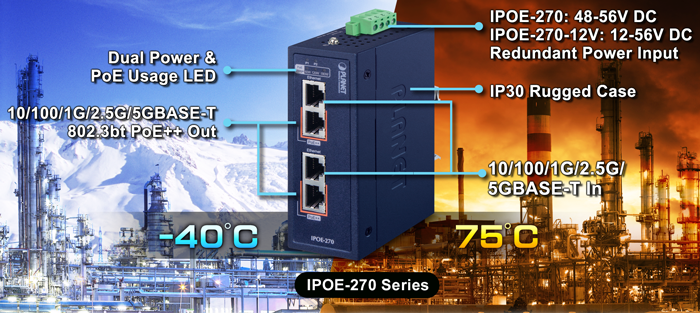

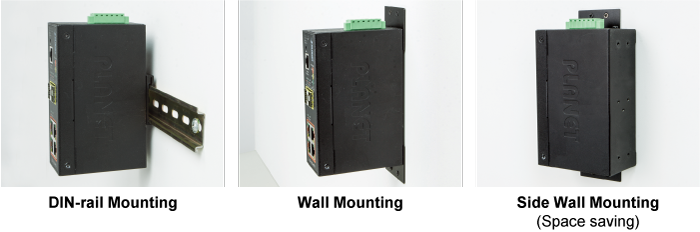

The IPOE-270 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environment.

POE Ports
2, 2
Power Input
DC
Device Type
Power Over Ethernet
Device Features
Industrial
Power Over Ethernet
48V 30W 802.3at, 48V 15W 802.3af
Ethernet Ports
2, 2
Environment Temperature
-40℃~75℃
No reviews

Hardware SpecificationsCopper Ports2-pair 10/100/1G/2.5G/5GBASE-T RJ45 :
■ Data input port 1 and PoE output port 1

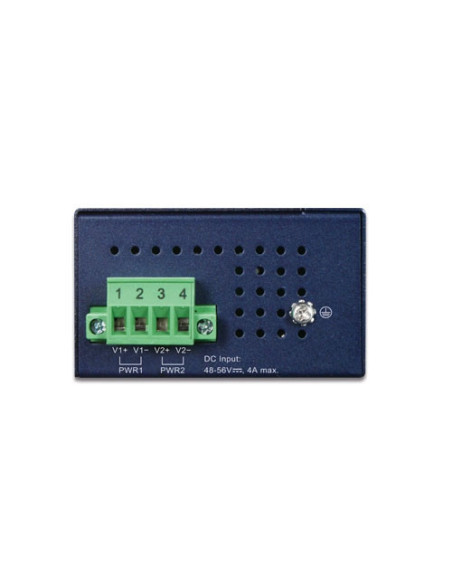

■ Data input port 2 and PoE output port 2ConnectorRemovable 4-pin terminal block
Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2LED IndicatorSystem:
 Power 1 (Green)
 Power 2 (Green)
PoE Usage:
 60W/120W/180W (Amber)
802.3bt PoE++ Port:
 PoE-in-use x 1 (Amber)Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A,7Data Rate10/100/1000/2500/5000MbpsPower RequirementsIPOE-270: 48~56V DC, redundant power with reverse polarity protection
IPOE-270-12V: 12~56V DC, redundant power with reverse polarity protectionPower Consumption (Ethernet Full Loading)IPOE-270:
System ON without loading
 48V DC: 1.4 watts/4.7BTU
 52V DC: 1.5 watts/5.1BTU
 54V DC: 1.6 watts/5.4BTU
 56V DC: 1.6 watts/5.4BTU
Full loading with PoE
 48V DC (120W PoE budget): 128 watts/436BTU
 52V DC (180W PoE budget): 177 watts/603BTU
 54V DC (180W PoE budget): 187 watts/638BTU
 56V DC (180W PoE budget): 185 watts/631BTU

IPOE-270-12V:
System ON without loading
 12V DC: 1.8 watts/6.1BTU
 24V DC: 2.4 watts/8.1BTU
 48V DC: 2.4 watts/8.1BTU
 52V DC: 2.6 watts/8.8BTU
 54V DC: 2.1 watts/7.1BTU
 56V DC: 2.2 watts/7.5BTU
Full loading with PoE
 12V DC (60W PoE budget): 60 watts/204BTU
 24V DC (120W PoE budget): 124 watts/423BTU
 48V DC (120W PoE budget): 120 watts/409BTU
 52V DC (180W PoE budget): 188 watts/641BTU
 54V DC (180W PoE budget): 188 watts/641BTU
 56V DC (180W PoE budget): 184 watts/627BTUDimensions41 x 70 x 115 mm (W x D x H)WeightIPOE-270: 284g
IPOE-270-12V: 387gEnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount kitESD Protection6KVSurge Protection6KVPower over EthernetPoE StandardIEEE 802.3bt PoE++, 4-pair PSE
Compatible with IEEE 802.3at PoE+ PSEPoE Power Supply TypeEnd-span + Mid-spanPower Pin AssignmentEnd-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)PoE Power Budget (max.)IPOE-270:
120W@48V DC input
180W@52V /54V/56V DC input

IPOE-270-12V:
60W@12V DC input
120W@24V/48V DC input
180W@52V /54V/56V DC inputNumber of devices that can be powered2Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus PlusEnvironmentTemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees CHumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
