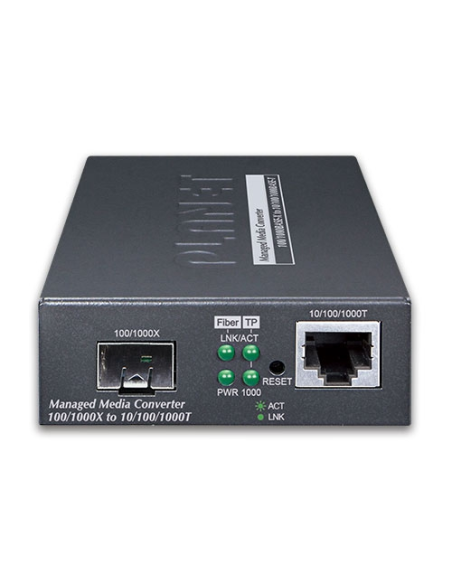

PLANET GT-915A 10/100/1000BASE-T to 100/1000BASE-X SFP Managed Media Converter

Last items in stock
Tax included


Remotely Managed Gigabit Converter

PLANET GT-915A 10/100/1000BASE-T to 100/1000BASE-X Managed Media Converter is developed to meet the advanced demand of network applications but it comes with the easy Plug and Play feature. The GT-915A provides all kinds of 10/100/1000Mbps Ethernet Media on RJ45 port and offers highly-stable Gigabit SFP fiber performance. It supports conversion between 10/100/1000BASE-T and 100/1000BASE-X Ethernet, which includes SFP slot with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.


GT-915A - PLANET 10/100/1000BASE-T to 100/1000BASE-X SFP Managed Media Converter

Enhanced Smart Management Features

The GT-915A provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

  • LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
  • LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission.

Therefore, the GT-915A greatly supports the administrators to manage the network efficiently.


Network with Cybersecurity Helps Minimize Security Risks

The GT-915A comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGT-900-Series protects the management and enhances the security of the mission-critical network without any extra deployment cost and effort.


User-friendly and Centralized Web Management Interface
For efficient management, the GT-915A is equipped with a remote Web/SNMP interface. With its built-in Web-based management, PLANET GT-915A acts as an easy-to-use, platform-independent management and configuration facility. The GT-915A also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software.


OAM Management
TS-1000/802.3ah OAM protocol (operation, administration, and maintenance) supported enables remote OAM compliant device to be managed and monitored by the GT-915A.


Remotely Manage Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer App support IT staff to remotely manage all network devices and monitor the GT-915A operation statuses. Thus, they're designed for both the enterprises and industries where deployments of the GT-915A can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.


Enhanced Traffic Control
The GT-915A can be programmed for advanced management functions such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q tag VLAN, Q-in-Q VLAN, ingress/egress bandwidth control, QoS and Layer protocol filter, and broadcast storm and bandwidth control to enhance bandwidth utilization.


Intelligent SFP Diagnosis Mechanism
The GT-915A supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Easy Chassis Installation
The GT-915A Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R series). The media chassis can assist in providing DC power to the GT-915A Media Converter to maintain the fiber-optic network at one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space.

Fiber-optic Networking for ISPs, Enterprises and Homes
With high-speed data transmission and easy installation, the GT-915A can build FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises. The GT-915A enables network administrators to easily monitor operations via the Web management interface.

Hardware Specifications
Copper Interface 1 x 10/100/1000BASE-T RJ45 port (Auto-MDI/MDI-X) twisted pair
Fiber Interface 1 x 100/1000BASE-X SFP Slot
Reset Button < 10 sec: System reboot
> 10 sec: Factory default
ESD Protection 6KV DC
Enclosure Compact-sized metal case
Installation Wall mountable
Media convert Chassis installation
Optional DIN-rail kit
Dimensions (W x D x H) 94 x 70 x 26mm
Weight 201g (device only)

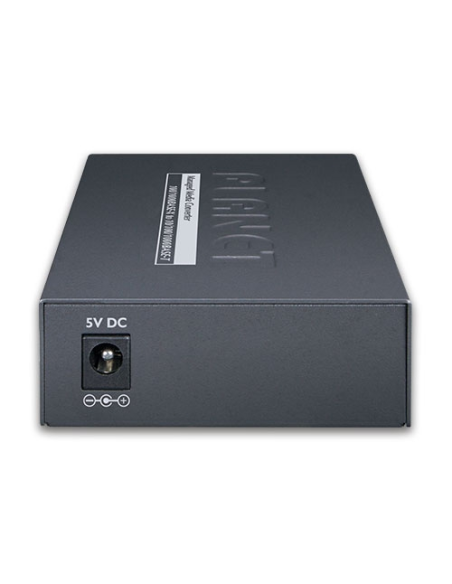

Power Input DC 5V, 2A
Power Consumption 3.4 watts/11.6 BTU (maximum)
LED Indicator PWR, (Green)
TP LINK/ACT, 1000 (Green)
Fiber LINK/ACT (Green)
Network Cables 10/100/1000BASE-T:
 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m
 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m
 1000BASE-T: 4-pair STP Cat 5 up to 100m

 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m.
 9/125μm single-mode cable, extending long distance to 10/20/40/60/80/120km (vary on
 fiber transceiver or SFP module)
Switching Specifications
Switch Processing Scheme Store and Forward
Fabric 4Gbps
Throughput (packet per second) 2.98Mpps@64bytes
Address Table 1K entries, automatic source address learning and aging
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame 16K
Shared Buffer 512Kb
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Up to 16 VLAN groups, out of 4094 VLAN IDs
Management VLAN
Bandwidth Control Per port bandwidth control
 Ingress: 1~1000,000Kbps
 Egress: 1~1000,000Kbps
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
Traffic classification:
 802.1p priority
 IP Address
Security Function
Access Security Remote management protocols control by SSH, Telnet, HTTP ans HTTPs
System Management
Basic Management Interfaces Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote syslog
Local system log
SNMP trap
Standards Conformance
Regulatory Compliance FCC Class A, CE Class A
Standards Compliance IEEE 802.3, 10BASE-T
IEEE 802.3u, 100BASE-TX/FX
IEEE 802.3ab, 1000BASE-T
IEEE 802.3z, 1000BASE-SX/LX
IEEE 802.3x full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
RFC 791 IP
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Device Type
Media Converter
Connector Type
SFP Ports
Power Input
Yes, 1G SFP
Ethernet Ports
