PLANET GPL-8000 8-Port GPON OLT with 4-Port Gigabit TP/SFP Combo + 4-Port 1000X SFP + 4-Port 10G SFP+

Last items in stock
Tax included


Unlike devices from other manufacturers, Planet's GPL-8000 OLT is locked to any particular brand of ONU devices

High-performance GPON for FTTx Applications

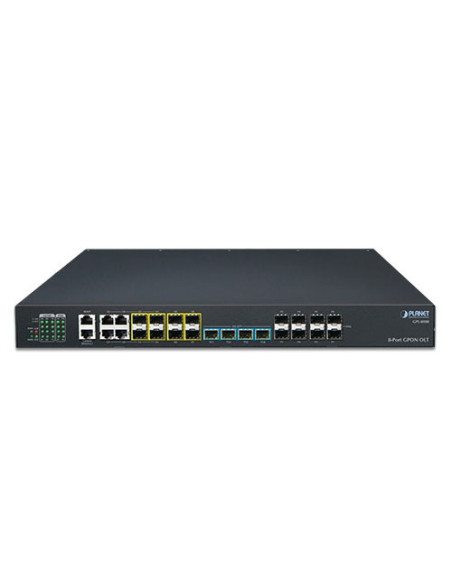

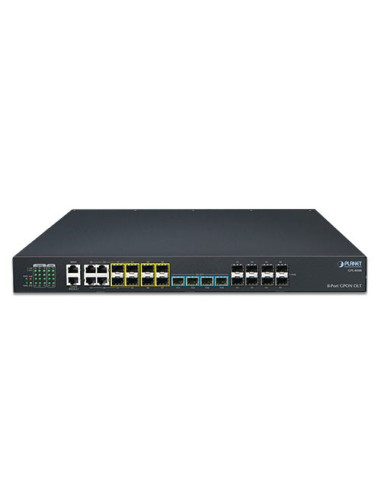

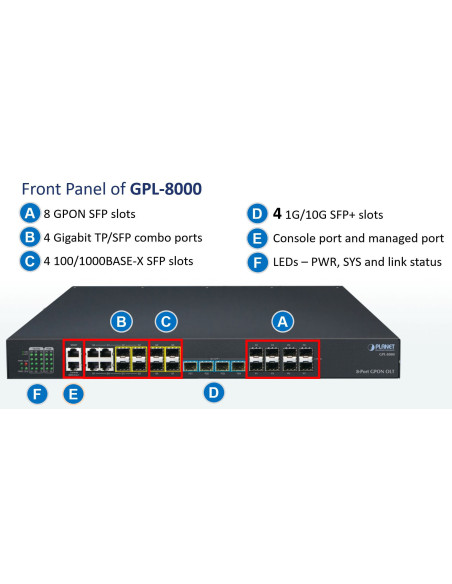

PLANET GPL-8000 GPON Optical Line Terminal (OLT) consists of eight GPON ports, four Gigabit TP/SFP combo ports, four Gigabit SFP ports, four 10G SFP+ ports and one management port. It complies with ITU-T G.984/G.988 and meets the requirements about GPON OLT in network access technical requirements.

It is easy to install and maintain a GPON deployment up to 1024 ONU and HGU devices, providing highly-effective GPON solutions and convenient management for fiber optic broadband network.


GPL-8000 - PLANET 8-Port GPON OLT with 4-Port Gigabit TP/SFP Combo + 4-Port 1000X SFP + 4-Port 10G SFP+

Unlike devices from other manufacturers, Planet's GPL-8000 OLT is locked to any particular brand of ONU devices

High-speed and Long-distance Coverage for Triple Play Services

The GPL-8000 provides a high bandwidth of up to 2.5Gbps for downstream and 1.25Gbps for upstream, long-distance coverage of up to 20km between equipment nodes, and flexibility for network deployment. It is a cost-effective access technology with reliable and scalable network for triple-play service applications such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia.

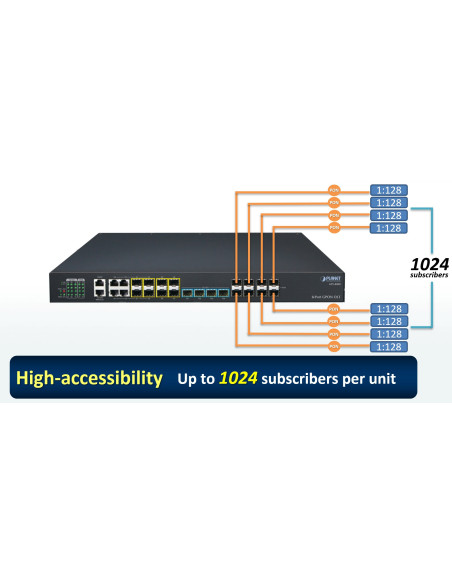

High Split Ratio for a Cost-effective Network Solution

The GPL-8000 is an ideal solution for FTTx applications. It helps to minimize the investment cost for carriers by offering a high split ratio of 1:128 per port and supporting the usage of PLANET ONUs. The GPL-8000 provides strong functionalities for Ethernet features such as VLAN, Dynamic Bandwidth Allocation (DBA), Service Level Agreement (SLA) and Access Control List. GPON protocol allows a Gigabit Ethernet communications fiber to be shared by multiple end users using a passive optical splitter.

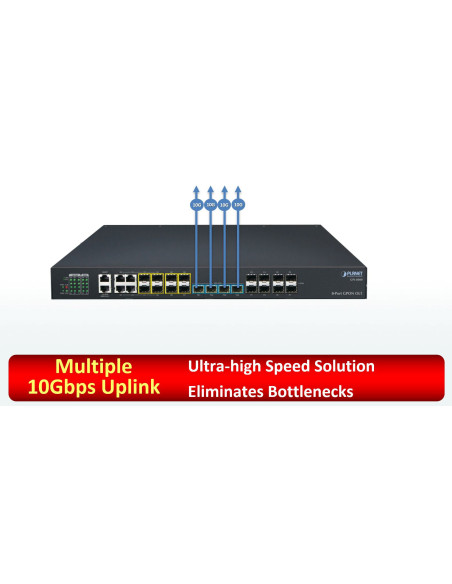

Flexible and Extendable 10Gb Ethernet Solution

The GPL-8000 has four 10G SFP+ uplink ports to deliver ultra-high speed networking over long distances to service providers. Each of the 10G SFP+ slots supports dual speed and 10GBASE-SR/LR or 1000BASE-SX/LX. With its 4 ports, 10G Ethernet link capability and additional 8-port 1G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The GPL-8000 provides broad bandwidth and powerful processing capacity for FTTx applications for distribution data link.

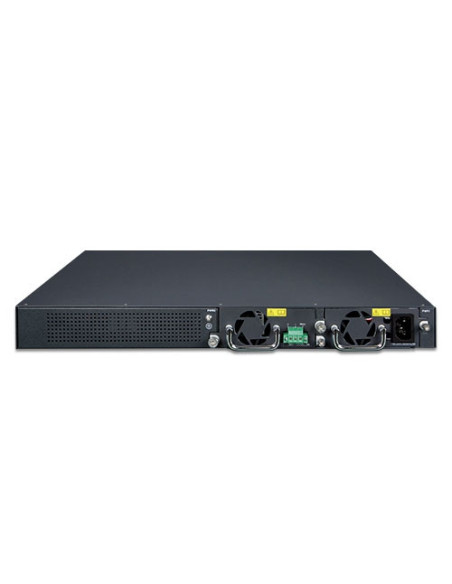

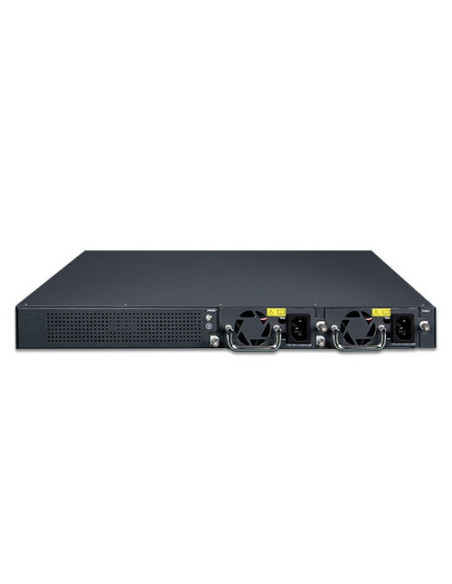

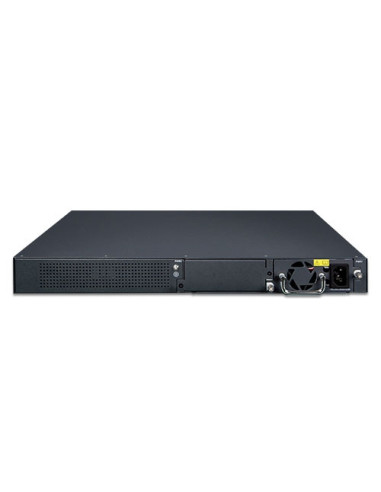

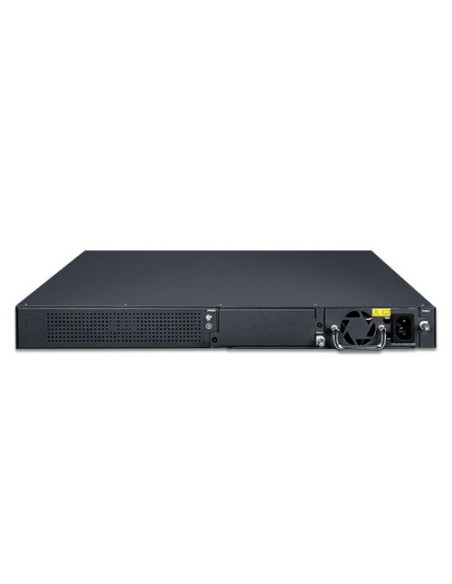

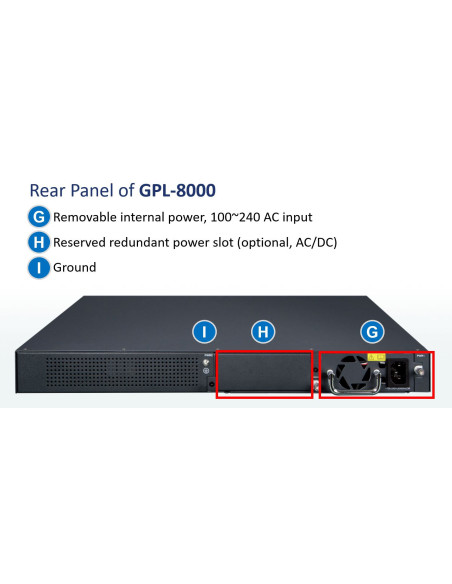

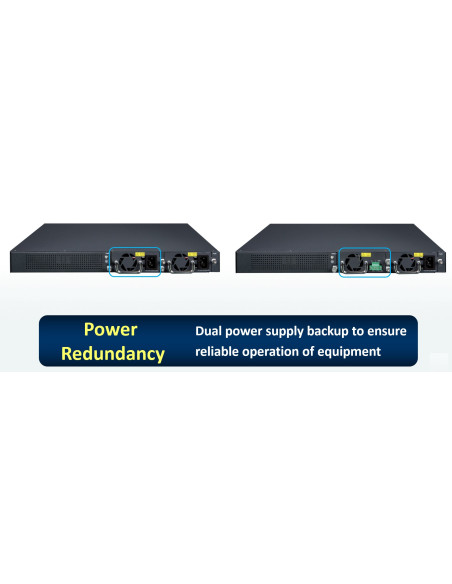

Extractive Power Supply Design to Increase Flexibility

The GPL-8000 is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the GPL-8000 reserves another backup power slot on the rear panel and users can add the second AC or DC power to the redundant power supply installation. The AC power or DC power is optional. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

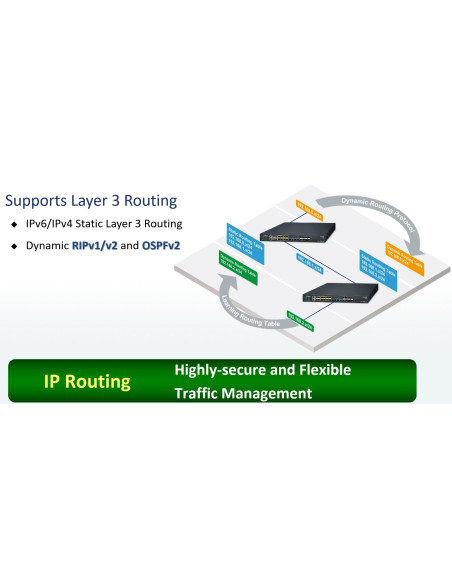

Layer 3 Routing Support

The GPL-8000 enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

  • The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
  • The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Robust Layer 2 Features

The GPL-8000 can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q and GVRP Protocol. In addition, the number of VLAN interfaces is 4K. By supporting port aggregation, the GPL-8000 allows the operation of a high-speed trunk combined with multiple ports. It enables up to 32 groups for trunking with a maximum of 8 ports for each group.

Efficient and Secure Management

For efficient management, the GPL-8000 is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GPL-8000 offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the GPL-8000 offers secure remote management by supporting SSHv2, TLSv1.0 and SSLv3 connection which encrypts the packet content at each session.

Cost-effective, Long-distance and High-bandwidth Triple Play or Surveillance Applications

PLANET GPL-8000 delivers high-speed voice, data and video services to residential and business subscribers. With the PON technology, the GPL-8000 offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs from the reduction of “active” components, support of up to 20km distance between equipment nodes, easy Installation and maintenance, and most importantly, offering of much greater bandwidth.

The GPL-8000 is the perfect solution for triple play or surveillance applications by offering benefits of cost-effectiveness, scalability and flexibility to network deployment.

Product Features:

  • PON interface complies with ITU G.984
  • Up to 1.25Gbps upstream and 2.5Gbps downstream
  • Up to 20km in distance
  • 8 PON ports, 8 1G SFP ports, 8 1G/10G SFP+ ports and  4 Gigabit RJ45 interfaces
  • 1 10/100BASE-TX Management port
  • RJ45 to DB9 console interface for switch basic management and setup
  • Up to 128 ONTs split ratio per port

Hardware Specifications
GPON Ports 8, supporting Class C+, Class C++ and Class B+
10/100/1000BASE-T RJ45 Ports 4 TP/SFP combo interfaces, shared with Port-1 to Port-4
1000BASE-X SFP Slots 8, supporting 1000BASE-SX/LX/BX SFP transceiver
Backward compatible with 100BASE-FX SFP transceiver
10GBASE-X SFP+ Slots 4, supporting 10GBASE-SR/LR SFP+ transceiver
Management Port One 10/100BASE-TX RJ45 port
Console One RJ45-to-RS232 serial port (9600, 8, N, 1)
CPU 600MHz
Flash Memory 32MB
Dimensions (W x D x H) 440 x 304 x 44 mm
Weight 5,500g
Power Consumption 60 watts/204.73BTU
Power Requirements - AC 100~240V AC, 1.5A max.
Power Requirements - DC 36~72V DC, 3A max.
Fan 3
Switch Architecture Store-and-forward
Switch Fabric 176Gbps
Switch Throughput Uplink 87Mpps
Downlink 102Mpps
Address Table 40K
ARP Table 8K
ACL Table 1K
Shared Data Buffer 2MB
Jumbo Frame 2KB
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
GPON Specifications
Transmission Speed Downstream: 2.5Gbps
Upstream: 1.25Gbps
Optical Split Ratio Up to 128
Transmission Distance 20km
PON Module Wavelength TX: 1490nm; RX: 1310nm
PON Fiber Type 9/125um SMF(Single mode fiber optic)
Layer 3 Functions
IP Interfaces Max. 1K VLAN interfaces for IPv4
Max. 256 VLAN interfaces for IPv6
Routing Table 32K for IPv4
8K for IPv6
Routing Protocols Static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port Mirroring TX/RX/Both
Many to 1
VLAN IEEE 802.1Q tag-based VLAN, up to 4K VLAN groups
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
GVRP for VLAN management
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Multicast IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IGMP Filtering and IGMP Throttling
IGMP Proxy reporting
IGMP multicast forwarding
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 2K multicast groups
Link Aggregation IEEE 802.3ad Ling Aggregation Control Protocol (LACP)
Static trunk link aggregation
Supports 32 groups with 8 ports per trunk group
Up to 80Gbps bandwidth (full duplex mode)
Load Balance Algorithm:
- Source IP/destination IP/Source + destination IP
- Source MAC/destination MAC/Source + destination MAC
Storm Control Per 100pps
Bandwidth Control At least 64Kbps stream
QoS PON interfaces:
Dynamic Bandwidth Allocation (DBA)
Service Level Agreement (SLA)
Limiting the upstream/downstream rate based on each ONT/ONU/HGU

8 priority queues on all switch ports
Scheduling for priority queues
- Weighted Round Robin (WRR)
- Strict priority
Traffic classification:
- IEEE 802.1p CoS/DSCP/Precedence
- Policy-based ingress and egress QoS
Ring IGU-T G.8032 ERPS Ring
Security Functions
Access Control List Supports Standard and Expanded ACL
- IP-based ACL
- MAC-based ACL
- Time-based ACL
ACL based on:
- MAC Address
- IPv4/IPv6 IP Address
- Protocol-number
- sport/dport
- ToS/Precedence
Up to 1k entries
Security Transmission data encryption on the PON interface
MAC limitation
MAC sticky
Port isolation
DHCP snooping
Dynamic ARP inspection
IP source guard
Network Access Control IEEE 802.1x port-based network access control
Management Functions
System Configuration Console and Telnet
Web browser
SNMP v1, v2c
Secure Management Interfaces SSHv2, SSLv3
Maximum 8 sessions for SSH and telnet connection
System Management IPv4 and IPv6 dual stack management
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP/FTP protocol
Supports IEEE 802.1ab LLDP protocol
NTP and SNTP client
RADIUS authentication for IPv4/IPv6 login user name and password
Event Management Remote syslog
System log
RFC 1215 Internet Engineering Task Force
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2465 IPv6 MIB
RFC 2573 SNMPv3 notification
RFC 2674 Bridge MIB Extensions
Standard Conformance
Regulatory Compliance CE / FCC / LVD
Standards Compliance IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 791 IP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
