PLANET GPN-100 GPON SFU ONT with 1GbE Port

GPN-100
Last items in stock
$49.50
Tax included

GPN-100

Unlike devices from other manufacturers, Planet's GPN-100 OLT is locked to any particular brand of ONU devices

Perfectly Designed for FTTx Applications

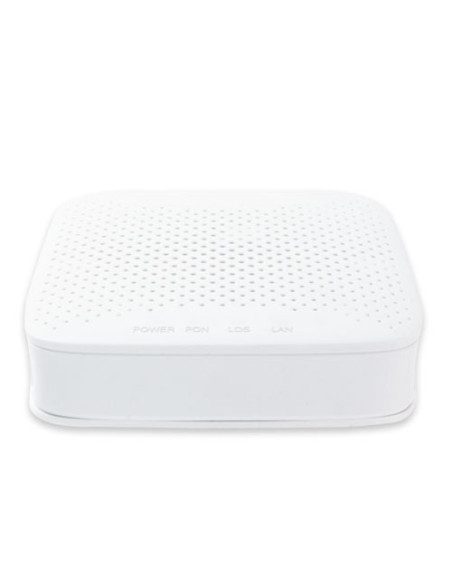

PLANET GPN-100 is a GPON Optical Network Terminal (ONT) equipped with one GPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GPON Optical line Terminal (OLT), the GPN-100 provides highly-effective GPON solutions for FTTx and multi-service networks. The GPN-100 complies with GPON ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON Access technology requirements. With Plug and Play design, it’s easy for the installation and maintenance of GPON deployment.



GPN-100 - PLANET GPON SFU ONT with 1GbE Port

Unlike devices from other manufacturers, Planet's GPN-100 ONT is locked to any particular brand of ONU devices

Excellent Access Capacity

The GPN-100 supports PON downstream and upstream transmission rates of 2.5Gbps and 1.25Gbps, respectively. Connected with PLANET GPON OLT – GPL-8000, it can realize 1:128 split ratio. The covering radius of the network can reach up to 20km.

High-service Control Capability

The GPN-100 supports advanced DBA (dynamic bandwidth allocation), rate limit and accurate bandwidth limit, which enable users to share 2.5Gbps bandwidth resource appropriately. It also supports QoS function, which guarantees a reliable service quality and service priority.

Advanced Energy-saving Technique

PLANET GPN-100, adopting the advanced green networking technology, consumes very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

Cost-effective Passive Optical Network Connection Solution

With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for broadband communication has grown quickly. PON is the most promising NGN (next generation networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, PON technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of long distance of up to 20km between equipment nodes, and most importantly, offer of much greater bandwidth.

High Scalability and Flexibility in Multiple Applications

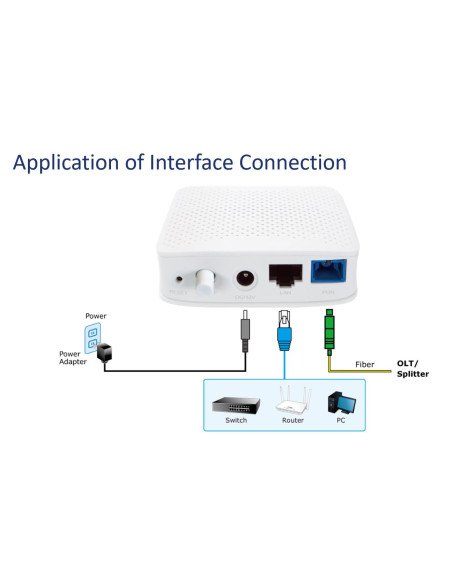

PLANET GPN-100 provides ultra high-speed Internet connection with PLANET OLT via the new GPON technology. The downstream transmission speed provided is up 2.5Gbps and upstream transmission speed provided is up to 1.25Gbps, and its maximum distance can be 20km.

Through the PON technology, the GPN-100 can receive and deliver high-speed voice, and data and video services. It offers long-term service, lower operating costs, easy Installation and maintenance, and more stable bandwidth. The GPN-100 is the perfect solution when working with PLANET OLT that offer cost-effectiveness, scalability and flexibility for network deployments.

Product Features:

  • AES128 algorithm encryption
  • Dynamic bandwidth allocation (DBA) support
  • Service level agreement (SLA) support
  • Four priority queues
  • WRR, strict priority and FIFO queue schedule algorithms
  • Supports IEEE 802.3x flow control

Hardware Specifications
Transmission Speed Downstream: 2.5 Gbps
Upstream: 1.25 Gbps

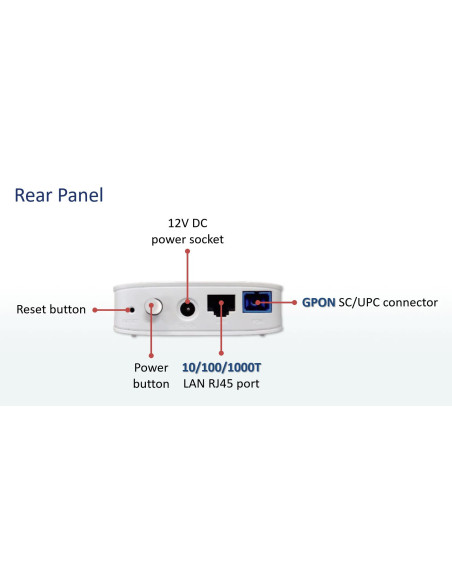

Port [PON Port]
1 x PON Port, SC/UPC

[Ethernet Port]
1 x RJ45 (10/100/1000BASE-T)
Fiber Maximum Distance 20km
Optic Wavelength TX: 1310mm RX: 1490mm
Optical Receive Sensitivity -28 dBm
Optical TX Power 0.5~5 dBm
Reset Button

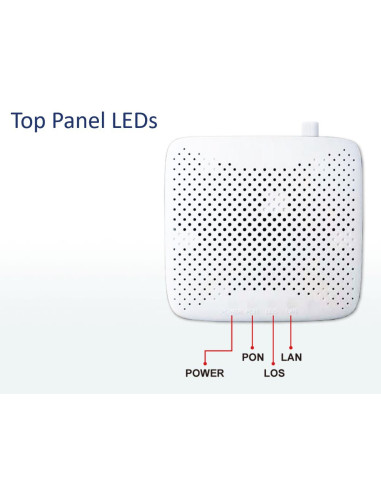

LED Indicators 1 Power LED
1 PON LED
1 LAN Link LED
1 LOS LED
EMS Utility Specifications
ONT Features MAC address learning
Supports IGMP snooping
64 MAC addresses support
Service level agreement (SLA) support
Supports ACL and MAC filtering
Remote loop-back test
IEEE 802.3ah compliant forward error correction (FEC)
Environment Specifications
Dimensions (W x D x H) 80 x 75 x 24 mm
Weight 100g
Power Input 12V DC, 0.5A
Temperature Operating temperature: 0 ~ 50 degrees C
Storage temperature: -40 ~ 85 degrees C
Humidity Operating Humidity: 10 ~ 85% non-condensing
Storage Humidity: 5 ~ 95% non-condensing
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
ITU-T G.984/G.988
ITU-T Y.1291
Safety CE
GPON Ports
1
Power Input
DC
Ethernet Ports
1
Environment Temperature
0℃~50℃
