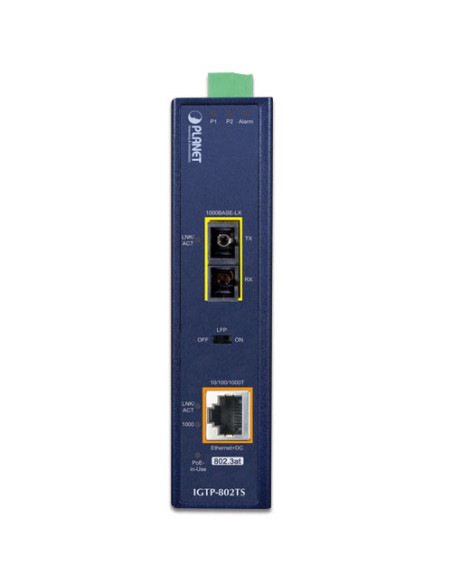

Planet IGTP-802TS IP30 Industrial 1000BASE-LX to 10/100/1000BASE-T 802.3at PoE Media Converter

IGTP-802TS - PLANET 1000SX SFP to 10/100/1000T 802.3at Gigabit Ethernet Converter

Ethernet Interface

Copper 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance.

Auto-negotiation, auto MDI/MDI-X with PoE injector function

1000BASE-X Fiber-optic Connector Type IGTP-802T: SC

IGTP-802TS: SC

IGTP-805AT: SFP (LC)

Fiber Cable IGTP-802T

Multi-mode: 50/125 μm or 62.5/125 μm optic fiber

IGTP-802TS

Single-mode: 9/125 μm optic fiber

IGTP-805AT

Varying on SFP Module

Fiber Cable Distance IGTP-802T: 220m & 550m

IGTP-802TS: 10km

IGTP-805AT: Varying on SFP Module

Fiber Optical Frequency IGTP-802T: 850nm

IGTP-802TS: 1310nm

IGTP-805AT: Varying on SFP Module

Launch Power IGTP-802T

Max. -4dBm

Min. -9.5dBm

IGTP-802TS

Max. -3dBm

Min. -9.5dBm

IGTP-805AT

Varying on SFP Module

Receive Sensitivity IGTP-802T: -13.5dBm

IGTP-802TS: -14.4dBm

IGTP-805AT: Varying on SFP Module

Maximum Input Power IGTP-802T: -18dBm

IGTP-802TS: -20dBm

IGTP-805AT: Varying on SFP Module

Power Over Ethernet

PoE Standard IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power Output 52V DC: 15.4 watts

52V DC: 30 watts

PoE Power Supply Type End-span

Power Pin Assignment 1/2(+), 3/6(-)

PoE Power Budget 30 watts

Hardware Specifications

Speed Twisted-pair:

10/20Mbps for half/full duplex

100/200Mbps for half/full duplex

1000/2000Mbps for full duplex

Fiber Optic:

200Mbps / 2000Mbps for full duplex

Flow Control Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

Maximum Frame Size 9K

LED System: Power 1, Power 2 and Fault LED (green)

Fiber 1000BASE-X: LNK/ACT (green)

TP 10/100/1000BASE-T: LNK/ACT, 1000 (green)

PoE: Power-in-use (orange)

Dimensions (W x D x H) 135 x 87 x 32 mm

Weight IGTP-802T: 510g

IGTP-802TS: 510g

IGTP-805AT: 500g

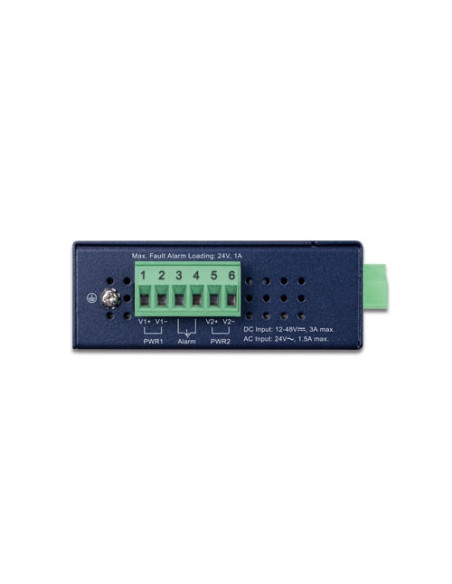

Unit Input Voltage 12 ~ 48V DC

24V AC

Power Consumption 24V: 4.3 watts / 14BTU, 48V: 4.8 watts / 16BTU (without PoE)

24V: 33 watts / 112BTU, 48V: 31 watts / 105BTU (with PoE)

Link Fault Passthrough DIP Switch ON/OFF

Enclosure IP30 metal case

Installation DIN-rail kit and wall-mount ear

ESD Protection 6KV DC

Alarm Provides one relay output for power failure

Alarm relay current carry ability: 1A @ DC 24V

Cables 10/100/1000BASE-T:

2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)

EIA / TIA-568 100-ohm STP (maximum 100 meters)

100BASE-FX/1000BASE-SX/LX:

Multi-mode: 50/125μm or 62.5/125μm optical fiber

Single-mode: 9/125μm optical fiber

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Protocols and Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Stability Testing IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Environment

Temperature Operating: -40~75 degrees C

Storage: -40~85 degrees C

Humidity Operating: 5~90% (non-condensing)

Storage: 5~90% (non-condensing)
