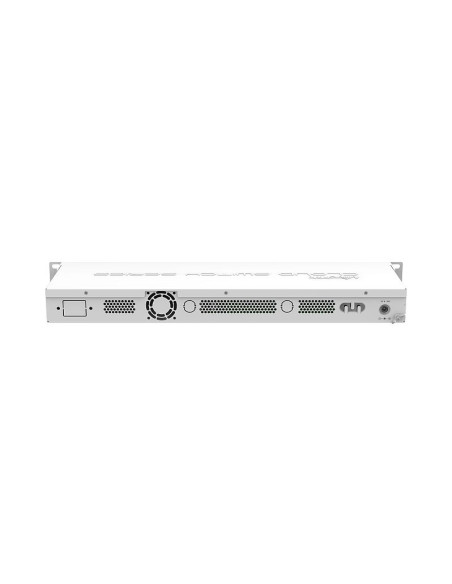

CSS326-24G-2S+RM fanless MikroTik Cloud Smart Switch

MikroTik CSS326 24x GbE + 2x 10G SFP+ Managed Rackmount Switch

CSS326-24G-2S+RM
Available On Backorder
$221.99
Tax included

The CSS326-24G-2S+RM is a fanless, cost-effective, multi-port cloud smart switch. This CSS326 model comes in a 1U rackmount enclosure and features (24) Gigabit Ethernet ports and (2) SFP+ ports. This device supports passive power over Ethernet

Quantity Price You Save
5 $209.78 Up to $61.05
9 $198.68 Up to $209.78
16 $192.02 Up to $479.50
20 $188.69 Up to $665.97


The CSS326-24G-2S+RM from MikroTik is a cost-effective, multi-port cloud smart switch. This CSS326 model comes in a 1U rackmount enclosure and features (24) Gigabit Ethernet ports and (2) SFP+ ports. This device supports passive power over Ethernet.

The MikroTik cloud smart switch series is powered by SwitchOS, a full-featured switching operating system accessible via web browser with features such as port-to-port forwarding, application of MAC filters, configuration of VLANs, traffic mirroring, bandwidth limitation, and adjustment to some MAC and IP header fields.

Note: This product does not include fibre modules. If you need SFP transceivers, select an option from the drop down menu or make sure to add them to your cart separately. For more information about MikroTik SFP transceivers, refer to the MikroTik compatibility table.

Please navigate to individual product pages to purchase different models or quantities of Ethernet Patch Cables and SFP Transceivers than the options provided. Give us a call if you have any questions about device compatibility.

Key Features:

  • Non-blocking Layer 2 switching capacity

  • 16K host table

  • IEEE 802.1Q VLAN

  • Supports up to 4K simultaneous VLANs

  • Port isolation

  • Port security

  • Broadcast storm control

  • Port mirroring of ingress/egress traffic

  • Rapid Spanning Tree Protocol

  • Access Control List

  • MikroTik neighbor discovery

  • SNMP v1

  • Web-based GUI

Technical Specifications:

  • Product code: CSS326-24G-2S+RM

  • Switch chip model: 98DX3216A1

  • Storage type: Flash

  • Storage size: 2 MB

  • 10/100/1000 Ethernet ports: 24

  • SFP+ cages: 2

  • Operating system: SwOS

  • Supported input voltage: 12 to 30V (jack or passive PoE)

  • Dimensions: 440 x 144 x 44 mm

  • Operating temperature: -40 to +70°C tested

  • Max power consumption: 19W

  • Serial port: RJ45

Product Includes:

  • 1 x Mikrotik CSS326-24G-2S+RM Cloud Smart Switch

  • 1 x 24V 1.2A Power Adapter

  • 2 x Rack Ears

Device Features
Managed, PoE Powered, Rackmount
SFP+ Ports
2, 2
Device Type
Network Switch
SFP
Yes, 10G SFP+, Yes, 1G SFP
Ethernet Ports
24, 24
