MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch
MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch
MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch
MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch

MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch

CRS317-1G-16S+RM
Last items in stock
$874.28
Tax included

CRS317-1G-16S+RM

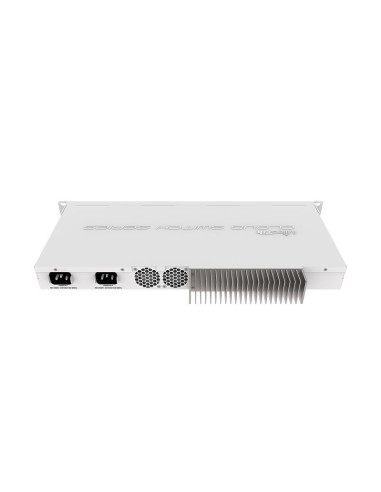

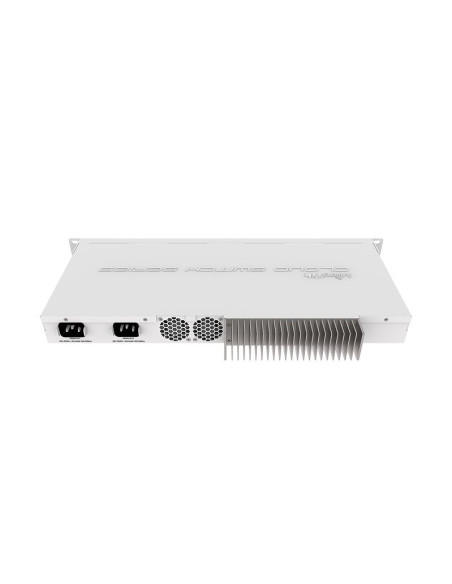

The CRS317-1G-16S+RM from MikroTik is a cost-effective, multi-port cloud router switch powered by a dual core 800MHz processor and 1GB RAM. This CRS317 model comes in a 1U rackmount enclosure with dual power supplies and passive cooling and features (16) SFP+ ports that support both 1.25G and 10G modules, (1) Gigabit Ethernet port, and (1) RJ45 Serial port.

This MikroTik cloud router switch model has a dual boot feature, allowing you to use either the RouterOS or SwitchOS operating system. You can select the desired operating system from within RouterOS, SwOS or the RouterBOOT loader settings. If you need only specific switch features, use SwOS. If you are used to Winbox, and would like the ability to use routing and other Layer 3 features on your device, use RouterOS. This product comes with a Level 6 RouterOS license.

Quantity Unit price You Save
5 $784.23 $450.25
10 $760.62 $1,136.56
15 $747.51 $1,901.56
20 $743.14 $2,622.84

Related Products & Accessories



CRS317-1G-16S+RM - MikroTik CRS317 1x GbE + 16x 10G SFP+ Managed Rackmount Switch

Key Features:

  • Boot option for SwOS or RouterOS

  • Non-blocking Layer 2 switching capacity

  • 16K host table

  • IEEE 802.1Q VLAN

  • Supports up to 4K simultaneous VLANs

  • Port isolation

  • Port security

  • Web-based GUI

  • 800MHz CPU

  • Broadcast storm control

  • Port mirroring of ingress/egress traffic

  • Rapid Spanning Tree Protocol

  • Link Aggregation (LACP)

  • Access Control List

  • MikroTik neighbor discovery

  • SNMP v2/v3

  • Rackmount and tabletop

Technical Specifications:

  • CPU: 98DX8216B0 800MHz

  • RAM: 1GB

  • Storage: 16MB Flash

  • SFP+: 16 (supports both 1.25Gb SFP and 10Gb SFP+ modules; modules not included), DDMI support

  • Dimensions: 443 x 224 x 44mm

  • License Level 6

  • Operating System: RouterOS or SwitchOS

  • Number of AC Inputs: 2

  • AC Input Range: 110 to 240V

  • Redundant Supply: Yes

  • Max Power Consumption: 42W

  • 1 Case Cooling: Yes

  • CPU Temperature Monitor: Yes

  • Operating Temperature: -40 to 70°C

  • LEDs: 38

  • Serial Port: RJ45

Product Includes:

  • (1) CRS317-1G-16S+RM

  • (2) IEC Cord

  • (2) Rackmount Ears

Device Type
Network Switch
SFP+ Ports
16
Ethernet Ports
1 Port 10/100/1000
Serial console port
RJ45
4752224002167
CRS317-1G-16S+RM
