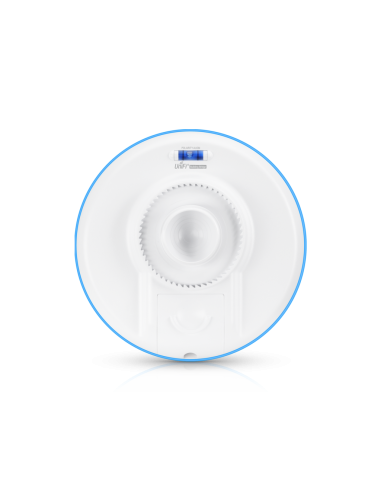

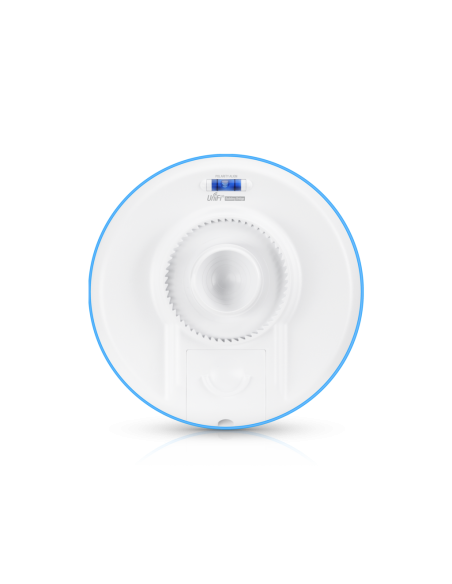

UBB
UBB from Ubiquiti Networks is a 1.7+Gbps bidirectional plug and play 60GHz bridge with a range of up to 500m, 5GHz radio redundancy and UniFi Controller management. The UniFi Building to Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two preconfigured radios, UBB contains everything you need to get up and running in minutes. Enjoy simple, easy-to-use and manage Gigabit connectivity anywhere.
UBB Package Contents:
- UniFi UBB Building to Building Bridge kit (2 preconfigured radios)
- (2) ball joint mounts, (2) lock ring, (2) metal strap
- (2) Gigabit PoE (48V, 0.32A) adapters with mounting brackets and power cords
UBB - Ubiquiti UniFi Building to Building 1.7+ Gigabit Bridge kit

- Antenna Gain (dBi)
- 17, 17
- Device Type
- 0, 0
- Device Features
- 0, 0
- Wireless System
- 0, 0
- Ethernet Ports
- 1, 1
- Link-Distance
- upto 400 Mtr
UBB RADIO | |
---|---|
Dimensions | 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") |
Weight | 376 g (13.3 oz) |
Antenna Gain 2.4 GHz (BLE) 5 GHz 60 GHz |
2 dBi 10 dBi 17.2 dBi |
GPS | Yes |
Max. TX Power | 25 dBm (5 GHz) |
Interfaces Networking Management |
(1) 10/100/1000 Ethernet Port Bluetooth |
Enclosure | UV-Resistant Polycarbonate |
Power Method 802.3af Supported Passive Power over Ethernet (48V) |
|
Power Supply | UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included) |
Max Power Consumption | 11W |
Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
Wind Survivability | 200 km/h (125 mph) |
Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) |
ESD/EMP Protection | ± 24kV Contact/Air |
Operating Temperature | -40 to 70° C (-40 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
OPERATING FREQUENCY (MHZ) | |
Worldwide | 5150 - 5875 57,000 - 66,000 |
