MikroTik Wireless Wire Cube Pair 802.11ay 60GHz with 5 GHz Failover
CubeG-5ac60aypair ptp 60GHz with 5 GHz Failover
A preconfigured kit of two Cube 60Pro ac (802.11ay 60 GHz) devices: the Wireless Wire Cube Pro. Just point the Cubes at one another and power them on! They will form a blazing fast encrypted wireless connection. Pure plug-and-play!
CubeG-5ac60aypair - MikroTik Wireless Wire Cube Pair 802.11ay 60GHz with 5 GHz Failover
Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

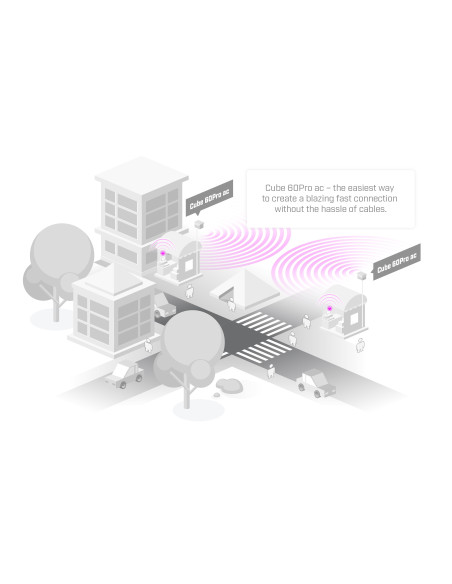

This is a preconfigured kit of two Cube 60Pro ac devices. The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km. And that’s not all – we have added Channel 5* support, so you can reach even higher distances if necessary. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km. Bridging two locations has never been easier!
Forget about downtime with the automatic 5 GHz backup connection
The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.
More durability, less unwanted attention

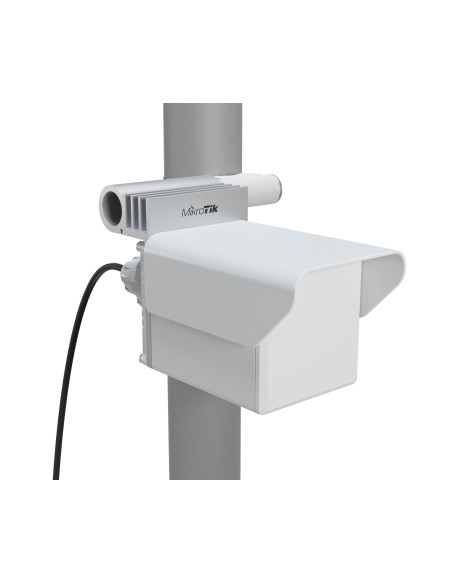

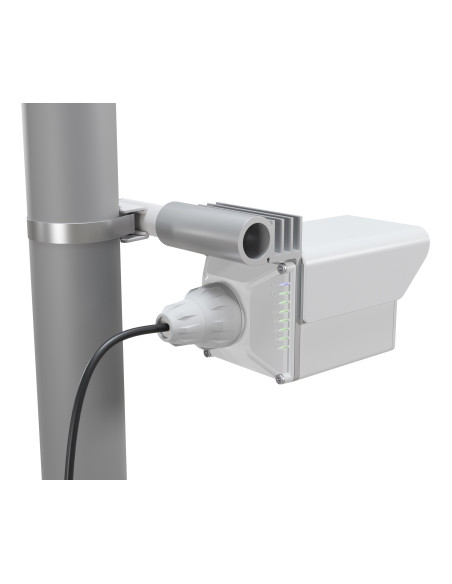

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.
Specifications
Details | |
---|---|
Product code | CubeG-5ac60aypair |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | auto (448 - 896) MHz |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 64 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Frequency (Hz) | 47-63 |
Max power consumption | 10 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 18-48 V |
Wireless specifications
Details | |
---|---|
Wireless 5 GHz Max data rate | 433 Mbit/s |
Wireless 5 GHz number of chains | 1 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 11.5 |
Wireless 5 GHz chip model | IPQ-4019 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Other
Details | |
---|---|
GNSS standards | GPS |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 22 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 22 | -93 |
MCS7 | 17 | -71 |
MCS9 | 15 | -68 |
- Wireless System
- 5GHz
60GHz - Power Over Ethernet
- 48V 15W 802.3af
48V 30W 802.3at
48V 60W 802.3at - Ethernet Ports
- 1 Port 10/100/1000
- Link-Distance
- upto 1000 Mtr
