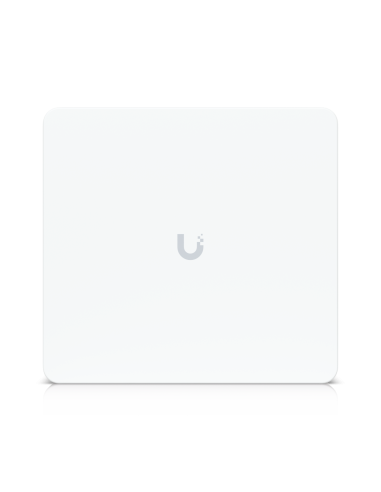

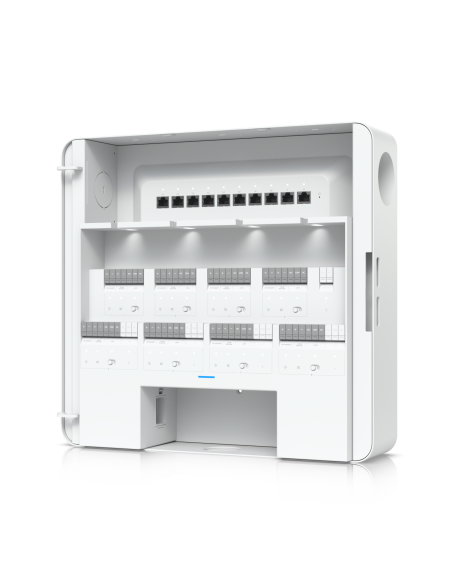

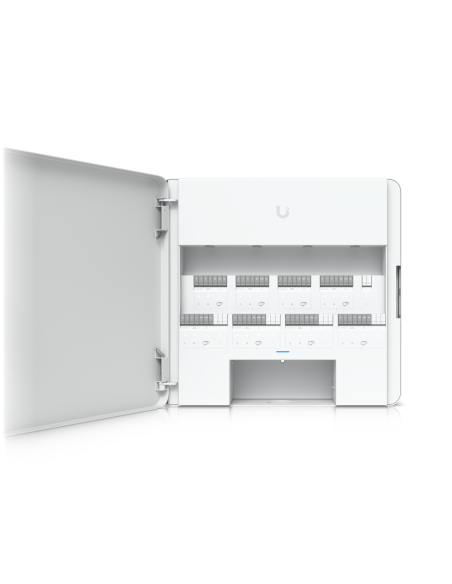

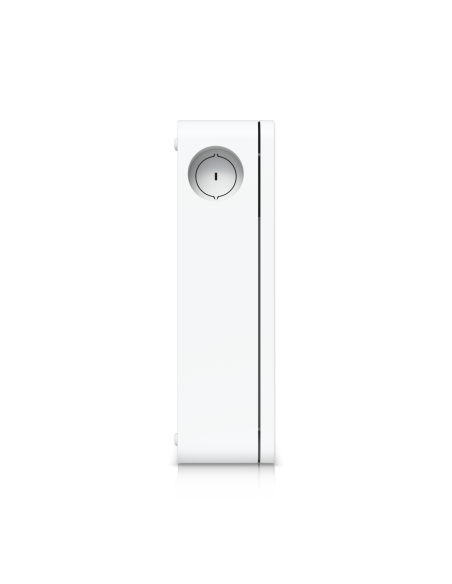

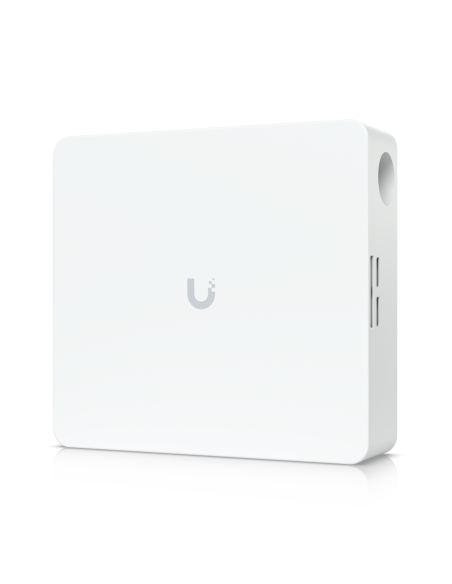

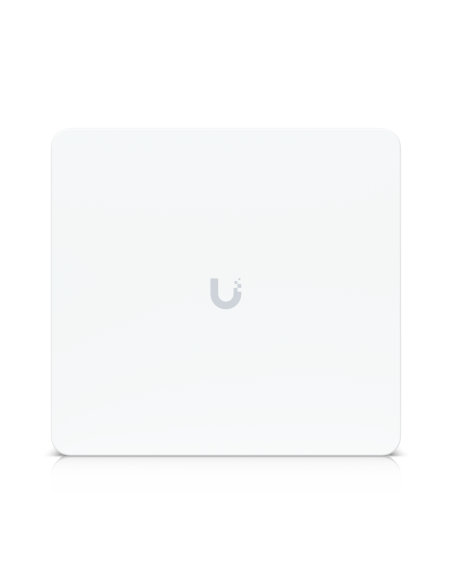

Ubiquiti EAH-8 UniFi Enterprise Access Hub 8 Door Access Control System

Name: Ubiquiti EAH-8 UniFi Enterprise Access Hub 8 Door Access Control System
Brand: Ubiquiti
SKU: EAH-8
Price: 1870 AUD
Availability: InStock

Reference EAH-8

Last items in stock

$1,870.00

Tax included

EAH-8

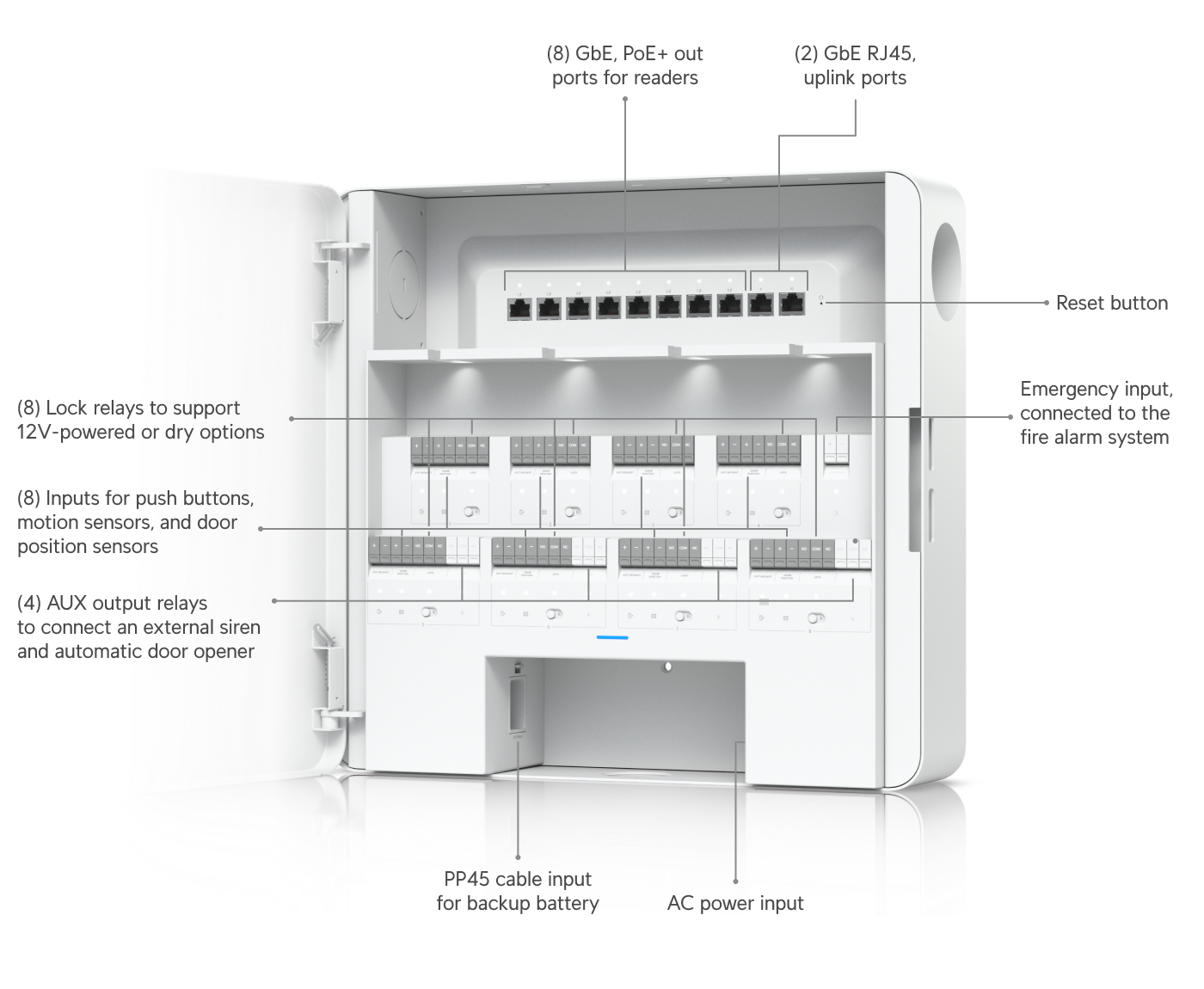

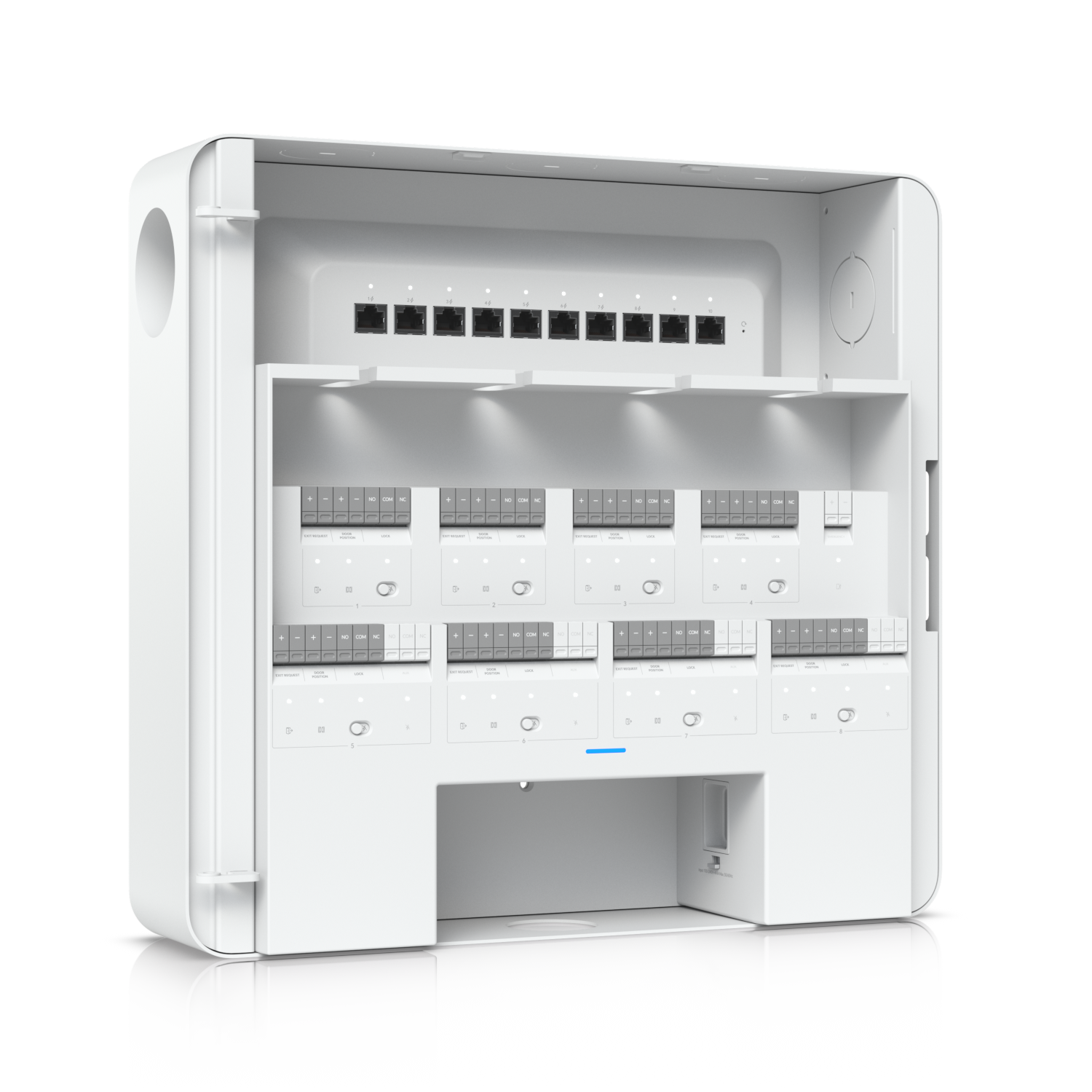

The Ubiquiti EAH-8 UniFi Enterprise Access Hub is an enterprise-grade access control solution designed to manage up to eight doors. It features 8 relay outputs for door locks, 8 PoE ports for UniFi Access Readers, and dedicated input channels for exit devices and door sensors. The hub supports external power input with battery backup capability and includes auxiliary terminals for integration with alarms and other external systems. Ideal for scalable and secure access management in commercial and enterprise environments.

Key Features

✓8 relay outputs for door lock control
✓Configurable input channels for exit devices and door sensors
✓8 PoE ports for UniFi Access Readers
✓AUX terminals for chimes/sirens/openers
✓DC input for external backup power

*Note: The 5-year UI Care service must be applied before the product is opened and activated. FOR NEW SALES ONLY!

Accessories

	UA-G2-Pro Ubiquiti UniFi Access Reader G2 Professional, 2-Way Intercom, Unlock Via NFC or Unifi Iden $625.90
	Ubiquiti UniFi UA-G3-Pro Access Reader G3 Professional with Touch Pass Intercom NFC & PoE $647.90
	Ubiquiti UA-G3-FLEX UniFi Access G3 Reader Flex $321.20
	Ubiquiti UA-Rescue Access Rescue KeySwitch $162.94
	Ubiquiti UI Care Five-Year Extended Replacement Protection, For NEW Sales Only $360.00

Description
Product Details

Ubiquiti EAH-8 UniFi Enterprise Access Hub

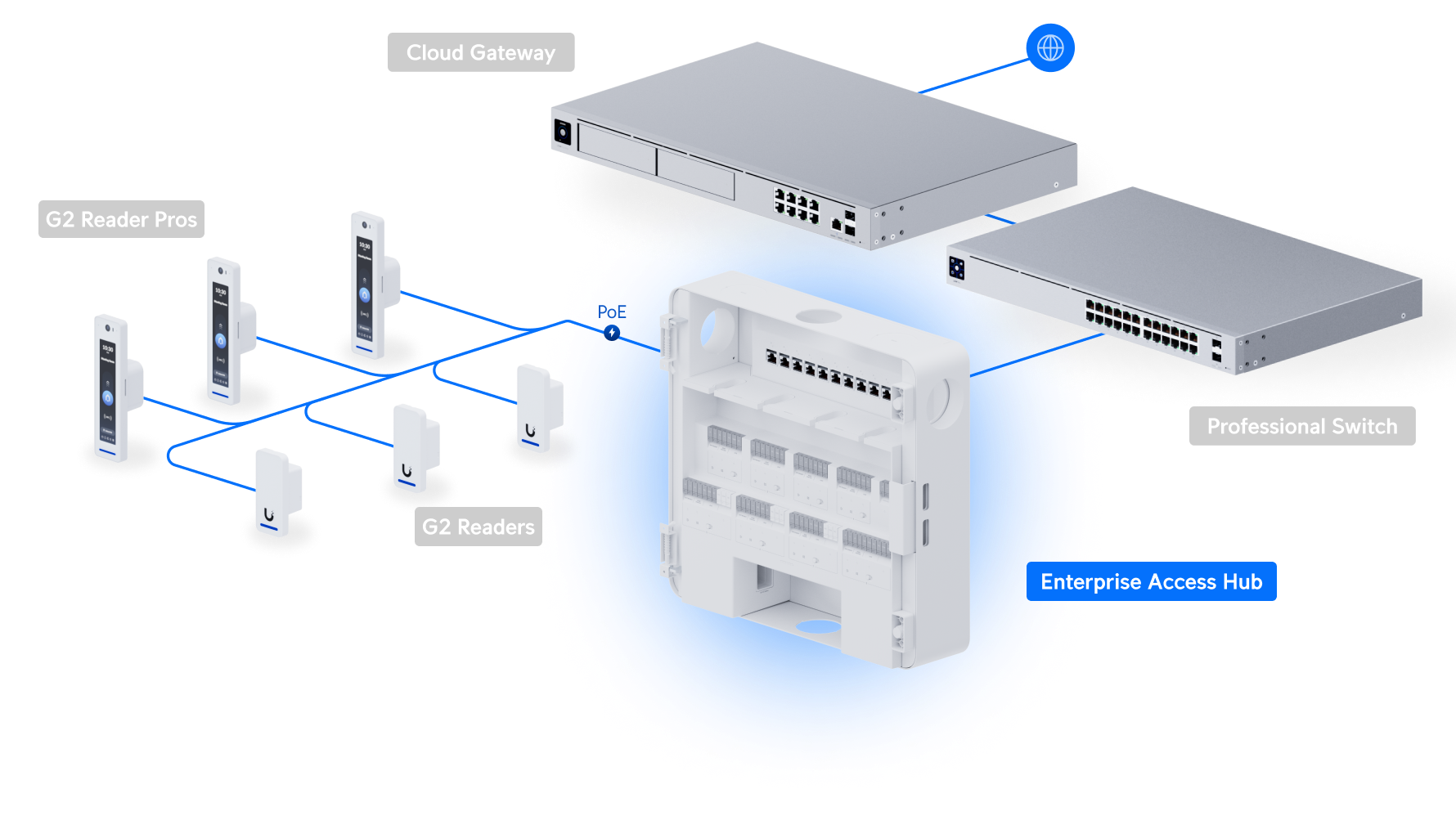

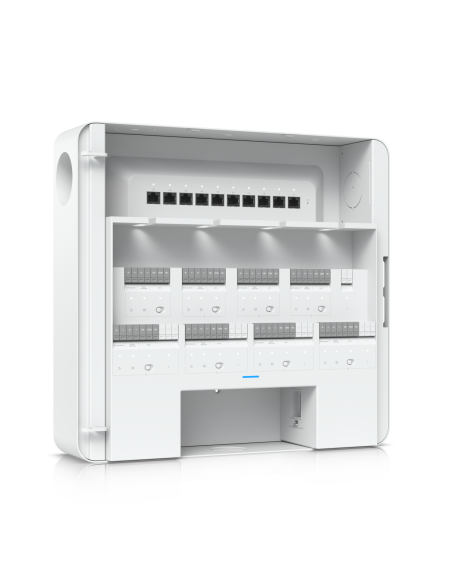

The Ubiquiti EAH-8 UniFi Enterprise Access Hub is part of Ubiquiti's comprehensive solution for commercial and enterprise access control. It provides robust management of entry and exit points across up to eight doors, supporting a wide range of security devices and seamless integration with the UniFi Access ecosystem. With 8 relay outputs for door locks, configurable input channels for exit devices and sensors, and dedicated ports for UniFi Access Readers, it ensures reliable and scalable connectivity.
Designed for reliability, the EAH-8 supports DC input for external backup power to maintain operation during outages. AUX terminals allow integration with alarms, chimes, and other external systems. Its compact design and full compatibility with UniFi Access make it a versatile solution for secure access control in commercial buildings, campuses, and enterprise environments.

Technical Specifications

Specification	Value

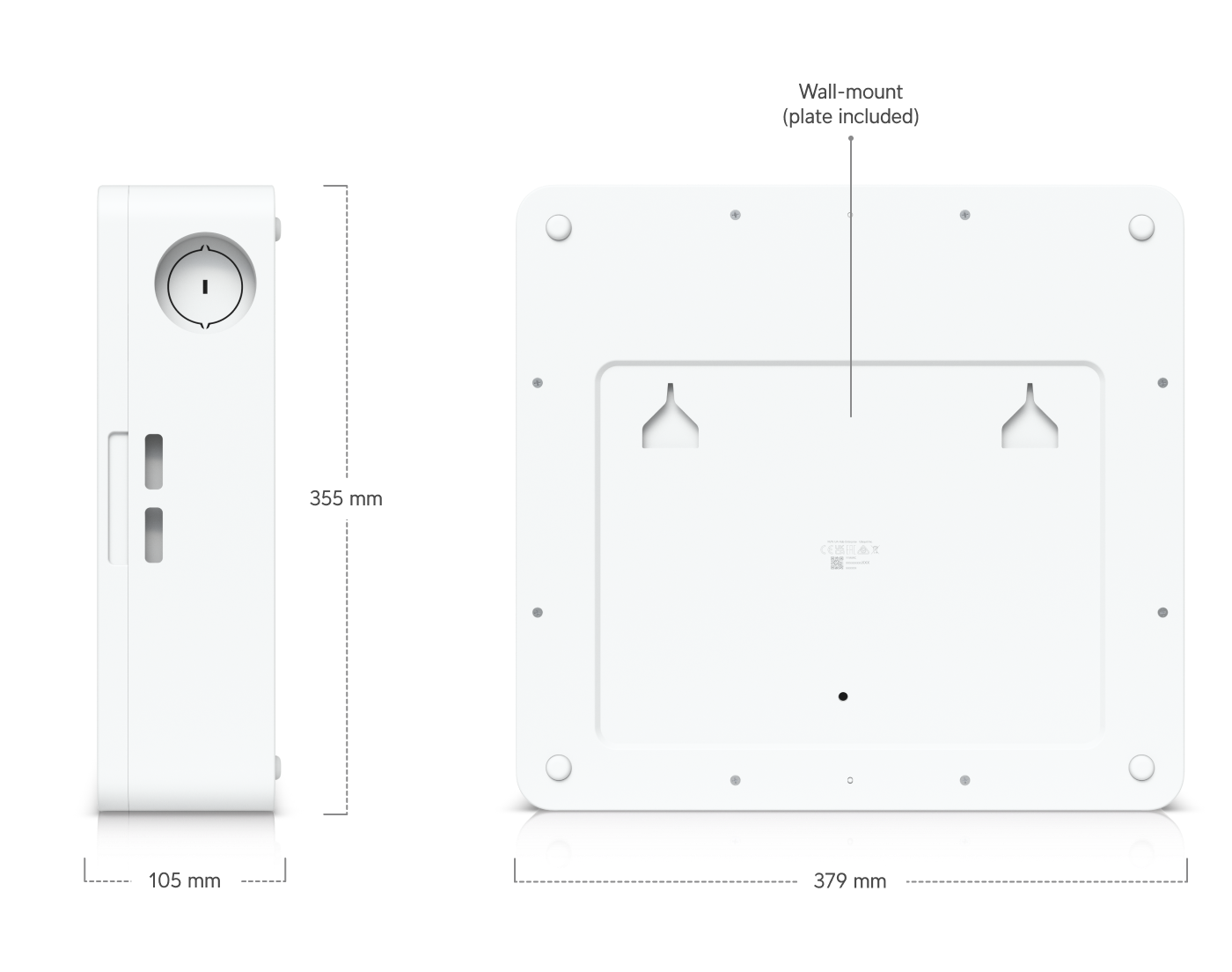

Dimensions	379 x 355 x 105 mm (15 x 14 x 4.1")
Supported Doors	8
Maximum User Count	10,000
Input Terminals	(8) Door exit request (8) Door position (1) Emergency
Power Method	Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V
NDAA Compliant	✓
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb)
Enclosure Material	SGCC steel housing with polycarbonate cover
Mount Material	SGCC steel

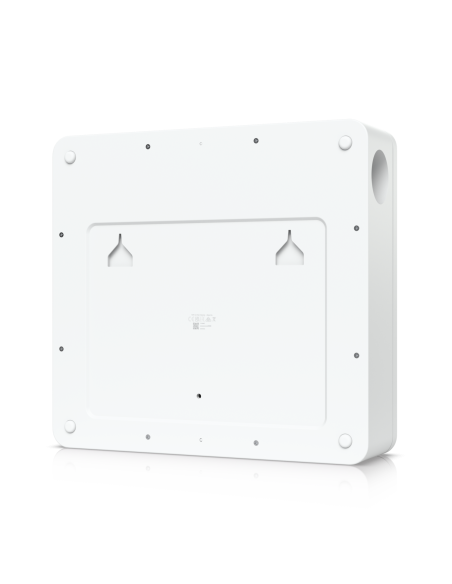

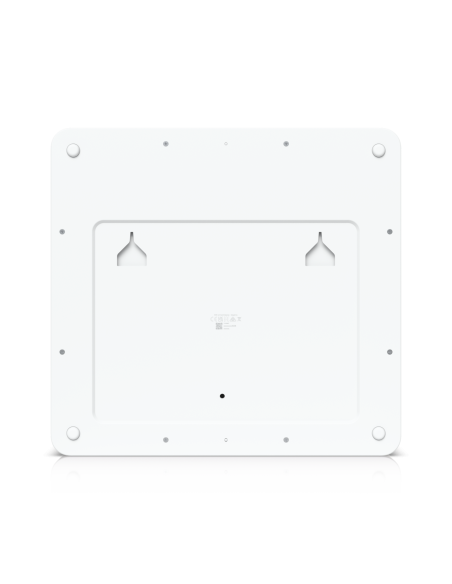

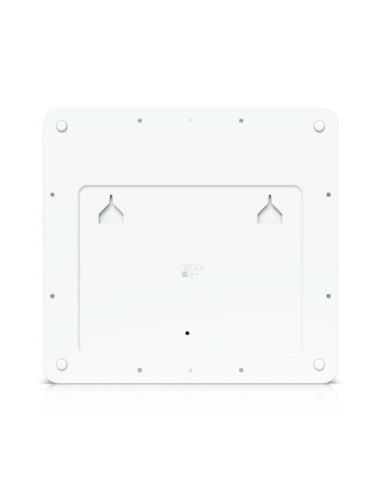

Mounting	Wall
Digital Input	(8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency
Dry Output Relay	(8) Lock terminals (12V or Dry) (4) AUX terminals (Chime/Siren/Door opener)
Powered Output Relay	Lock: 12V DC, 1A / Dry Aux: Dry only
Indoor / Outdoor Use	Indoor only
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Networking Interface	(10) 10/100/1000 Base-T
PoE Interface	(8) PoE+ outputs, 50V DC, 30W per port (Max 190W aggregated)
Power Supply	AC/DC, internal
Max. Power Consumption	240W
Max. PoE Wattage per Port	30W
LEDs	W/B Learn More
Buttons	(1) Factory reset
Recommend Max. Cable Length	UA-Lock-Electric (400mA) 24 AWG: 25 m • 22 AWG: 42 m • 20 AWG: 66 m • 18 AWG: 100 m UA-Lock-Magnetic-540kg (500mA) 24 AWG: 20 m • 22 AWG: 32 m • 20 AWG: 51 m • 18 AWG: 80 m UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m • 22 AWG: 20 m • 20 AWG: 30 m • 18 AWG: 46 m Other locks (1A) 24 AWG: 9 m • 22 AWG: 15 m • 20 AWG: 24 m • 18 AWG: 36 m
PoE Cabling Requirements	Cat5e minimum recommended. Minimum conductor gauge: 26 AWG (patch), 24 AWG (horizontal/riser).
UL 294 Statement	Compliance with IEEE 802.3 not verified under UL 294. Meets NEC ANSI/NFPA 70 Article 725.121.
CAN/ULC-60839-11-1 Grade	Grade I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Version	EAH-8, Ver 01
Management Application	Access
Software Information	https://unifi.ui.com
