Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE
Tycon POE-Tester|Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE|Wisp Australia
  • New
Tycon POE-Tester|Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE|Wisp Australia
Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE
Tycon POE-Tester|Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE|Wisp Australia

Tycon POE-Tester for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE

POE-Tester
ETA January 2026
$44.00
Tax included

POE-Tester

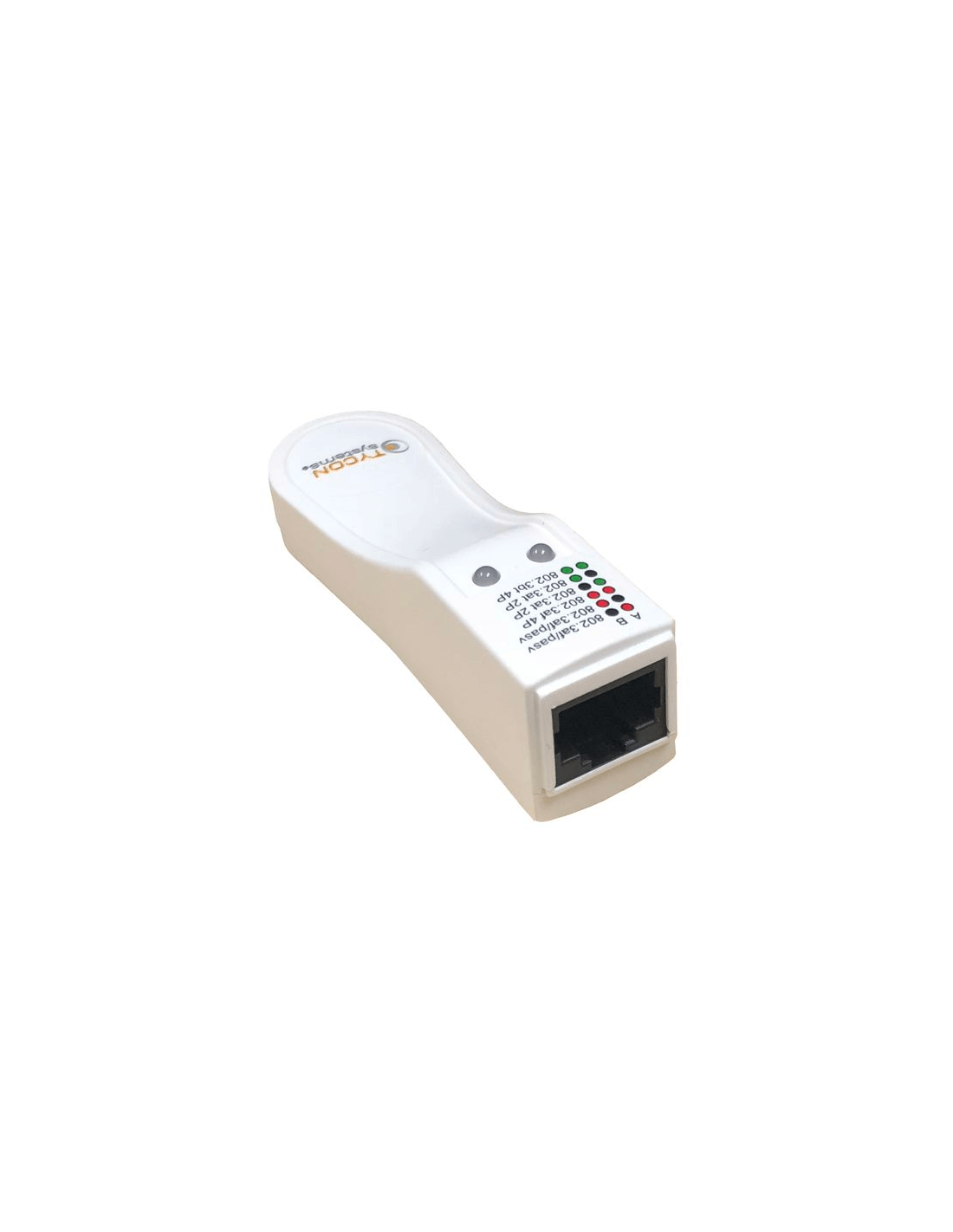

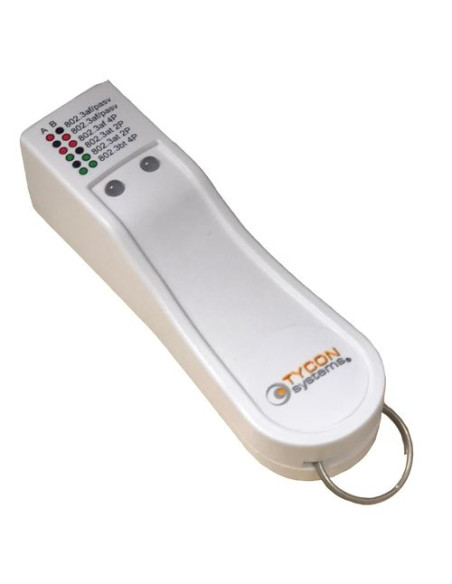

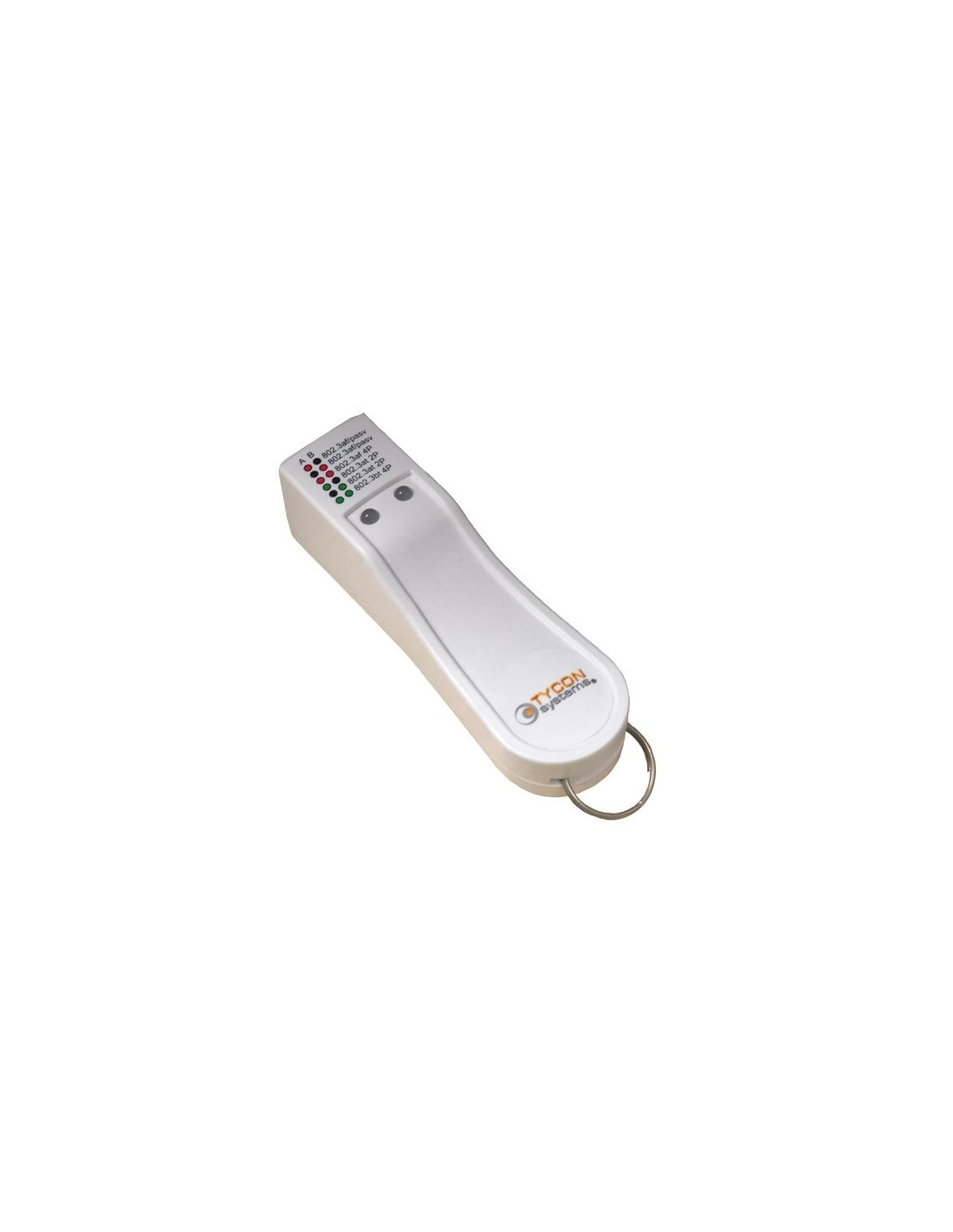

The POE-Tester from Tycon Systems® is the perfect tool for every technician’s toolbox. This versatile device ensures that you know exactly what type of PoE is being supplied, helping you confirm the compatibility of your equipment. With its robust detection capabilities, the device detects and displays all popular Power over ethernet standards, including IEEE standards such as 802.3af, 802.3at, and the new 802.3bt. Moreover, it also detects 48V passive PoE delivered on both 2-pair and 4-pair configurations, providing comprehensive coverage for a wide range of PoE systems.

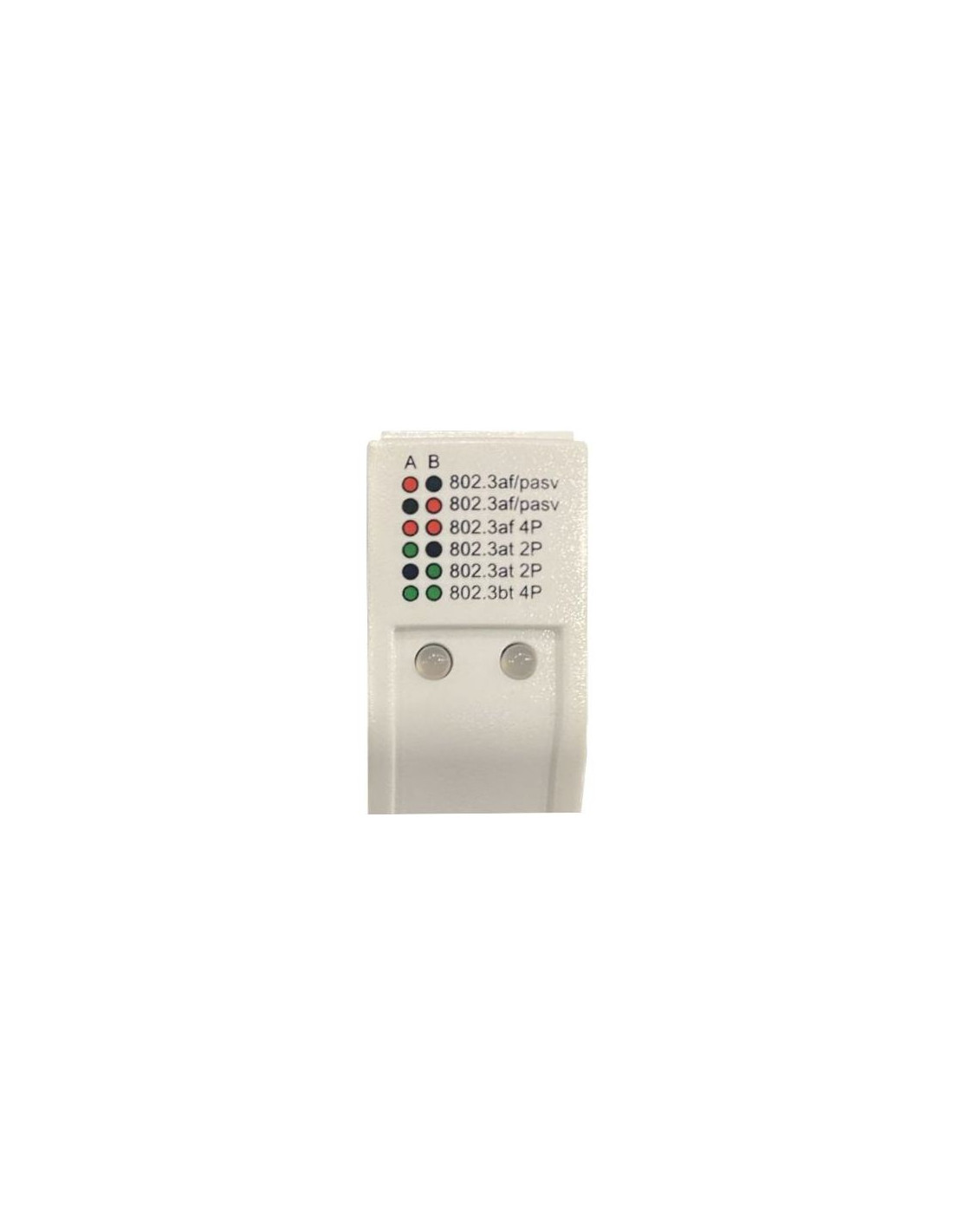

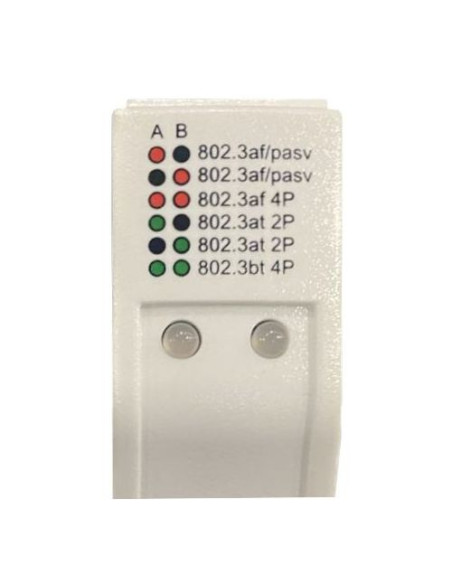

Additionally, the POE-Tester clearly shows whether the Power over ethernet is operating in Mode A (supplied on pins 1, 2, 3, 6) or Mode B (supplied on pins 4, 5, 7, 8), allowing you to understand the power delivery method. This feature is crucial for ensuring the compatibility and proper functioning of your PoE-powered devices. The device is compatible with various types, including PoE, PoE+, PoE++, and High PoE, making it an invaluable tool for any technician working with PoE systems.

Furthermore, the compact and easy-to-use design of the POE-Tester makes it a practical addition to any toolkit. Its intuitive interface provides quick and accurate readings, enabling you to diagnose and troubleshoot PoE-related issues efficiently. Whether you’re working in the field or setting up a new system, this accessory ensures that you have the information you need to make informed decisions.

Key Features:

  • PoE Tester
  • Very Compact Size



POE-Tester Tycon for 802.3af/at/bt and 48V Passive 2 & 4 pair PoE

Product Specifications:

Specification Details
PoE Detection 802.3af, 802.3at, 802.3bt, 48V Passive (2-Pair and 4-Pair), Mode A and Mode B
PoE Input (RJ45) 42–57V DC (Does not detect 24V Passive PoE)
Compatible Port Speed 10 / 100 / 1000 Mbps
LED Indicator Dual Color (Red / Green)
Operating Temperature -25 to +50°C (-13 to +122°F)
Operating Humidity 5% – 90% non-condensing
Storage Temperature -40 to +80°C (-40 to +176°F)
Dimensions (L × W × H) 74 × 23 × 23 mm (3 × 1 × 1 in)
Weight 15 g (0.5 oz)
Warranty 3 Years
POE-Tester
