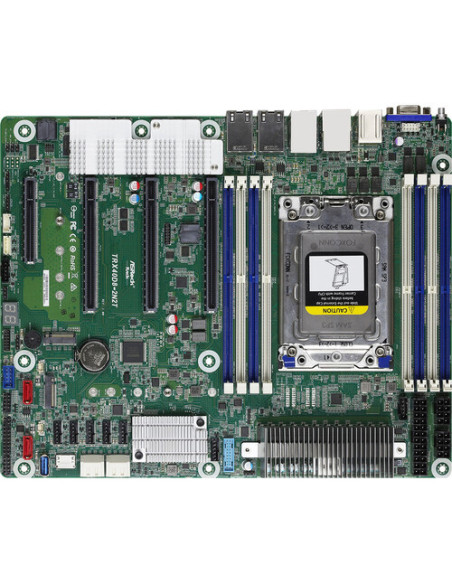

ASRock Rack TRX40D8-2N2T
Related Products & Accessories
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12''x 9.6'' (305 mm x 244 mm) |
| Processor System | |
| CPU | - 3rd Gen AMD Ryzen™ Threadripper™ series processors |
| Socket | - sTRX4 |
| Chipset | - AMD TRX40 |
| System Memory | |
| Capacity | - 8 DIMM slots (2DPC) |
| Type | - 288-pin DDR4 ECC and non-ECC UDIMM |
| DIMM Size Per DIMM | - max. 32GB per DIMM |
| DIMM Frequency | - 3200/2933/2667/2400/2133 MHz |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 4.0 x 16 | - Slot 7: Latch PCIe x16 (PCIe 4.0 x16) - Slot 5: Latch PCIe x16 (PCIe 4.0 x16) - Slot 3: Latch PCIe x16 (PCIe 4.0 x16) |
| PCIe 4.0 x 8 | - Slot 1:Open-end PCIe x8 (PCIe4.0 x8) |
| M.2 | - 2 M-key (PCIe4.0 x4); Form factor: 22110/2280/2260/2242 |
| Storage | |
| SATA Controller | - TRX40 (4 SATA 6Gb/s, support RAID 0/1/10): - 2 via SATA 14-pin right angle connector - 2 via 7+2 pin SATA DOM connectors |
| Additional Storage Controller | - ASM 1061 (2 SATA 6Gb/s): - 2 via SATA 14-pin right angle connector |
| OCuLink for U.2 | - 1 OCulink (PCIe3.0 x4) [BTO*] *Please contact ASRock Rack for further information |
| Ethernet | |
| Additional GbE Controller | - 1 Intel® X710-AT2: 2 RJ45 (10 GbE) - 2 Intel® i225: 2 RJ45 (2.5 GbE) |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| Rear Panel I/O | |
| PS/2 KB/Mouse | - 1 |
| VGA Port | - 1 DB15 (VGA) |
| USB 3.1 Gen1 Port | - 2 Type A |
| USB 3.1 Gen2 Port | - 1 Type A, 1 Type C |
| Lan Port | - 2 RJ45 (10GbE), 2RJ45 (2.5GbE) |
| UID Button/UID LED | - 1 |
| NMI Button | - 1 |
| Power connector in Front side | |
| Power connector | - 1 ATX 24-pin, 2 ATX 12V 8-pin |
| Internal Connector | |
| COM Header | - 1 |
| Auxiliary Panel Header | - 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM Header | - 1 (13-pin, LPC), 1( 13-pin, SPI) |
| Thermal Sensor Header | - 1 |
| IPMB Header | - 1 |
| VGA Header | - 1 |
| PMBus CONN | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6 (6-pin) |
| USB 3.1 (Gen1) Header | - 1 |
| USB 2.0 Header | - 1 |
| Type A USB 3.1 (Gen1) Port | - 1 |
| System Panel | - 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | - 1 |
| BMC_SMB Header | - 1 |
| Clear CMOS | - 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | - 1 |
| 80 Debug Port LED | - 1 |
| Fan Fail LED | - 6 |
| System BIOS | |
| BIOS Type | - AMI 256 Mb SPI Flash ROM |
| BIOS Features | - ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP) |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - System Temperature Sensing - Card side Temperature Sensing - System TR Temperature Sensing |
| Fan | - Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
| Voltage | +3VSB, +5VSB, VCORE, VCORE_NB, VCCM_AB, VCCM_CD, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
