Model

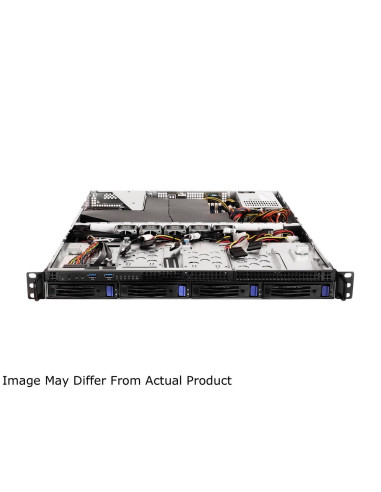

Brand ASRock Rack

Model 1U4LW-X470

CPU Supported

CPU Type

AMD AM4 Socket Ryzen Series CPUs (Raven Ridge and Pinnacle Ridge) and Ryzen 7nm CPUs

Memory Supported

Memory Type Supported

Supports DDR4 ECC / UDIMM, up to 2667 MHz

Channel Supported

Dual Channel

Graphics

GPU/VPU

Aspeed AST2500

Expansion Slots

PCI Express

Rear: 1 x single-width x16 Full Height card (by Riser card)

Communications

Number of LAN

2 x RJ45 GLAN by Intel i210

First LAN

Intel I210

Second LAN

Intel I210

Max. LAN Speed

Dual 10/100/1000Mbps

Power Supply

Max. Power

Type: Single PSU
Output Watts : 400W

Features

Features

1U Rackmount with 400W PSU

Supports AMD AM4 Socket Ryzen Series CPUs and Ryzen 7nm CPUs

Supports 4 x DDR4 ECC and non-ECC UDIMM, max. 64 GB

Supports externall 4 x 3.5" HDD or 2.5" HDD, internal 2 x 2.5" HDD, external: 1 x Slim ODD or 1 x 2.5" HDD (optional)

Supports 1 x PCIe 3.0 x16

Supports 2 x Intel i210

ASPEED 2500 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN

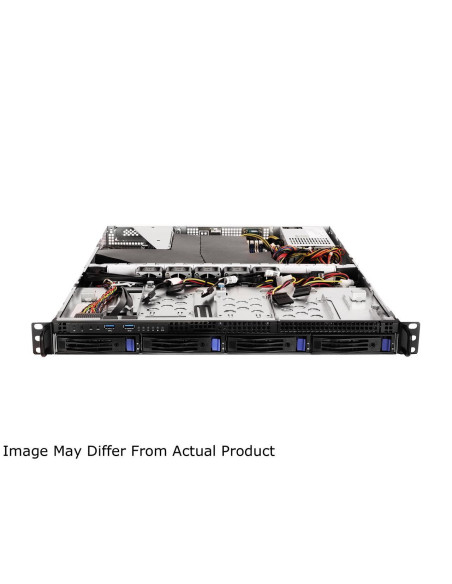

Front Panel:
Buttons: Power Switch, ID Switch, System reset, NMI
LEDs: Power status, HDD,LANs, System Fail activity LEDs
I/O Ports: 2 x USB 3.0 ports

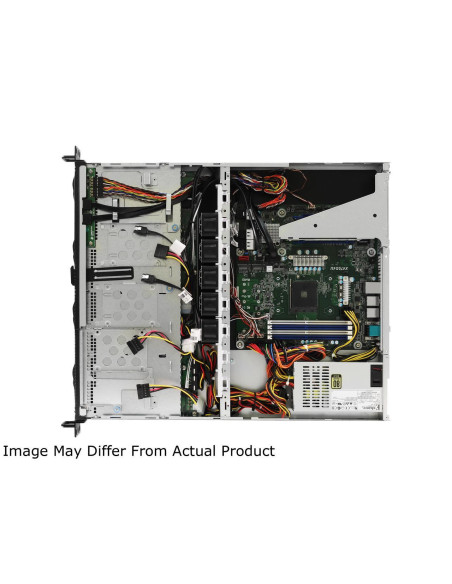

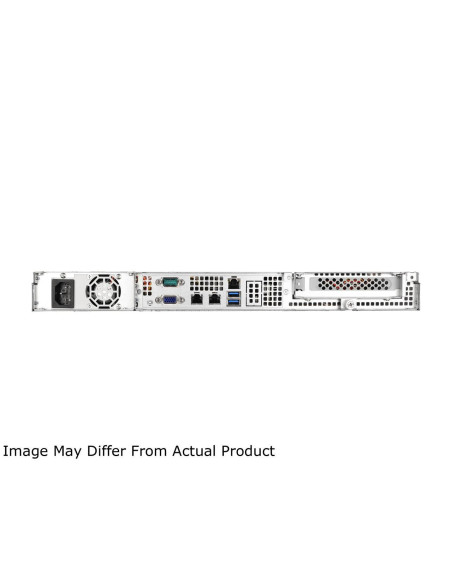

MB tray:
USB 3.0: 2
Serial Port: 1
VGA: 1 x D-Sub
Lan Port:
- RJ45: 2+1 (IPMI)
- LAN Ports with LED (ACT / LINK LED and SPEED LED)

External Drive Bay:
Front Side Drive Bay
- External: 4 x Hot-swap 3.5" HDD or 4 x 2.5" HDD. 1 x Slim ODD or 1 x 2.5" HDD (optional)
- Internal: 2 x 2.5" HDD

Processor System:
CPU: AMD AM4 Socket Ryzen Series CPUs (Raven Ridge and Pinnacle Ridge) and Ryzen 7nm CPUs
Socket: AM4 PGA 1331
Chipset: AMD Promontory X470

Details

Form Factor

1U Rackmount
