Product Features
| System | |
| Form Factor | 1U |
| Dimensions | 250mm x 430mm x 43.5mm (9.84''D x 16.93''W x 1.71''H) |
| Support MB | X570D4I-2T |

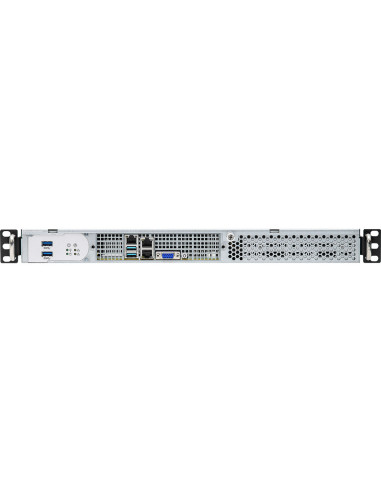

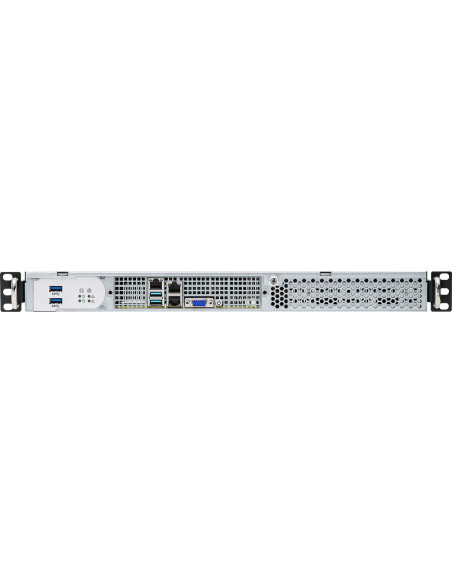

| Front Panel | |
| Buttons | Power switch, System reset |
| LEDs | Power status, HDD, LAN activity LEDs |
| I/O Ports | 2 Type-A (USB 3.2 Gen1) |
| External Drive Bay / Storage | |

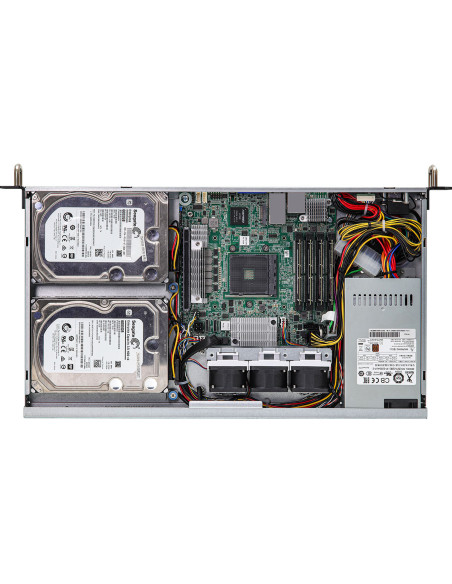

| Internal Side | Supports 2 fixed 3.5” drives and 2 fixed 2.5'' 7mm drives 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280 *Supports PCIe3.0 when using AMD Ryzen 3000 Series Processors with Radeon Graphics |
| Power Supply | |
| Type | Single PSU |
| Output Watts | 265W |
| Efficiency | 80-Plus Bronze |
| AC Input | 100-240V, 50-60Hz |
| System Fan | |
| Fan | 3 Easy-swap 40x28 mm fans |
| Processor System | |
| CPU | supports: AMD Ryzen 5000 Series Desktop Processors AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 4000 and 3000 Series Desktop Processors 3rd Gen AMD Ryzen™ Desktop Processors AMD Ryzen 3000 Series Processors with Radeon Graphics |
| Socket | AM4 PGA 1331 |
| Power Design | 105W |
| Chipset | AMD X570 |
| System Memory | |
| Capacity | 4 DDR4 SO-DIMM slots (2DPC) |
| Type | 288-pin DDR4 ECC* and non-ECC SO-DIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. *Conditionally support ECC error reporting function |
| DIMM Size Per DIMM | up to 32GB per DIMM |
| DIMM Frequency | One DIMM: 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s Two DIMMs: 2400MT/s |
| Voltage | 1.2V |
| Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |

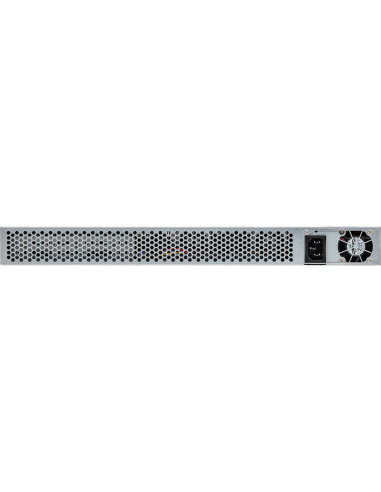

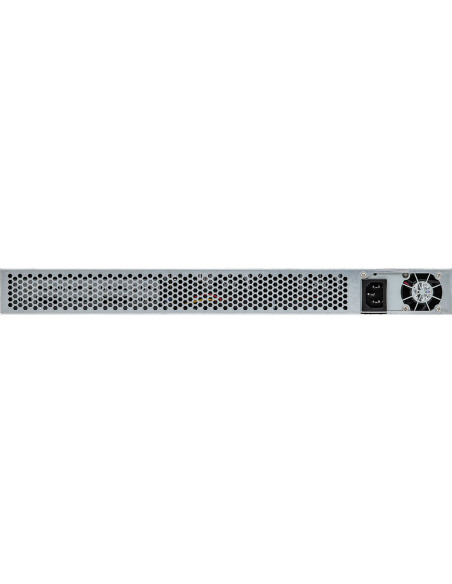

| Rear Panel I/O | |
| VGA Port | 1 D-Sub |
| USB 3.2 Gen1 Port | 2 Type-A |
| Lan Port | 2 RJ45(10GbE) by Intel® X550-AT2 |
| Dedicate LAN | 1 dedicated IPMI |
| UID Button/UID LED | 1 |
| COM Header | 1 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
