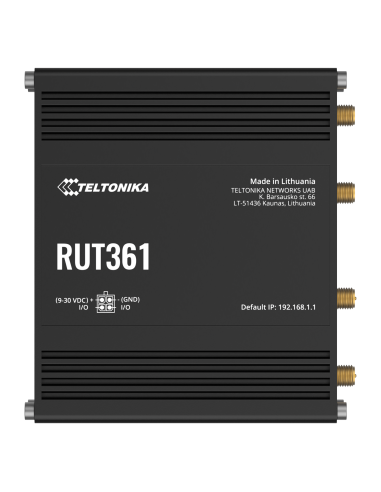

Teltonika RUT361 4G LTE Cat 6 Wi-Fi 801.11 b/g/n WAN Failover Industrial Cellular Router

RUT361
In Stock
$400.40
Tax included

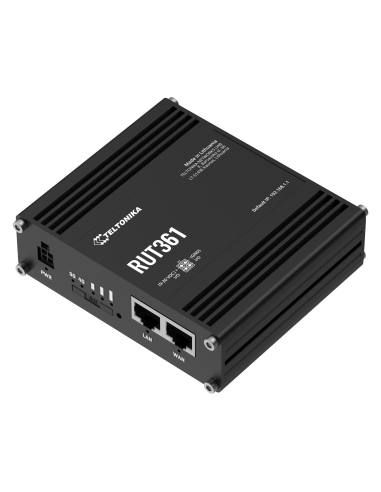

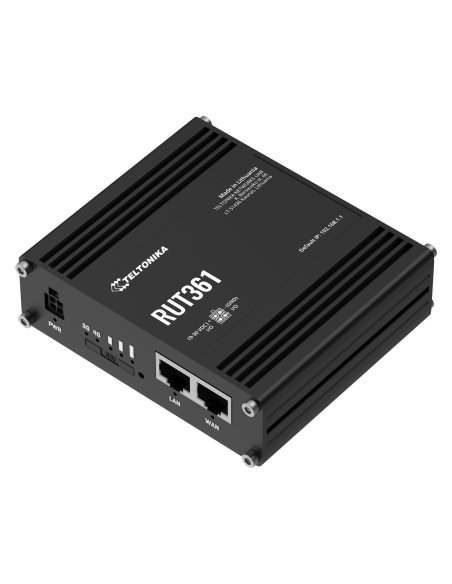

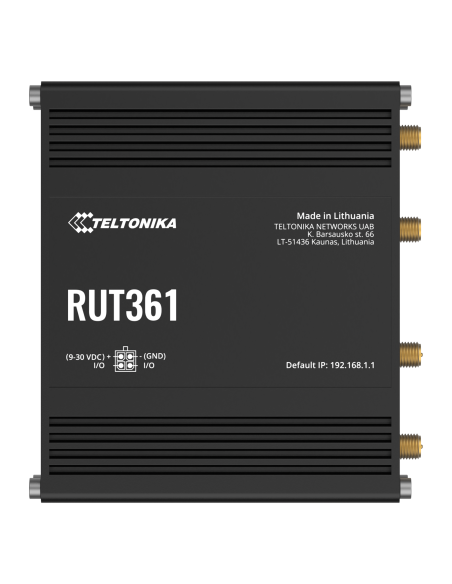

RUT361-Industrial Cellular Router


The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Key features:

  • 4G LTE CAT 6 Cellular speeds of u p to 300Mbps with carrier aggregation
  • WI-FI 802.11b/g/n wireless access point with hotspot functionality
  • WAN FAILOVERS  Automatic switching to available backup connection
  • RMS For remote management access & VPN services

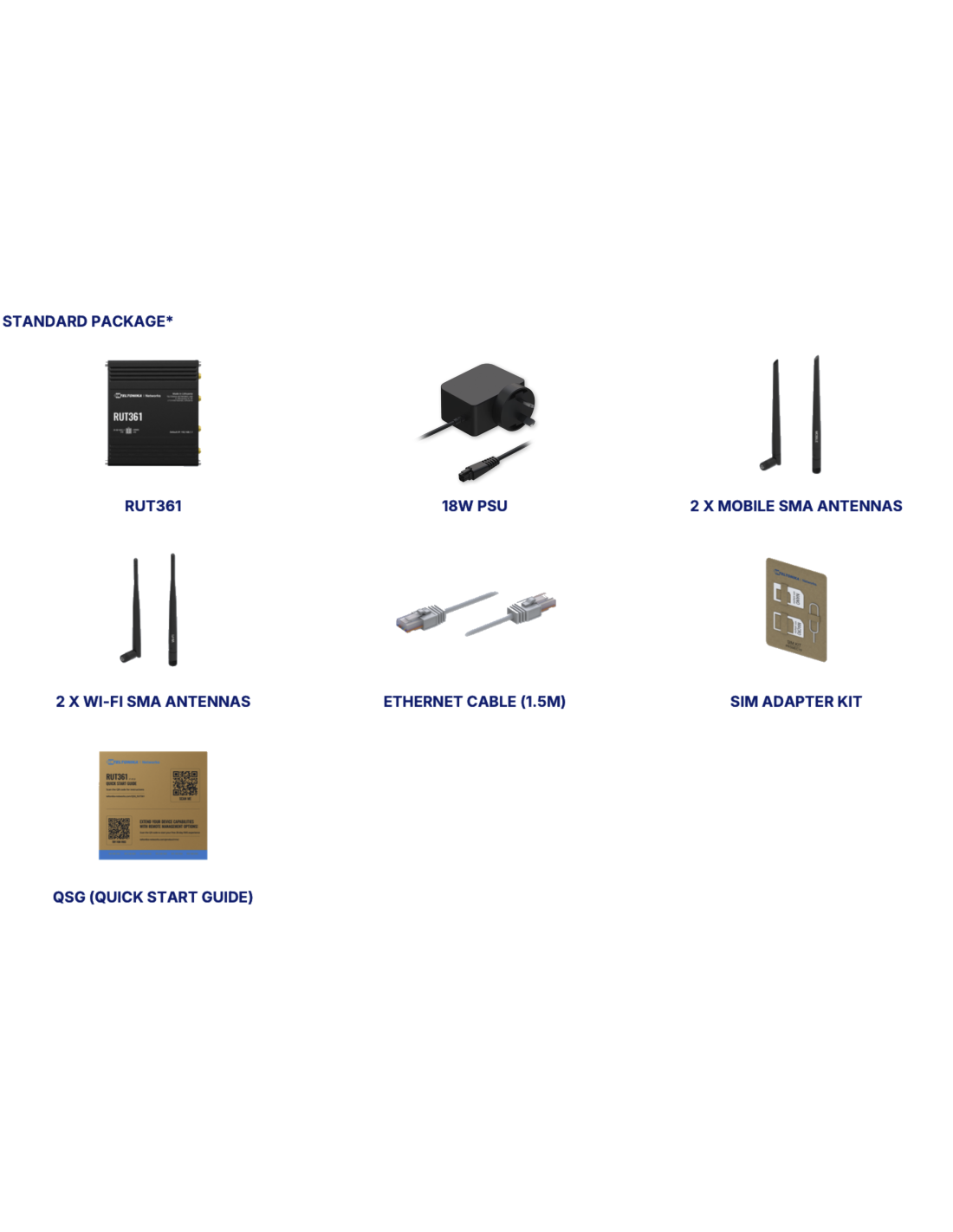

Standard package*

*Standard package contents may differ based on standard order codes.

Quantity Unit price You Save
5 $392.39 $40.04

Related Products & Accessories



RUT361-Industrial Cellular Router

Ideal for:

Sustainable energy
Easy monitoring of wind turbines, solar panels, and other infrastructure
in remote, rural, or offshore locations		 Smart agriculture
Seamless connectivity for remote farm management, from monitoring
crops and livestock to automated feeding and controlling climate
systems		 Smart city applications
Reliable connectivity for CCTV cameras, traffic management systems,
billboards, digital signage, retail applications, and more

Specifications

Mobile
Mobile module 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless
Wireless mode 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi users Up to 50 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile
Load balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Security
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation Let's Encrypt and SCEP certificate generation methods
802.1x Port-based network access control server

VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA
Supported modes Client, Server
Supported connection types TCP

MODBUS
Supported modes Server, Client
Supported connection types TCP
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes Station, Outstation
Supported connection TCP

DLMS
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP

API
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT Platforms
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flash

Firmware / Configuration
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Input / Output
Input Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

Power
Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE (Optional - different hardware required; contact your sales manager)
Power consumption Idle: < 2.4 W, Max: < 4.7 W

Physical Interfaces

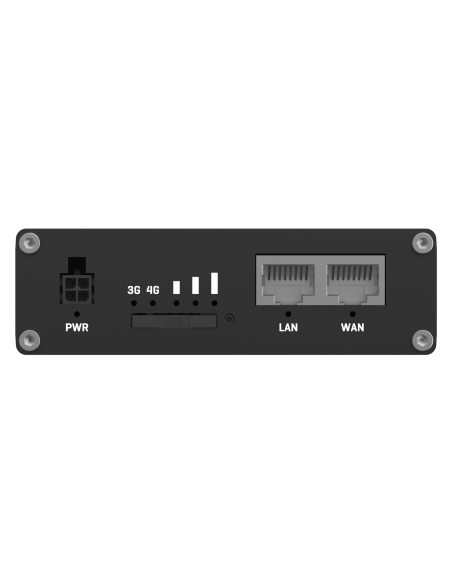

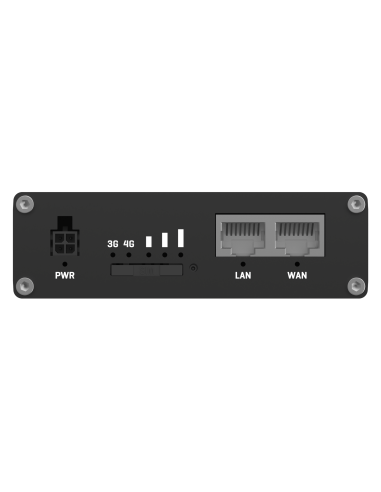

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Configurable I/O pins on 4-pin power connector
Status LEDs 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector

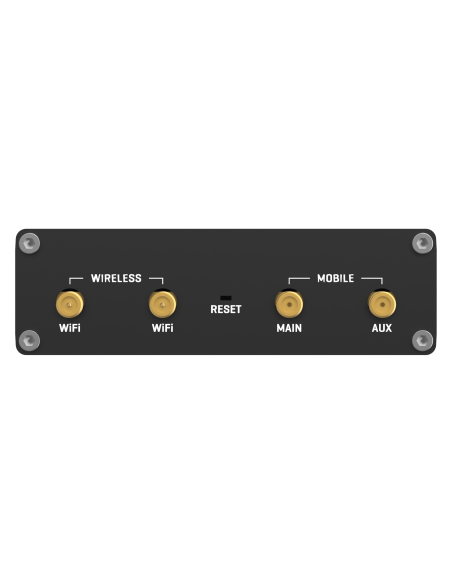

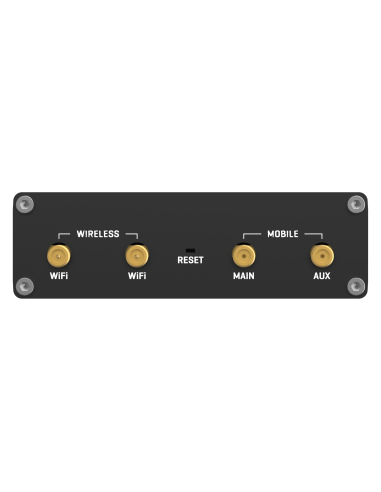

Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button

Physical Specification
Casing material Aluminium housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 243 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals
Regulatory CE, UKCA,FCC, IC, RCM, CB, WEEE, RoHS, REACH

EMC Emissions & Immunity
Standards EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019 + A2:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3: 2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
RF Standards
EN 300 328 V2.2.2
EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1

Safety
Standards CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM: AS/NZS 62368.1:2018
CB: IEC 62368-1:2018

Safety (Ordinary Locations)
Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
Device Type
Router
Device Features
Industrial
Inputs/Outputs
RMS Compatible
Ethernet Ports
2 Eth ports
Connectivity
4G LTE Cat 6
Cellular Connectivity
Cellular
Wi-Fi
Wi-Fi 4
4779051840793
RUT361
No reviews

Related Products & Accessories

RUT 950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router
Out Of Stock
Mobile Networking

RUT 950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router

Teltonika
RUT950
$374.06
RUT950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router Please note this unit is EOL. RUT951 is the replacement. The RUT950 is a highly reliable and secure 4G LTE router designed for professional M2M & IOT applications, supporting up to 100 Mbps download and 50 Mbps upload speeds. This device comes in a durable aluminium enclosure...
View
Teltonika RUTX09 Dual SIM 4G LTE CAT6 Mobile Wireless Router
*** Out of stock ATM, Available On Backorder ***
Mobile Networking

Teltonika RUTX09 Dual SIM 4G LTE CAT6 Mobile Wireless Router

Teltonika
RUTX09
$488.40
RUTX09 The RUTX09 from Teltonika is a powerful 4G LTE mobile wireless router designed as a main or backup internet source where steady connection and high data throughput is required. Equipped with dual SIM slots and (4) Gigabit Ethernet ports, the RUTX09 also has all advanced RutOS software and security features. Teltonika RUTX09 4G LTE CAT6 Router Key...
Teltonika RUTX11 Industrial Dual SIM 4G LTE CAT6 Gigabit Router w/ Dual Band WiFi
*** Out of stock ATM, Available On Backorder ***
Mobile Networking

Teltonika RUTX11 Industrial Dual SIM 4G LTE CAT6 Gigabit Router w/ Dual Band WiFi

Teltonika
RUTX11
$528.00
RUTX11 The RUTX11 from Teltonika features a wide range of internal hardware interfaces that allow this device to be used in power hungry industrial applications where speed and robustness are at the heart of the network solution. 4G LTE Cat 6 allows for download speeds up to 300 Mbps, and the (4) Gigabit Ethernet ports allow for seamless, fast data...
Teltonika RUT955 Industrial Dual-SIM 4G/LTE & WiFi cellular router
Out Of Stock
Mobile Networking

Teltonika RUT955 Industrial Dual-SIM 4G/LTE & WiFi cellular router

Teltonika
RUT955
$405.90
RUT955: Teltonika Industrial Dual-SIM 4G/LTE & WiFi cellular router Teltonika RUT955 LTE Router, Wireless N, 4G/LTE, CAT 4 up to 150Mbps, 3x LAN Port, 1x WAN Port, 2x SIM Slot, Auto Switch between each SIM, SIM Idle Protection, RS-232/RS-485 Port, GNSS Positioning, Geofencing Functionality Compatible with the Teltonika Networks Remote Management...
View
TELTONIKA RUTX12 – 3G/4G CAT6 DUAL MODULE ROUTER WITH WIFI / GPS / BLUETOOTH
Last items in stock
Mobile Networking

Teltonika RUTX12 3G-4G Cat6 Dual Module Router with WiFi - GPS - Bluetooth

Teltonika
RUTX12
$759.00
RUTX12 Cat6 Dual Module Router with WiFi - GPS - Bluetooth FEATURES    Two LTE modules working simultaneously can provide speeds up to 600 Mbps    Instant failover switching    5 x Gigabit Ethernet speeds up to 1000 Mbps    Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps    Teltonika Remote Management System compatible    Easy to use, secure,...
Teltonika RUTXR1 Enterprise SFP/LTE Router
In Stock
Ethernet Routers

Teltonika RUTXR1 Enterprise SFP/LTE Router

Teltonika
RUTXR1
$708.40
Teltonika RUTXR1 Enterprise SFP/LTE Router Up to 300Mbps with Carrier Aggregation 5 x Gigabit Ethernet ports, SFT port Wave-2 802.11ac Dual Band WIFI. New Generation 2-in-1 LTE Router and SFP Router, 5x Gigabit Ethernet, 1x SFP, 1x Console WAN, LTE, 4G/LTE-Advanced / 3G / 2G, Fiber Optics, DualSIM, CAT6, VPN, USB, SDK, Instant FailoverSwitch,...
Teltonika RUT360 LTE CAT6 Industrial Cellular Router 802.11 RMS
Last items in stock
Mobile Networking

Teltonika RUT360 LTE CAT6 Industrial Cellular Router 802.11 RMS

Teltonika
RUT360
$389.40
RUT360 RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks. RUT360  is  equipped  with  two  Ethernet  interfaces,  802.11  b/g/n  WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps....
Comments (0)
No customer reviews for the moment.
Product added to wishlist
Product added to compare.

We use cookies to ensure that we give you the best experience on our website,

if you continue to use this site we will assume that you are happy with it.
