RB4011iGS+5HacQ2HnD-IN
*** Out of stock ATM, Available On Backorder ***
$507.10
Tax included

RB4011iGS+5HacQ2HnD-IN

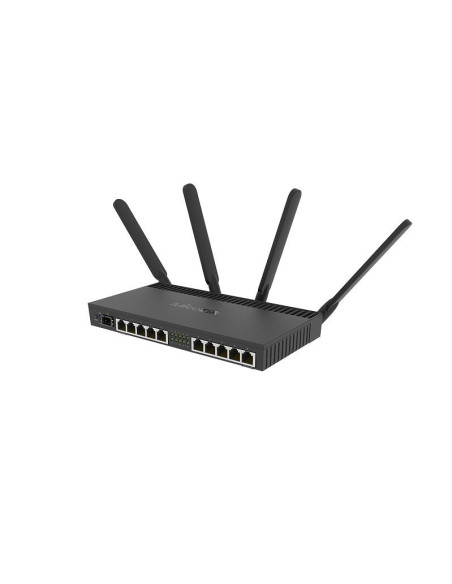

The RB4011iGS+5HacQ2HnD-IN from MikroTik is a powerful router in the 4011 series with a quad-core Cortex A15 1.4GHz CPU and 1GB RAM in a solid, matte black metal desktop case. The RB4011 series features (10) Gigabit Ethernet ports, (1) SFP+ port (transceiver not included). This RB4011 model features dual band 802.11abgn ac wireless and comes with (2) rackmount ears which will securely fasten the RB4011iGS+RM into a standard 1U rack space.

The MikroTik RouterBOARD series is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 5 RouterOS license.



Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 45°C



Powering

Details
PoE in Passive PoE
PoE out Passive PoE up to 57V
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 420 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 44 W
Max power consumption without attachments 23 W


Wireless


Wireless 5 GHz number of chains 4
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz standards 802.11ac MU-MIMO
AC speed AC2000
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA9984
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD


Ethernet


10/100/1000 Ethernet ports 10


Fiber


SFP+ ports 1


Peripherals


MiniPCI-e slots 1
Serial port RJ45


Other


PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 29 -81
MCS0 33 -96
MCS7 28 -77
MCS9 26 -72

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 28 -100
11MBit/s 28 -94
6MBit/s 29 -96
54MBit/s 25 -80
MCS0 26 -96
MCS7 24 -79
Device Type
Router
Device Features
PoE Powered
SFP+ Ports
1
Wireless System
5GHz
Ethernet Ports
10 Ports 10/100/1000
Serial console port
RJ45
PoE in
Passive
PoE out
Passive
4752224002693
RB4011iGS+5HacQ2HnD-IN
