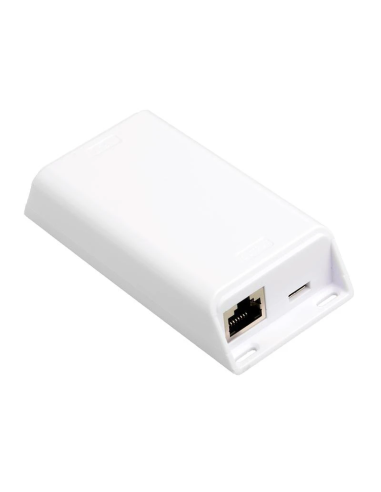

GAT-USBC-REV2 25W 802.3at POE+ to USB Type C Power Delivery with Separate Ethernet Data

GAT-USBC-REV2 - 25W 802.3at POE+ to USB Type C PD with Separate Ethernet Data

Product Details

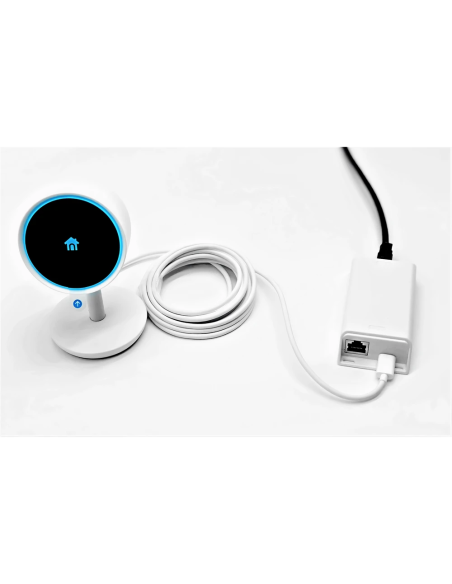

• Compatible with USB Type C devices like iPad Pro 12.9", Nest Exterior Cameras, Google WiFi Mesh Router and other USB-C Devices
• Ideal for extending continuous power to USB-C Devices requiring up to 25 watts
• Output with Power Delivery negotiation at 5V, 9V, 12V, 15V, 20V
• Max Output - 25.5 Watts
• Works with IEEE 802.3at (POE+) switch or injector (sold separately)

Product Specifications

• Connector Types: USB Type C
• Data Rate: 10/100/1000
• Dimensions: 4.5 x 2 x 1 in
• Efficiency: 90%
• Input Voltage Range: 44-56 volts (IEEE 802.3at compliant)
• LEDs Per Port: Green (POE) / Yellow (USB-C)
• Max Power for Kit: 25 watts
• Mount Type: Wall or DIN rail clips
• Operating Humidity: 5% to 90%
• Operating Temperature Range: -10 - 60C
• Output Voltage:

• Output Current: 3A/5v, 2.4A/9v, 2A/12v, 1.7A/15v, 1.3A/20v; REV 2
• Output: 5v/3A; 9v,2.4A; 12v,2A; 15V,1.5A; 20V,1.3A

• PoE Method: IEEE 802.3at / PoE+ / Passive 30 watt
• PoE Mode/Pinout: Mode A/B
• PoE Standard: IEEE 802.3at
• Power Input: 25.5 watts
• Weight: 3 oz
