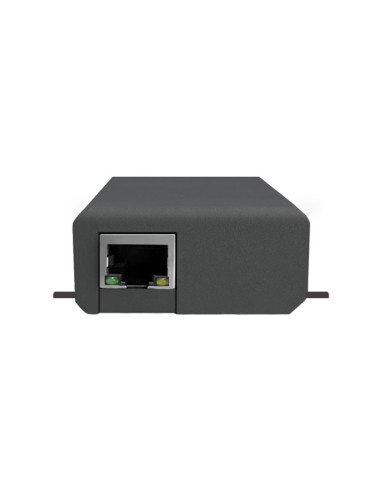

PT-PTC-AT : 25W POE to USB C splitter
PT-PTC-AT
In Stock
$73.00
Tax included
PT-PTC-AT POE to data and USB C Splitter (PD)
PT-PTC-AT is a Type-C PoE Splitter rated networking converter, special convert power&data from PoE to Type-C devices.

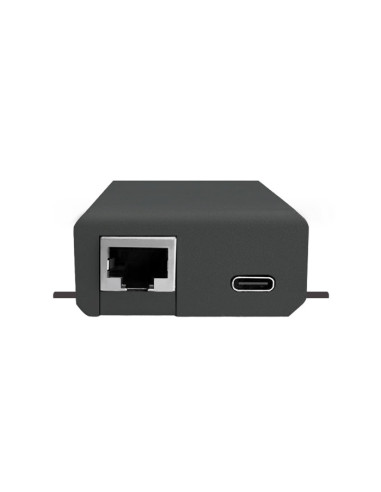

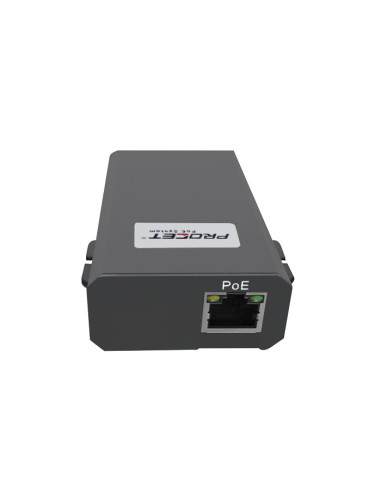

Only works for an indoor environment, which designed to be powered from the IEEE802.3at PoE switch or PoE injector. It is with 1 PoE port for 802.3at standard input and 1 Type-C port for power output and 1 RJ45 port for data output. The data speed is 10/100/1000Mbps (Gigabit). This converter output totals 25W for Type-C PDs and the voltage output from the 5V-20V base on the required of your Type-C PDs. It is designed with OVP, OCP, SCP, then worked safety for the Type-C PDs, such as computers, IPad, Macbook, Google Wifi, etc.
Enclosed in an IP40 fire retardant metal case, It operates with a wide input voltage of 44-57 VDC. The standard effective distance is 100m from PoE switch or injector to Type-C converter over Cat5/5e/6 cables.
Output: 5V 3.4A, 9V 2.8A, 12V 2.1A, 15V 1.8A, 20V 1.3A, Max power up to 25W
PT-PTC-AT POE to data and USB C Splitter (PD, 25W, 802.3at)
Specifications
| Parameter | Description |
| Key Features |
Type-C PoE Splitter（USB C PoE adapter)For Type-C devices indoor useoutput 5V-20V |
| Part Number | PT-PTC-AT |
| Ports condition | Type-C Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3at, 802.3af RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) & 3/6(+), 1/2(-) Output Power Voltage:20-50V User Port Power: 25W Guaranteed |
| Input | DC Input Voltage: 44-57Vdc DC Input Current: 4A |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*1,Type-C Port*1 Size: 91 X 51.11 X 24.11mm Weight: 142g |

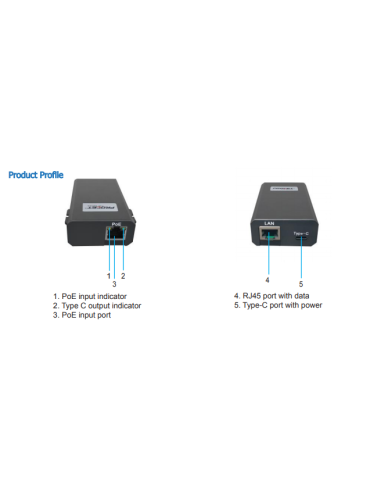

| LED Indicator | PoE input indicator: Green Type C output indicator: Yellow |
| Warranty | 1 year |
