PT-PTC-BT : PROCET 50W POE to USB TYPE C-Converter

PT-PTC-BT
In Stock
$77.00
Tax included

PT-PTC-BT is a Type-C PoE Splitter rated networking converter, special convert power&data from PoE to Type-C devices. It is with 1 PoE port for 802.3bt standard input and 1 Type-C port for power output and 1 RJ45 port for data output.

Designed only works for indoor environment, The data speed is 10/100/1000Mbps (Gigabit). This converter output total 50W for Type-C PDs, and the voltage output from the 5V-20V base on the required of your Type-C PDs. It is designed with OVP, OCP, SCP, then worked safety for the Type-C PDs, such as computers, IPad, Macbook, Google Wifi, etc.

Enclosed in an IP40 reflective metal case, designed to be powered from the IEEE802.3bt PoE switch or PoE injector. The standard effective distance is 100m from PoE switch or injector to Type-C converter over Cat5/5e/6 cables. with small size, bright, and easy to pair with nearly everything else.

Output: 5V 3.4A, 9V 3.0A, 12V 3.0A, 15V 3.0A, 20V 2.5A, Max power up to 50W



PT-PTC-BT: PROCET 50W POE to USB TYPE C-Converter

Specifications

Parameter Description
Key Features Type-C PoE Splitter(USB C PoE adapter)for Type-C devices
Part Number PT-PTC-BT

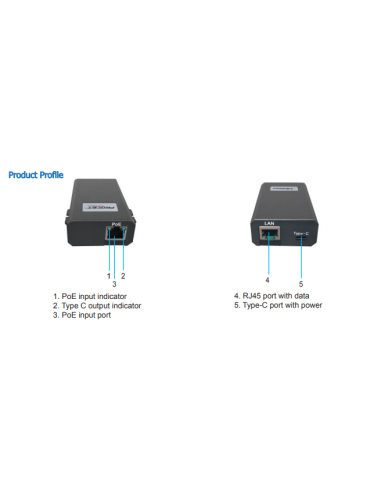

Ports condition PoE input port*1, RJ45 Data output port*1, USBC power output port*1
Regulatory Compliance IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin   Assignment and Polarity:
3/6(+), 1/2(-), 4/5(+), 7/8(-)
Output Power Voltage: 5V-20V
User Port Power total:50W Guaranteen
Input DC Input Voltage:44-57Vdc
DC Input Current: 4A
Working Environment Operating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics Case: Metal
Color: BlackMounting
IP Rated: IP40
Connectors: Shielded RJ-45*1,Type-C Port*1
Size: 91 X 51.11 X 24.11mm
Weight: 142g(0.31lb)
LED Indicator PoE input indicator: Green
Type C output indicator: Yellow
