GAF-PiHat Power Over Ethernet (PoE) HAT for Raspberry Pi 3 B+ 4 and 802.3af PoE Network
Generic
GAF-PiHat
In Stock
$31.90
Tax included
GAF-PiHat
Raspberry Pi HAT "Hardware Attached on Top" Accessory

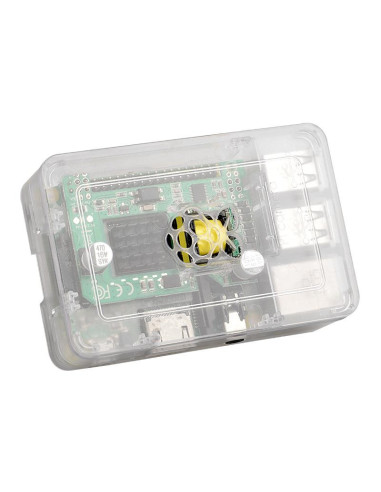

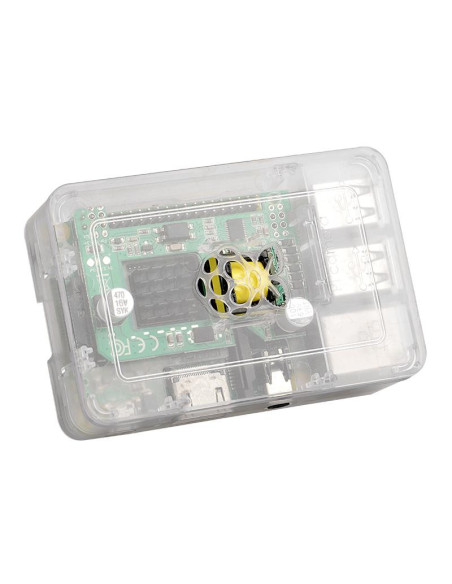

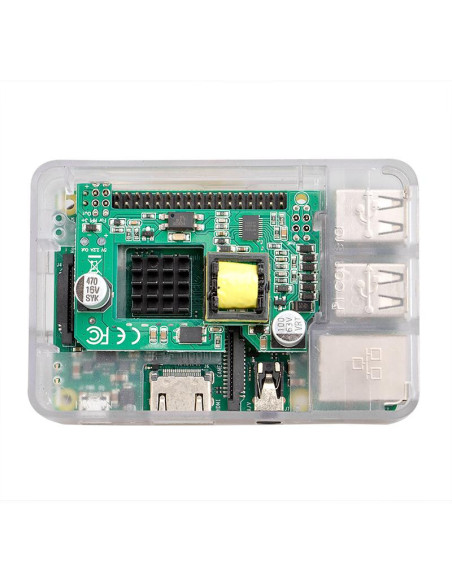

Smaller, more efficient Pi-HAT than the Official one from Raspberry Pi. Design fits in the Official Pi enclosure* and takes up less of the board.
*Raspberry Pi Enclosure and Raspberry Pi shown in images are NOT included
GAF-PiHat - Power Over Ethernet (PoE) HAT for Raspberry Pi 3 B+ 4 and 802.3af PoE Network
Product Features:
- Fits Raspberry Pi 3 B+ and Raspberry Pi 4 (Not Included)
- Works with an IEEE 802.3af switch or 48v injector (Active PoE Only)
- Smaller, more space efficient than Official Pi-HAT

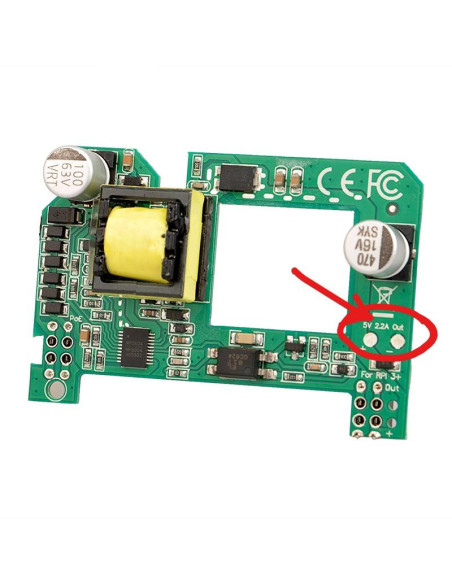

- Optocoupled with flyback topology to prevent shorting the board
- Fanless
- Increases efficiency above 90% for DC to DC conversion
Product Specifications
- Certifications: CE, FCC, RoHS
- Connector Types: Two 4 pin x 1 mm
- Data Rate: 10/100/1000
- Dimensions: 2 5/8" x 1 1/2" x 7/10"
- Efficiency: 90%
- Max Current: 270 mA
- Mount Type: Board Mounted
- Operating Humidity: 10-90% non condensing
- Operating Temperature Range: 0 - 40C
- Output Voltage: 5 volt
- PoE Mode/Pinout: Mode A
- PoE Standard: IEEE 802.3af
- Weight: 1 oz
- Device Type
- Power Over Ethernet
696305322772
GAF-PiHat
