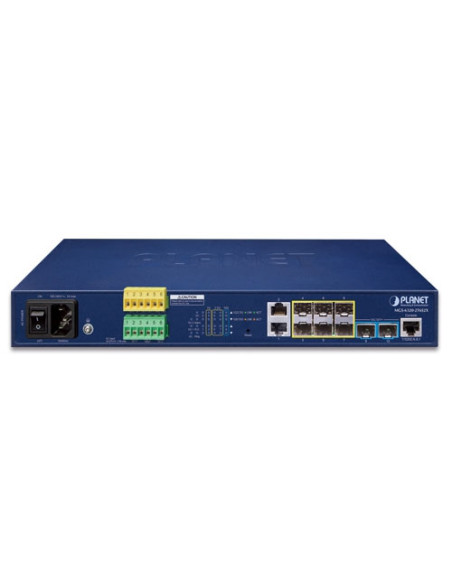

MGS-6320-2T6S2X

Multi-gigabit SFP Fiber Port Switch for Growing Long-Reach Networking of Enterprises, Telecoms and Campuses

PLANET MGS-6320-2T6S2X Layer 3 Managed Metro Ethernet Switch supports both IPv4 and IPv6 protocols and Layer 3 OSPFv2/v3 dynamic routing and static routing, and provides 2 100/1000Mbps TP ports, 2 100/1000Mbps dual speed SFP fiber ports, 4 100/1000/2500Mbps SFP ports and 2 1G/2.5G/10Gbps SFP+ ports delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 68Gbps in the temperature range from -10 to 60 degrees C without any packet loss and CRC error, which greatly simplify the tasks of upgrading the enterprise LAN for catering to increasing bandwidth demands. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, the MGS-6320-2T6S2X is specially designed for service providers to deliver profitable long-distance Ethernet network and adopts “Front Access” design, making the wiring and maintenance of the MGS-6320-2T6S2X placed in a cabinet very easy for technicians.

Cyber Security L3 OSPF Routing RING 10Gbps SFP+ Redundant power AC/DC



MGS-6320-2T6S2X - PLANET L3 2-Port 100/1000T + 2-Port 100/1000X SFP + 4-Port 2.5G SFP + 2-Port 10G SFP+ Metro Ethernet Switch

Flexible and Extendable 10Gb Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the MGS-6320-2T6S2X supports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With its 2-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGS-6320-2T6S2X provides broad bandwidth and powerful processing capacity



Redundant Ring, Fast Recovery for Critical Network Applications

The MGS-6320-2T6S2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.





AC and DC Redundant Power to Ensure Continuous Operation

To enhance the operation reliability and flexibility, the MGS-6320-2T6S2X is equipped with one 100 ~ 240V AC power supply unit and two additional 24 ~ 57V DC power input connectors for redundant power supply installation. The Redundant Power Systems are specifically designed to handle the demands of high tech facilities requiring the highest power integrity. Furthermore, with the 24~ 57V DC power supply implemented, the MGS-6320-2T6S2X can be applied as the telecom level device that could be located in the electronic room.



Digital Input and Digital Output for External Alarm

The MGS-6320-2T6S2X supports Digital Input, and Digital Output on the front panel. The external alarm offers technicians the ability to use Digital Input to detect, and log external device status (such as door intrusion detector) for the alarm as Digital Output could be used to alarm if the MGS-6320-2T6S2X has port link down, link up or power failure.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.



Cost-effective IPv6 Managed Gigabit Switch Solution for Metro Ethernet

To fulfill the demand for ISP to build the IPv6 (Internet Protocol version 6) network infrastructure speedily, the MGS-6320-2T6S2X supports both IPv4 and IPv6 management functions. It can work with original IPv4 network structure and also support the new IPv6 network structure. With easy and friendly management interfaces and plenty of management functions included, the MGS-6320-2T6S2X Metro Ethernet Switch is the best choice for ISP and service providers to build the IPv6 FTTx edge service and for industries to connect with IPv6 network.



Layer 3 Routing Support

The MGS-6320-2T6S2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Robust Layer 2 Features

The MGS-6320-2T6S2X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the MGS-6320-2T6S2X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The MGS-6320-2T6S2X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

The MGS-6320-2T6S2X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Advanced IP Network Protection

The MGS-6320-2T6S2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.



Efficient Management

For efficient management, the MGS-6320-2T6S2X is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the MGS-6320-2T6S2X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.





Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.



Flexibility and Extension Solution

The mini-GBIC slots built in the MGS-6320-2T6S2X support multi-speed, 100BASE-FX, 1000BASE-SX/LX, 2500BASE-X and 10GBASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The MGS-6320-2T6S2X  supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

1588 Time Protocol for Industrial Computing Networks

The MGS-6320-2T6S2X is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the MGS-6320-2T6S2X further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection.

Applications

Key Features

Specifications

Hardware Specifications
Copper Ports 2 100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(Port 1 and port 2)
SFP Ports 2 1000BASE-SX/LX/BX SFP ports (Port 3 and port 4)
Compatible with 100BASE-FX SFP.
4 100/1000/2500BASE-X SFP ports (Port 5 and port 8)
SFP+ Ports 2 1000/2500/10GBASE-X SFP ports (Port 9 and port 10)
Console 1 x RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
RAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 330 x 153 x 44 mm, 1U high
Weight 1486g
Power Requirements AC 100~240V, 50/60Hz 1A
24V DC @ 1.5A, Range: 24V ~ 57V DC
Power Consumption Max. 16.2 watts/55.2 BTU (AC input)
Max. 17.6 watts/60 BTU (DC input)
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V
DI/DO 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V)
 Level 1: 2.1V~24V (±0.1V)
 Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max.
ESD Protection 6KV DC
LED System:
 PWR (Green), DC 1 (Green), DC 2 (Green)
 DI/DO (Red), Alarm (Red), Ring (Green), Ring Owner (Green)

Gigabit RJ45 Ports (Ports 1 to 2)
 100 LNK/ACT (Amber)
 1G LNK/ACT (Green)

Gigabit SFP Ports (Ports 3 to 4)
 100 LNK/ACT (Amber)
 1G LNK/ACT (Green)

Gigabit SFP Ports (Ports 5 to 8)
 100 LNK/ACT (Amber)
 1G/2.5G LNK/ACT (Green)

10 Gigabit SFP Ports (Ports 9 to 10)
 10G LNK/ACT (Amber)
 1G/2.5G LNK/ACT (Green)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 68Gbps/non-blocking
Throughput 50.59Mpps @ 64Bytes packet
Address Table 8K entries, automatic source address learning and aging
RAM 512Mbytes
Flash 64Mbytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10KB
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table Max. 32 static route entries
Max. 1K routing table entries
Routing Protocols IPv4 RIPv1/v2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports 5 trunk groups with 10 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
Ring Supports ERPS, and complies with ITU-T G.8032
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~13128Mbps
Egress: 500Kb~13128Mbps
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 - MAC Address
 - IP Address
 - Ethertype
 - Protocol Type
 - VLAN ID
 - DSCP
 - 802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management Functions
Basic Management Interfaces Console; Telnet; Web Browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET NMS system and CloudViewer
Event Management Remote Syslog
Local System log
SMTP
SNMP MIBs SNMP MIBs
RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2453 RIP v2
Environment
Operating Temperature: -10 ~ 60 degrees C for DC power input
       0 ~ 50 degrees C for AC power input
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Device Features
TAA Compliant
Ports
2 100/1000TX ++ 2 100/1000X SFP + 4 100/1000/2500X SFP + 2 1G/2.5G/10GX SFP+
Type
Managed
Power Consumption
Max. 16.2W/55.2BTU (AC input), 17.6W/60BTU (DC input)
Operating Temperature
-10 to 60°C
Throughput
50.59Mpps@64Bytes
Supports
Cloudviewer App (more info. below)
Switch Fabric
68Gbps/non-blocking
4711605286725
MGS-6320-2T6S2X
