Planet ISW-621TF

PLANET ISW-621TF Industrial Ethernet Switch

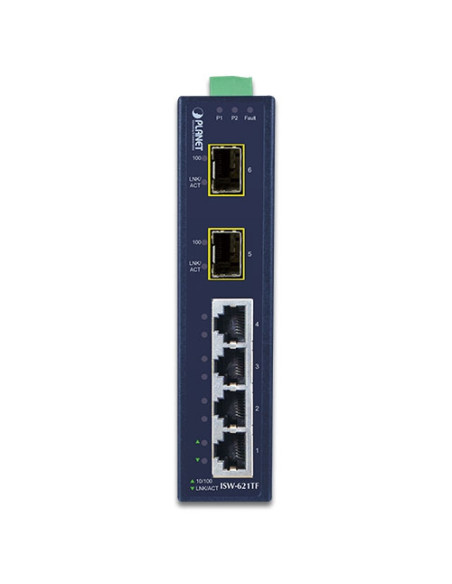

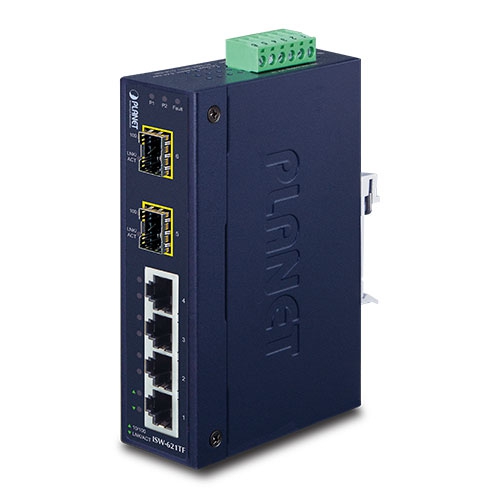

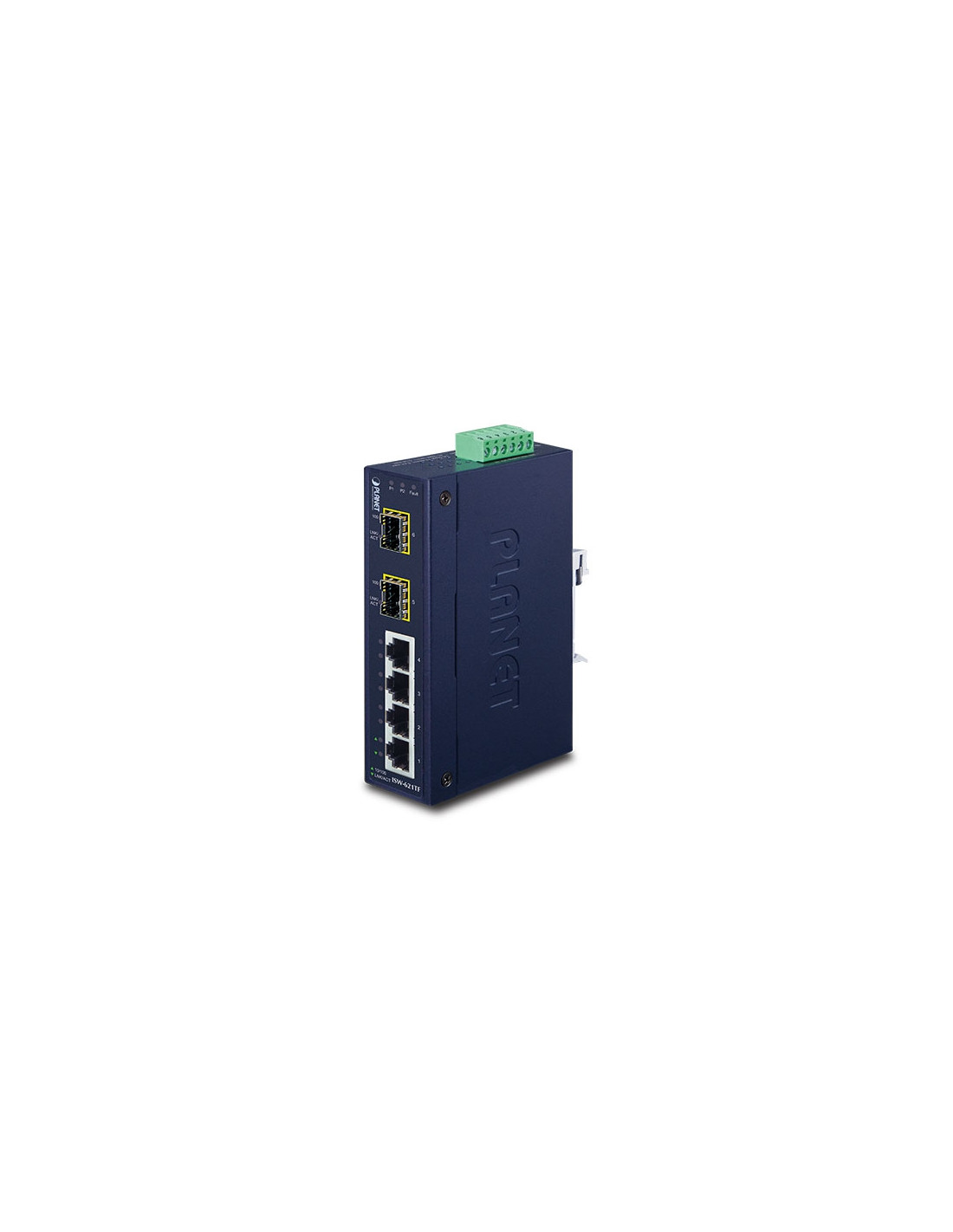

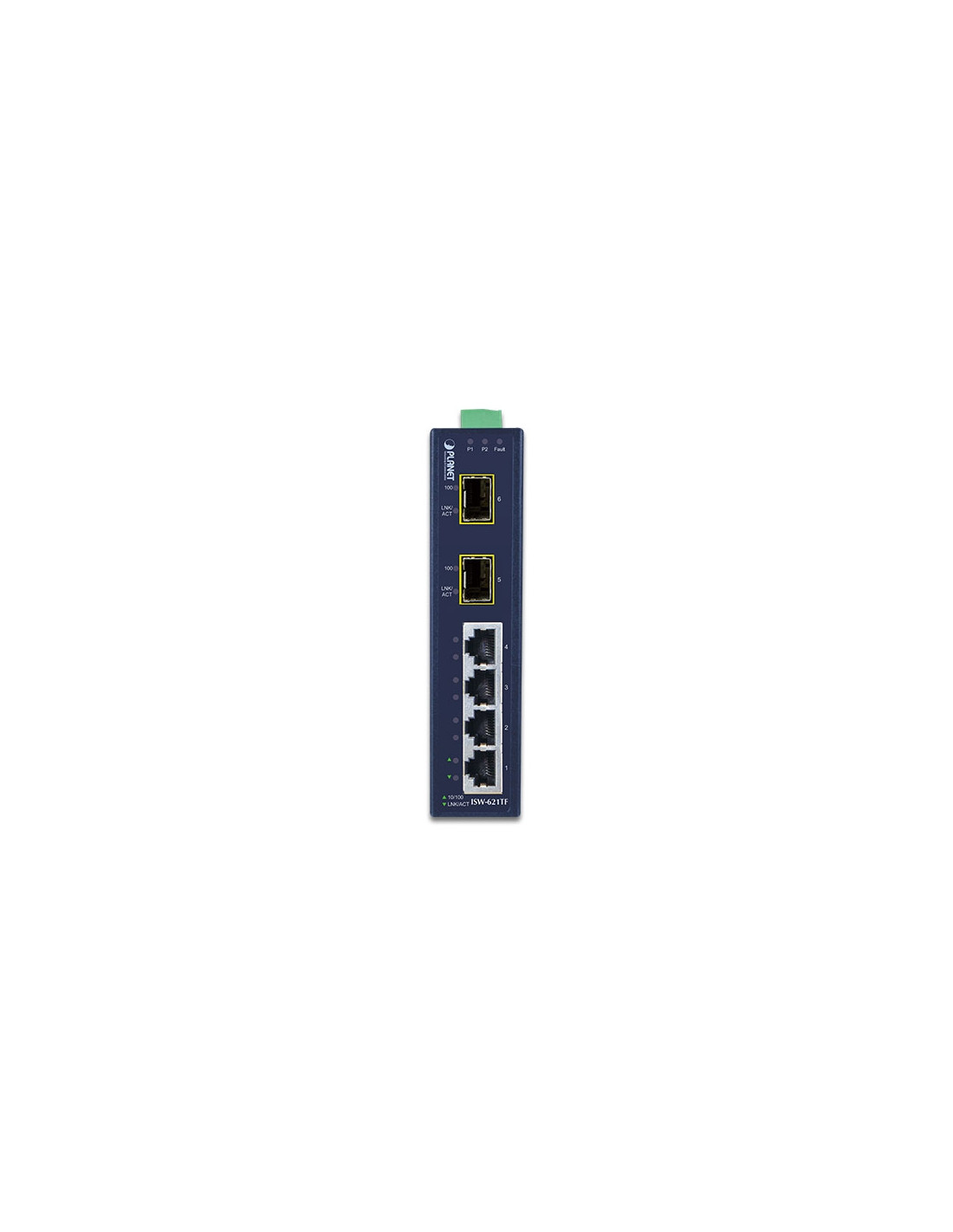

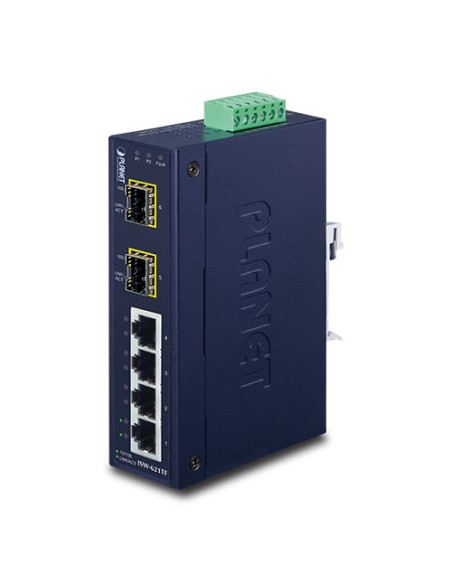

The ISW-621TF is a 6-port industrial Ethernet switch designed for extreme environments with operating temperatures from -40 to 75°C. It features four 10/100Base-TX ports and two 100Base-FX SFP slots, supporting both multi-mode and single-mode fiber connectivity. The switch includes redundant power input with polarity reverse protection and is compatible with DIN rail or wall mount installation.

Key Features

  • ✓4 × 10/100Base-TX RJ45 Ports and 2 × 100Base-FX SFP Fiber Slots
  • ✓Redundant 12–48V DC Power Input with Reverse Polarity Protection
  • ✓Supports Multi-Mode and Single-Mode 100Base-FX SFP Fiber Connectivity
  • ✓IP30 Industrial Metal Enclosure with DIN-Rail and Wall-Mount Installation

Note: Power supply is not included, please select from the checklist below.

Quantity Unit price You Save
4 $130.09 $16.09

Related Products & Accessories



Planet ISW-621TF Industrial Ethernet Switch  4 Port 10/100Base-TX + 2 Port 100Base-FX SFP

Planet ISW-621TF



The PLANET ISW-621TF is designed to provide reliable Ethernet connectivity for industrial networks where stable operation and long-distance communication are essential. Combining Fast Ethernet copper interfaces with dual SFP fiber uplinks, it allows industrial devices, control systems, and remote network segments to be connected efficiently while maintaining flexibility for future network expansion.

Its rugged IP30 metal enclosure, redundant power inputs, reverse polarity protection, and integrated power failure alarm help maintain continuous operation in demanding industrial environments. With support for both DIN-rail and wall mounting, the switch can be easily deployed inside industrial cabinets, manufacturing facilities, transportation infrastructure, and utility installations.

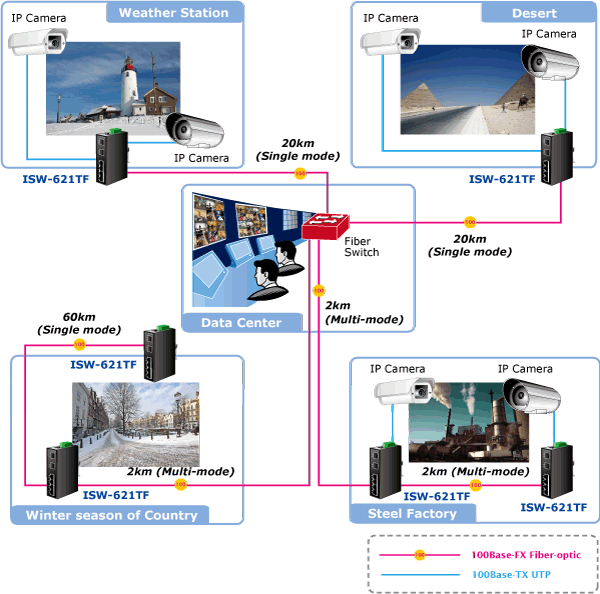

Compatible with both multi-mode and single-mode 100Base-FX SFP transceivers, the ISW-621TF enables dependable fiber connectivity across a wide range of industrial applications. Whether deployed in factory automation, intelligent transportation systems, energy infrastructure, or surveillance networks, it provides a reliable networking solution built for long-term industrial operation.

Technical Specifications

Specification Value
Copper Interface 4 × 10/100Base-TX RJ45 Ports with Auto-Negotiation and Auto MDI/MDI-X
Copper Cable Support 10Base-T: Cat.3, Cat.4, Cat.5 UTP (Up to 100 m)
100Base-TX: Cat.5, Cat.5e, Cat.6 UTP (Up to 100 m)
Fiber Interface 2 × 100Base-FX SFP Slots (LC)
Supported Fiber Types Multi-mode: 50/125μm, 62.5/125μm
Single-mode: 9/125μm
Dimensions (W × D × H) 135 × 87.8 × 32 mm
Weight 442 g
Installation DIN Rail Mount or Wall Mount
Power Features

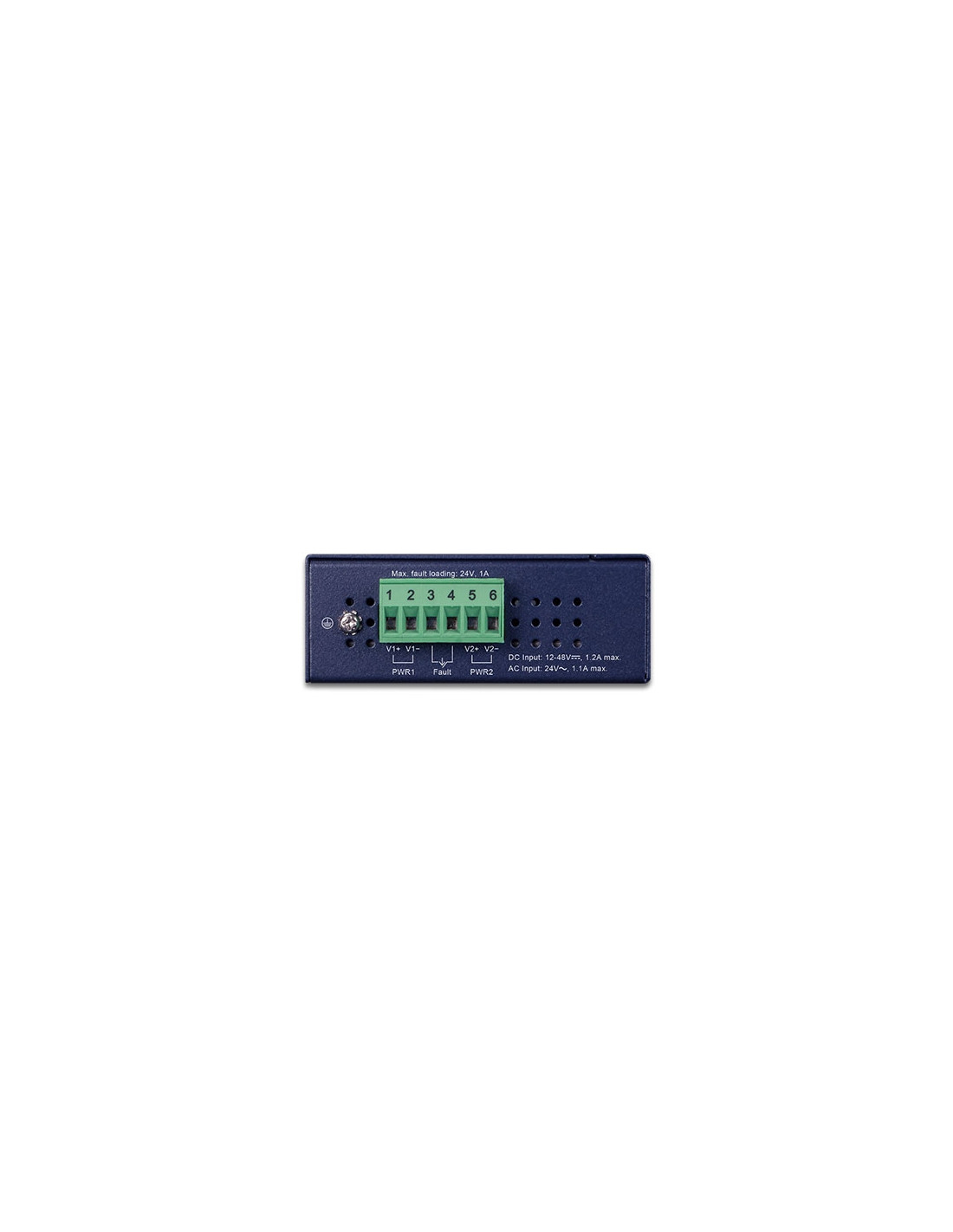

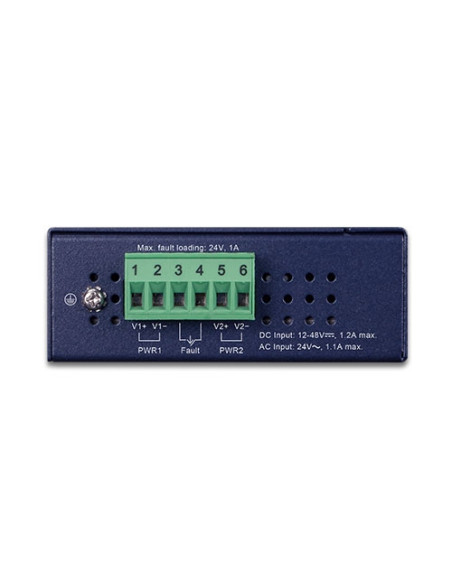

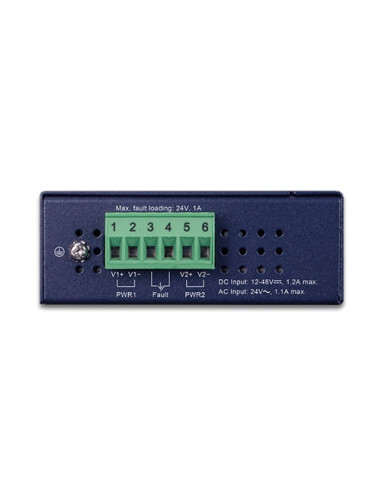

Power Input 12–48V DC Redundant Power Input with Reverse Polarity Protection
Maximum Power Consumption 16W
Heat Dissipation 54 BTU
Alarm Output Power Failure Relay Output
Relay Rating: 1A @ 24V DC
Switch Performance
Switching Method Store-and-Forward
MAC Address Table 2K Entries
Packet Buffer 1 Mbit
Flow Control Back Pressure (Half Duplex)
IEEE 802.3x Pause Frame (Full Duplex)
Switch Fabric 1.2 Gbps
Forwarding Rate 0.89 Mpps (64-byte Packets)
Standards & Compliance
IEEE Standards IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
Regulatory Compliance FCC Part 15 Class A, CE
Industrial Testing IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environmental Specifications
Operating Temperature -40°C to 75°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 90% RH (Non-Condensing)
Storage Humidity 5% to 90% RH (Non-Condensing)
Device Features
Unmanaged
Ports
4 10/100TX + 2 100FX SFP
Switch Fabric
1.2Gbps
ISW-621TF
