ISW-511TS15 Planet IP30, 4+1 100FX Port Single-mode Industrial Ethernet Switch, (SM, SC, 15km)(-40 ~ 75C)

ISW-511TS15
*** Out of stock ATM, Available On Backorder ***
$203.50
Tax included

ISW-511TS15

The ISW-511TS15 allows for worldwide operation, offering even more efficiency and stability.

Features

  • Physical Ports: 1-port 100Base-FX interface on ISW-511TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance

Layer 2 Features

  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
  • Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
  • High performance Store and Forward architecture
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (Switching Fabric): 1Gbps
  • Integrated address look-up engine, supports 2K absolute MAC addresses
  • 1Mbit on-chip frame buffer
  • Automatic address learning and address aging
  • CSMA / CD Protocol

Industrial Case / Installation

  • IP-30 metal case / protection
  • DIN rail and wall mount design

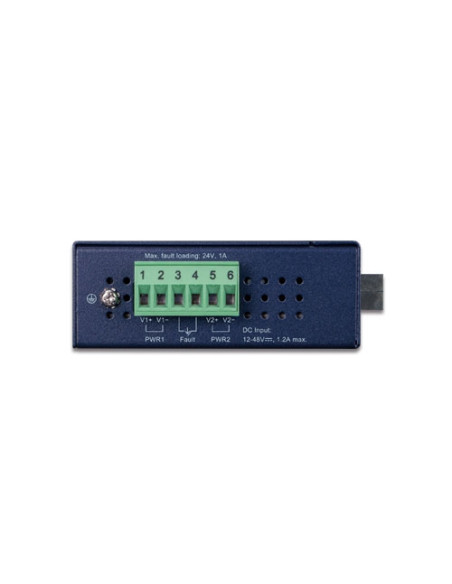

  • 12 to 48V DC, redundant power with polarity reverse protection and connective removable
    　terminal block for master and slave power
  • Supports EFT protection 6000V DC for power line
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C wide operating temperature

Quantity Unit price You Save
3 $196.50 $21.00

Related Products & Accessories



ISW-511TS15-Planet IP30, 4+1 100FX Port Single-mode Industrial Ethernet Switch.

High-Performing Industrial Switch

The ISW-511TS15 is a 4-Port 10/100Base-TX with 1-Port 100Base-FX Industrial Ethernet Switch. Designed specifically for wide-temperature environments, the ISW-511TS15 offers wide-operating temperatures ranging from -40 up to 75°C. The ISW-511TS15 provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of industrial environments.The ISW-511TS1 are ideal for transportation, manufacturing, security and surveillance network deployments.

Versatile Distances

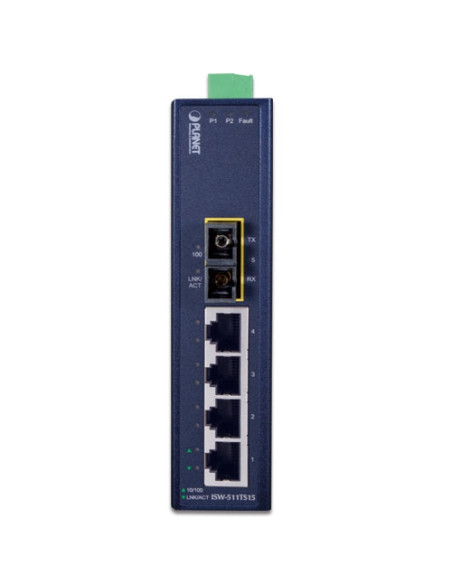

The ISW-511TS15 units feature four 10/100Base-TX auto-negotiation ports and one 100Base-FX port. The ISW-511TS15 is equipped with a 100Base-FX single-mode SC interface to reach transmission distances of up to 15km. .

Flexible Power Supply Inputs

The unit offers dual-redundant, reversible polarity (12V DC to 48V DC) power supply inputs to support applications requiring dual or backup power inputs.The ISW-511TS15 also offers slim for factor that allows either DIN rail or panel mounting.

Wire-Speed Performance

The ISW-511TS15 are equipped with four 10/100Mbps ports with MDI / MDIX and one 100Base-FX fiber-optic SC interface. With 1 GPS non-blocking switch fabric and a 2K MAC address table, the ISW-511TS15 can reliably deliver packets at wire-speeds. The unit is ideal for industrial environments.

Specification

Hardware Specifications
Copper Ports
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X

Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Optical Port
1 x 100Base-FX

Cable
ISW-511TS15: 9/125μm fiber

Mode
ISW-511TS15: Single-mode

Distance
ISW-511TS15: 15km

Frequency
ISW-511TS15: 1310nm

Launch Power
ISW-511TS15: Max. 0dBm, Min. -20dBm

Receive Sensitivity
ISW-511TS15: -32dBm

Max. Input Power
ISW-511TS15: 0dBm
Dimensions (W x D x H) 135 x 97 x 32 mm
Weight 436g
Power Requirements 12 to 48V DC, redundant power input with polarity reverse protection
Power Consumption / Dissipation 13.7 watts / 46 BTU
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
Switch Fabric 1Gbps
Throughput (Packet Per Second) 0.74Mpps @ 64Bytes
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex flow control
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating Operating: 5~90%
Storage: 5~90% (Non-condensing)
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Device Type
Network Switch
Device Features
Industrial
TAA Compliant
Installation Type
DIN-rail
Wall-mount
Ports
4 10/100TX + 1 100FX (SM, SC, 15km)
Type
Unmanaged
Power Consumption
13.7W/ 46BTU
Operating Temperature
-40 to 75° C
Throughput
0.74Mpps @ 64 bytes
Switch Fabric
1Gbps
4711213688300
ISW-511TS15
