Planet IPOE-176S Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter

IPOE-176S
*** Out of stock ATM, Available On Backorder ***
$269.50
Tax included

IPOE-176S

Highly Convenient, Advanced Multi-Gigabit and Robust Industrial PoE++ Splitter

PLANET IPOE-176S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V/19V/24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE device. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. To fulfill the growing industrial applications, the IPOE-176S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-176S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

12V/19V/24V DC Power Output 802.3bt 802.3at End-span Mid-span 75°C~-40°C Metal Housing KG Multi-Gigabit IP 30

Related Products & Accessories



IPOE-176S - PLANET Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter



Quick and Easy 802.3bt PoE++ Network Deployment

If the existing network deployment consists of non-PoE powered devices that require high power to function, the IPOE-176S, powered by an ultra PoE power sourcing equipment, is able to feed the PDs with 802.3bt PoE++  as the splitter can split the data and power into two streams. The PDs gets their power through the splitter’s DC jack and the RJ45 interface accepts only Ethernet data. The following non-PoE PDs can be turned into an PoE++ environment with the IPOE-176S:

  • PTZ speed dome camera
  • Thin client
  • AIO (All-in-One) touch PC
  • Remote digital signage display
  • Non-PoE network devices that need higher power to work normally



The POE-176S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.



Innovative, Selectable DC Power Output Voltage

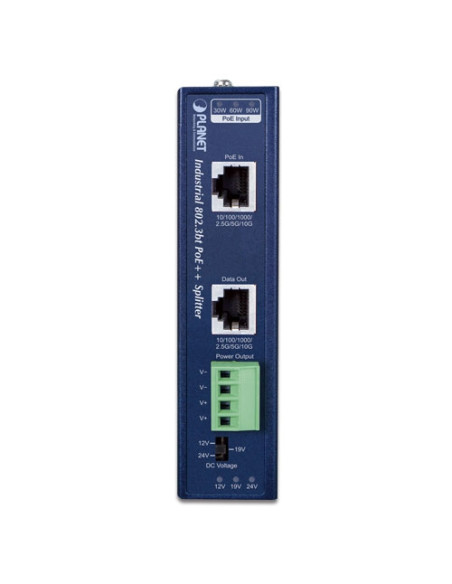

Via the innovative 12/19/24 volt DIP switch on the front panel, the IPOE-176S can supply 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.



Dual Power Output Capability

The IPOE-176S shares its 70-watt output power with not only one power-hungry device but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:

  • IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
  • IP camera (Power 1) + Pan and tilt motor (Power 2)
  • Analog camera (Power 1) + IP video server (Power 2)

Environmentally Hardened Design

With the compact, slim-type IP30 industrial case, the space-saving industrial 802.3bt PoE++ splitter IPOE-176S can be placed in almost any difficult environment. It allows either DIN-rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-176S is the ideal product for co-working with industrial 802.3bt PoE++ type-4 injector which can feed the power to non-PoE devices while also supporting Multi-Gigabit connection speeds.

Applications

Key Features

Specifications

Hardware Specifications
Interface PoE Input Port：
　1 10M/100M/1G/2.5G/5G/10G BASE-T RJ45
Data Output Port：
　1 10M/100M/1G/2.5G/5G/10G BASE -T RJ45
DC Out Plug Connector：
　1 removable 4-pin terminal block
DIP Switch：
　12V/19V/24V DC output
LED Indicators PoE Input:
　30W (Green), 60W (Green), 90W (Green)
DC Voltage:
　12V (Green), 19V (Green), 24V (Green)
Data Rate 10M/100M/1G/2.5G/5G/10Gbps
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 433g
Installation DIN-rail/wall mountable
ESD Protection 4KV
EFT Protection 4KV
Enclosure IP30 metal case
Power Requirements 4-pair 802.3at PoE+ and 802.3bt PoE++
PoE DC 48 ~ 54V
Power Consumption System on with PoE input
　12V DC: 5.5 watts
　19V DC: 6.8 watts
　24V DC: 7.6 watts
Full loading with maximum　
　12V DC: 98.3 watts
　19V DC: 98.5 watts
　24V DC: 97.9 watts
Power Output 802.3 bt type 4 PoE++ input
　12V DC, 6.8A (max.)
　19V DC, 4.3A (max.)
　24V DC, 3.3A (max.)
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7
5G: 4-pair UTP Cat 6/Cat 6A/Cat 7
10G:4-pair UTP Cat 6A/Cat 7
Power over Ethernet
PoE Standard 802.3 bt PoE++
4-pair 802.3at PoE+
Power Output DC 12V/19V/24V by DIP switch control
PoE Power Supply Type End-span + Mid-span
End-span
Mid-span
Power Pin Assignment 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or
1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Remote Power Distance 1G/2.5G speed: 100M (max.)
5G/10G speed: 80M (max.)(cat6A/cat7)
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G/10GBASE-T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet (Type 4)
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature -40~ 75 degrees C
Storage Temperature -40~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Device Features
TAA Compliant
POE Ports
1
Ports
1 10M/100M/1G/2.5G/5G/10G BASE-T
Type
Unmanaged
PoE Standard
802.3bt PoE++ (Type 4)
Power Consumption
Full loading w/max. 12V DC, 6.8A output: 75.45W
Operating Temperature
-40 to 75° C
Console Port
No
4711605287487
IPOE-176S
