Planet BSP-115HP-5A 5-Port Hybrid PoE Solar PoE Switch with 1-Port 1000X SFP

BSP-115HP-5A
Last items in stock
$246.00
Tax included

BSP-115HP-5A

Industry-leading Integration of PoE Technology and Renewable Power System

PLANET BSP-115HP-5A Solar PoE Switch is a solar-powered network switch that incorporates environmental, social and governance (ESG) principles. It can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs. The BSP-115HP-5A is equipped with 5 10/100/1000BASE-T copper ports. Port 1 supports 60-watt PoE and ports 2 to 5 support 802.3at PoE+ injector function. Besides, ports 4 to 5 also provide passive 24V/48V options. Using 24V PoE equipment will improve energy efficiency. When powered by a 24V battery, there is no need to go through the loss of lifting. A total PoE power budget of up to 65 watts and 1 extra 100/1000BASE-X SFP fiber port are especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.

12V/24V Solar PV Auto Charge/Discharge Auto-detect BAT. VDC La/Li LiFe BAT. 24V/48V Intelligent PSE Green Networking


BSP-115HP-5A - Planet 5-Port Hybrid PoE Solar PoE Switch with 1-Port 1000X SFP



Zero-Carbon and Stable Power Supply

The 12V/24V lithium, lead-acid or lithium iron battery gets recharged by way of the BSP-115HP-5A where solar power is sourced. Thus, the BSP-115HP-5A will keep powering PD like wireless PoE AP without a cable and a wired camera connected to its port with a UTP cable. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.



Multi-functional Solar PoE Switch that Supports PV, DC, and Battery Simultaneously

The Solar PoE Switch is a versatile device that supports simultaneous applications of solar (PV), DC, and battery power. Utilizing advanced solar charging control technology, even the voltage is different from DC input. It efficiently converts solar energy into power and provides stable and reliable DC power supply. It is ideal for applications requiring eco-friendly and energy-efficient solutions, such as remote communication base stations, surveillance systems, and network cameras. Its flexible design not only reduces operational costs but also diminishes reliance on traditional energy sources, thereby reducing environmental impact. The Solar PoE Switch represents not just technological innovation but also a substantial contribution to sustainable development, offering the applications a more stable and dependable energy solution.





Intelligent Powered Device Alive Check

The BSP-115 Series can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the BSP-115 Series will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.





Ethernet Data Transmission Distance Extension

The DIP switch provides “VLAN” and “Extend” operation modes.

  • The “VLAN” operation mode features with port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.
  • In the “Extend” operation mode, the BSP-115HP-5A operates on a per-port basis at 10Mbps duplex operation but supports 25-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable.

With this brand-new feature, the BSP-115HP-5A provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation.



Multiple Battery Options for All Market Requirements

The BSP-115 Series features a variety of battery options, including the lead-acid, lithium, and lithium iron batteries. The lead-acid battery offers a cost-effective option while the lithium battery offers higher energy density and is lightweight, and the lithium-iron battery combines high energy efficiency with durability. The renewable PoE switch provides a flexible, reliable solution that ensures all applications can continue to run without a glitch.



Temperature Sensor for Battery Protection

The BSP-115 series is equipped with a temperature sensor for battery protection. When the sensor detects the battery temperature reaching above 70~75 degrees C, the PoE high-current power supply will be stopped to cool down and protect the battery.

Applications

Key Features

Specifications

Hardware Specifications
Copper Ports 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Port 1 100/1000BASE-X SFP port
Connector Removable 6-pin terminal block
Pin 1/2(+/-) for PV panel
Pin 3/4(+/-) for DC Power
Pin 5/6(-/+) for battery charging and discharging

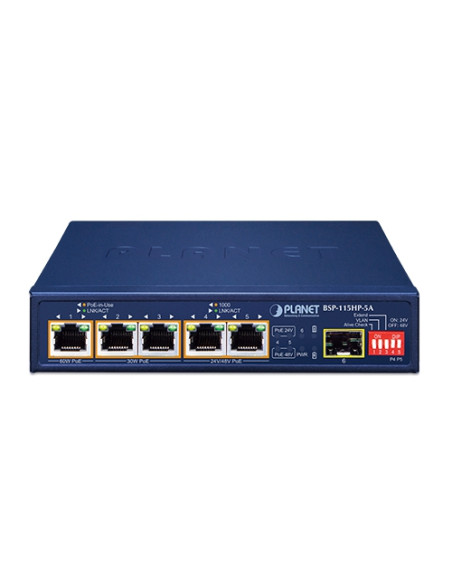

DIP Switch Front Panel:
 Alive Check: All PoE ports enable PD Alive check function.
 VLAN: Port isolation
 Extend: Long distance PoE switch.
 P4: PoE 24V/48V switch
 P5: PoE 24V/48V switch

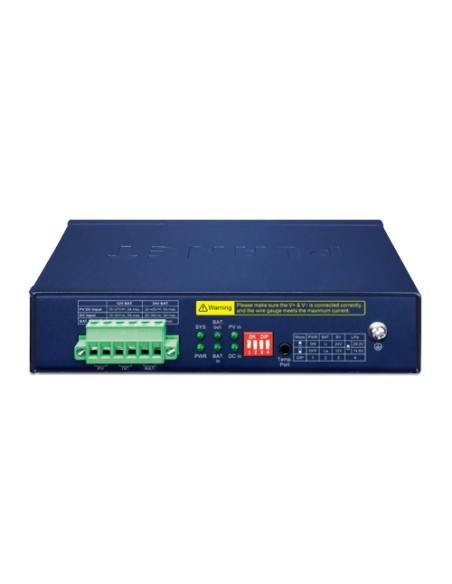

Rear Panel:
 PWR: Equipment power switch
 BAT: Battery type switch
 BV: Battery voltage switch
 LiFe: Lithium iron phosphate switch
Power Requirements Supports 15-27V solar panel input (open circuit voltage) with 12V battery, maximum solar panel input power of 135W, and maximum circuit 5A.
Supports 32-45V solar panel input (open circuit voltage) with 24V battery, maximum solar panel input power of 225W, and maximum circuit 5A.
Supports 15~24V DC input with 12V battery.
Supports 32~36V DC input with 24V battery
Charging Function Integrated automatic charging and discharging, maximum efficiency 98%, maximum charging current 5A
Integrated battery protection function
Integrated battery float charging function
Supports over-temperature protection function
Battery Type Based on full loading of power consumption:
 12V / 24V lead-acid battery, recommended capacity 290AH, maximum charging current 5A
 12.6V/25. 2V lithium battery, recommended capacity 290AH, maximum charging current 5A
 14.6V/29.2V lithium iron battery, recommended capacity 290AH, maximum charging current 5A
Note: Recommended capacity 290AH in fully power 65W usage
Power Consumption/ Dissipation 3.36 watts, 11.5BTU (Standby without PoE function)
75.6 watts, 257.8 BTU (Full loading with PoE function)
Dimensions (W x D x H) 142mm*159mm*34mm
Weight 690g
ESD Protection ±8KV air gap discharge
±4KV contact discharge
Temperature Sensor Temperature Detector -20 ~ 100 degrees C
Surge Immunity 2KV
Enclosure IP30 metal case
Installation Desktop/Wall-mount ear
LED Indicators Front Panel:
System:
 Green: PWR , BAT. out, BAT. in
Per 10/100/1000T RJ45 Port: (Port 1~Port 3):
 Green: LNK/ACT (10/100/1000Mbps)
 Amber: PoE-in-use
Per 10/100/1000T RJ45 Port: (Port 4~Port 5):
 Green: LNK/ACT (10/100/1000Mbps)
 Amber: 1000Mbps
 Green: 24V PoE-in-use
 Green: 48V PoE-in-use
Per SFP Port: (Port 6):
 Green: LNK/ACT (100/1000Mbps)

Rear Panel:
System:
 Green: SYS, PWR, PV in
Battery:
 Green: BAT. out, BAT. in, DC in
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 12Gbps/non-blocking
Switch Throughput 8.92Mpps@64 bytes
MAC Address Table 2K entries
Shared Data Buffer 2.5Mb
Jumbo Frame 10K bytes
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at/802.3bt Power over Ethernet PSE
PoE Power Supply Type End-span
PoE Power Output Port 1: 48V DC, max. 60 watts
Ports 2 to 3: 48V DC, max. 35 watts
Ports 4 to 5: 24V DC, max. 25 watts or 48V DC, max. 35 watts
Power Pin Assignment Port 1: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-)
Port 2~5: 1/2 (+), 3/6 (-)
Port 4~5 24V: Passive 4/5(+), 7/8(-)
PoE Power Budget Maximum 65W (depending on power input)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating Temperature: -20 ~ 65 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Device Type
Network Switch
Power Over Ethernet
Solar Technology
POE Ports
5
Installation Type
Wall-mount
Ports
5 Ports 10/1000/1000TX LAN, 1 Port 10/100/1000TX WAN
Type
Unmanaged
PoE Standard
802.3af/at
Operating Temperature
-20 to 60°C
Total PoE Budget
65W
