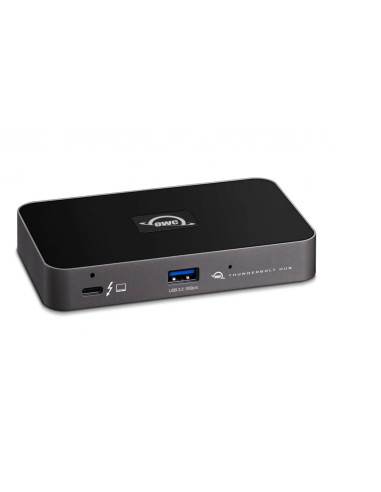

OWC OWCTB4HUB5P Thunderbolt Hub 4xUSB-C + 1xUSB 3.2 Thunderbolt Ports

OWCTB4HUB5P - OWC Thunderbolt Hub 4xUSB-C + 1xUSB 3.2 Thunderbolt Ports

More Ports For A World Of Possibilities

For the first time ever, the OWC Thunderbolt Hub lets you consolidate and simplify the connectivity between all your devices with all the Thunderbolt ports you’ve always wanted. The OWC Thunderbolt Hub’s four Thunderbolt (USB-C) ports and one USB port massively expand your connection possibilities. Now you can do more, effortlessly on your Apple M1 Mac, any Apple ‘Intel’ Mac with Thunderbolt 3, or any Thunderbolt 4 PC. You can also use the OWC Thunderbolt Hub with non-Thunderbolt USB-C machines like Chromebooks and iPads too.

• All the Thunderbolt you've always wanted: For the first time ever, add more full speed, fully functional Thunderbolt ports to your computer1
• Plug everything in: Same device compatibility, whether plugged into the hub or directly into your machine
• Manage more devices: Connect storage, up to two 4K displays or one 5K/6K/8K display, multiple accessories...you name it, you can use it
• Revolutionary development: Reinvents the chain and allows more bus-powered devices
• Powerful capabilities: Thunderbolt 4 host port keeps notebook powered and charged with up to 60W power delivery
• Adjustable LED: Customize illumination for your unique work setting
• Built-in security: Kensington Nano Security Slot™ for anti-theft cabling
• Official: Thunderbolt-certified for Mac and Windows

One Hub To Connect Them All

Through a single Thunderbolt port on your Mac or PC1, you can connect and charge nearly anything with this compact hub. Up to two 4K displays or a single 5K/6K/8K display, high performance storage—including NVMe solutions, A/V mixers, a phone or tablet, even desktop accessories like a keyboard or mouse are all fair game. Accessories with past, present, or future USB or Thunderbolt interfaces... all connect to the OWC Thunderbolt Hub.

Reinventing The Chain

Daisy chains can be complex. Removing any device besides the last one will cause a disruption that renders all devices unusable until the chain is re-established. The OWC Thunderbolt Hub lets you create three separate “tree branch” chains, so you can remove devices from one chain without affecting or disconnecting the others. You can even take things up a notch by adding three bus-powered Thunderbolt devices.

Multi Connectivity Solution

When the latest Thunderbolt appeared on Macs and PCs, it used a USB-C connector to transfer data, output video, and charge devices through the same cable. The OWC Thunderbolt Hub's Thunderbolt 4 ports use that same USB-C connector, creating a multi-connectivity solution that works on 100's of millions of existing and future Thunderbolt-based computers and devices. And, the ports are fully USB4 future compatible.

Ipads And Chromebooks

The OWC Thunderbolt Hub also functions as a USB-C hub for expanding the device connectivity of USB-C equipped machines like iPads and Chromebooks. Now you can add USB devices like a keyboard, mouse, drive, and even a bigger display with a USB-C adapter (sold separately).

Unleash Drive Performance

In the past, daisy chaining external storage required you to place it as close to the front of the chain for the fastest and most reliable performance. That wasn’t possible with bus-powered drives. They had to be placed last in the Thunderbolt chain…and the chain was limited to just one bus-powered device! Now you can connect multiple portable SSDs directly to the OWC Thunderbolt Hub.

A Higher Vision

Thanks to its Thunderbolt technology, the OWC Thunderbolt Hub lets you connect a single 5K/6K/8K display, or up to two 4K displays. Enjoy more precise, vivid details in graphic-intensive apps. Edit large format video on one display, while previewing the raw playback on the other. Attend a video meeting while editing content on another screen. Whatever your workstation display needs, the OWC Thunderbolt Hub gives you the connectivity you need to execute your vision.

Keep The Power Flowing

It’s about time someone invented a hub that works as hard as you do. Whether you’re taking a short break or are done for the day, the OWC Thunderbolt Hub keeps you powering ahead. It doesn’t matter if your machine goes into sleep mode...the Thunderbolt 4 and USB ports continue to power and/or charge connected devices.

Disconnect In One Click

The Dock Ejector safely disconnects all connected drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between your workstations.

Apple Superdrive Ready

OWC's free Dock Ejector software also includes a special driver that enables your OWC Thunderbolt Hub to play and burn CDs and DVDs with the Apple SuperDrive. Just connect the SuperDrive to an open USB-A port on the OWC Thunderbolt Dock for bus power to watch a DVD movie, listen to music CDs, create a backup disk, and install software.

Secure Your Workflow With OWC Clingon

Active workspaces expose your gear to bumps, shoves, or even the random tail wag from a pet. Just one ill-timed touch can cause an accidental cable disconnection, and an interruption to your workflow. The OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Thunderbolt Hub’s housing to secure your Thunderbolt (USB-C) connections so you can work with confidence even in the highest foot traffic environments.

Specifications

Display Support

• Up to one 8K display @ 60Hz,
• or one 5K display @ 60Hz,
• or one 4K display @ 120Hz,
• or two 4K displays @ 60Hz,
• or one 4K display @ 60Hz,
• or one 4K display @ 30Hz

Display Support by Port

• Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

Mac OS Compatibility

• macOS 13.x Ventura
• macOS 12.x Monterey
• macOS 11.x Big Sur

PC OS Compatibility

• Windows 11
• Windows 10 64-bit Edition

Mobile OS Compatibility

• iPadOS 16
• iPadOS 15
• iPadOS 14
• iPadOS 13
• Android 13.x
• Android 12.x
• Android 11.x

Other OS Compatibility

• Chrome OS
• Chrome OS, Android 11 or later, iPadOS 14.1 or later, & Linux

Host Port Requirements

• Thunderbolt (USB-C) or USB (USB-C or USB-A1) port

Power Supply

• External UL-listed universal auto-switching power supply

AC Input

• 100-240V, 50/60Hz, 1.5A

DC Output

• +20V, 5.5A

Wattage

• 110W

External Power Adapter

• Yes

Power Delivery

• Thunderbolt 4 host port provides up to 60W of power to the host computer. Thunderbolt 4 ports for device/drive connection provide up to 15W of power. USB ports provide up to 1.5A of power for bus-powered drives and device charging.

Device Ports

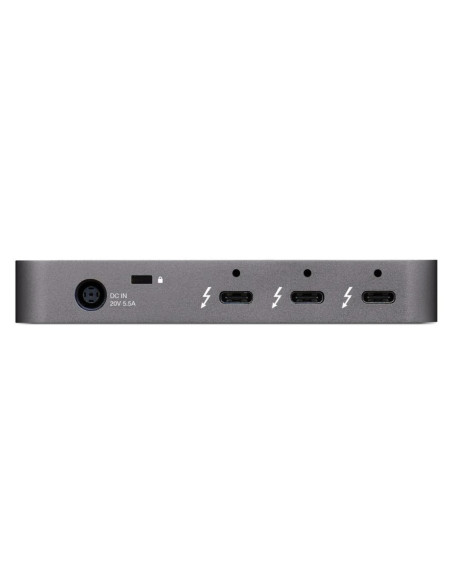

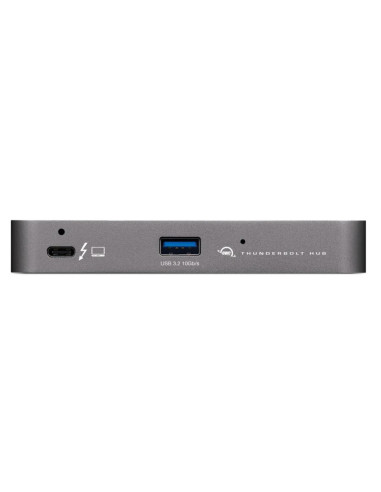

• (1) Host Port - Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
• (3) Thunderbolt 4 (USB-C) Ports
• (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible

Security Slot

• Yes

Housing Color

• Chassis: Space Gray
• Covers: Black

Housing Material

• Chassis: Aluminum
• Covers: Polycarbonate

Dimensions

• Height: 1.7 cm (0.7 in)
• Length: 11.8 cm (4.6 in)
• Width: 7.3 cm (2.9 in)

 Weight

• 209.0 g (0.46 lbs)

Certifications

• BSMI
• CE
• FCC
• ICES
• RCM
• VCCI

RoHS Compliant

• Yes

Reach Certification

• Yes

Ambient Temperature

• Operating: 32°F to 86°F (0°C to 30°C)
• Non-Operating: -4°F to 140°F (-20°C to 60°C)

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity

• Operating: 5% to 95% non-condensing
• Non-Operating: 5% to 95% non-condensing
