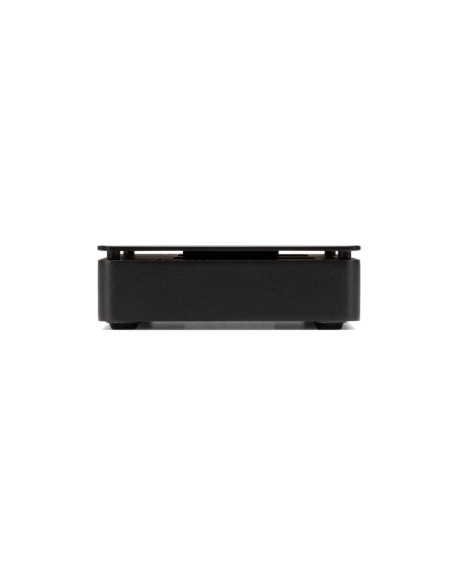

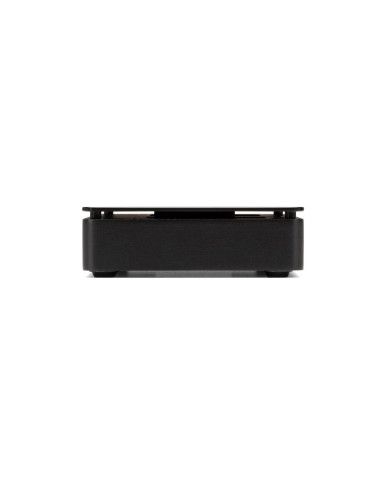

OWC OWCTB3DKPRO Thunderbolt Dock Networking + Media for Pro Video and Data 10GbE CFexpress SD USB-C/A

OWCTB3DKPRO - OWC Thunderbolt Dock Networking + Media for Pro Video and Data 10GbE CFexpress SD USB-C/A

The Best Networking, Media, And Docking For Pro Creatives

• Fast & diverse: transfer files in a blink, daisy chain up to five Thunderbolt devices, use USB-C accessories, and add an HDMI display with two Thunderbolt (USB-C) ports
• Full throttle bandwidth: share and stream up to 90% faster with a 10Gb/s Ethernet port
• AVB ready: perfect for use in pro audio and video applications where synchronization of data streams is critical
• Ingest content: easily handle multiple video and photo card uploads at up to 1630MB/s with CFexpress and SD card readers
• Full speed connectivity: use your devices and accessories at their max speed with one USB-C and three USB Type A 10Gb/s ports
• Add more viewspace: connect two 4K displays or up to a single 8K display via Displayport 1.4
• Powerful: keep your notebook mobile use ready with 85W charging power
• Silent and secure: fanless cooling mode and locking power connection for on-set use
• Certified: Thunderbolt certified for Mac and Windows

High-Bandwidth and Flexibility for Demanding Hi-Res Workflow Needs

Pro-level docking stations should be ready to handle any situation that you encounter in a production workflow. The OWC Thunderbolt Pro Dock is your on-location and post-production “mission control” with an unrivaled combination of super-fast 10Gb/s Ethernet, CFexpress and SD card readers, two Thunderbolt ports, one USB-C port, and three USB-A ports.

With this unique productivity enhancing configuration, you can ingest RAW video and photo files at speeds up to 1630MB/s. Collaborate in a shared workflow environment via the 10Gb Ethernet port to keep your projects streaming from file setup to final renders with headroom to spare. View projects in greater detail with an 8K display or create a panoramic dual 4K display. Daisy chain up to five Thunderbolt devices. All while powering your laptop and managing the typical USB devices you need to get the job done.

Add Media Versatility to DIT Carts

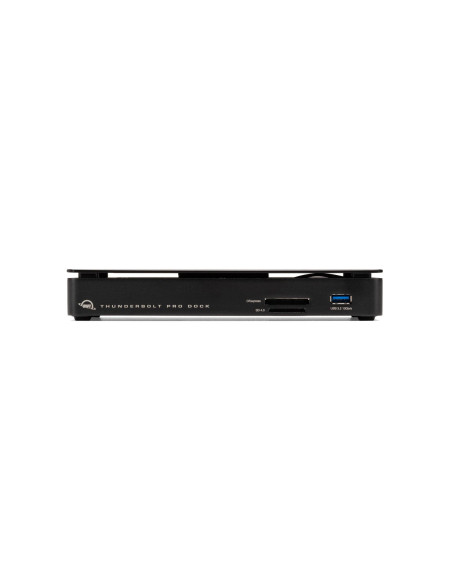

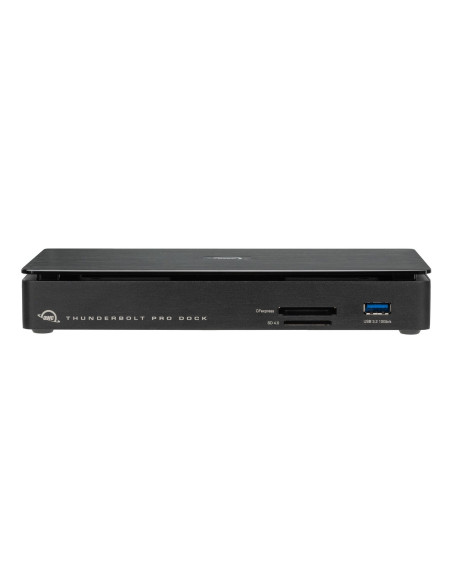

When you’re on location, your cart needs the power of versatility. With conveniently accessible front-side CFexpress Type B and SD 4.0 card readers, the Thunderbolt Pro Dock helps you manage multiple card uploads efficiently. It’s a huge asset when you’re covering live events like conferences, festivals, and concerts where you’re working with multiple videographers and photographers.

Calm & Connected

In addition to eliminating the on-set or in studio chaos of multiple connections, the Thunderbolt Pro Dock’s solid aluminum fanless design lets you work in calm silence…even when transferring a huge file over a network

Small Footprint, Big Connections

Sized similarly to a single external drive enclosure, the Thunderbolt Pro Dock’s aluminum case helps keep cart weight streamlined while easily fitting into a cart drawer or small box during cart breakdown.

With two Thunderbolt 3 ports, the Thunderbolt Pro Dock offers incredible potential to connect multiple devices to take on the biggest projects. You can daisy-chain up to 5 additional Thunderbolt devices to the Thunderbolt Pro Dock for studio-level storage, RAID arrays, eGPUs for graphics processing, or all of these combined and connected at 40Gb/s bandwidth.

Meet the challenges of any workflow with these Thunderbolt Pro Dock add-ons:

• OWC ThunderBlade - the ultimate on-site workflow drive
• OWC ThunderBay 4 - high-capacity RAID workstation
• OWC Express 4M2 - compact, customizable 4-bay RAID array
• OWC Envoy Pro FX - rugged and fast bus-powered portable SSD
• OWC Mercury Helios 3S - high-end PCIe video, audio, and SSD card use
• OWC Mercury Pro U.2 Dual - blazing fast NVMe SSD array
• Download the OWC guide to daisy-chaining to learn tips and tricks for the best connections.

Conquers Workflows and Combats Clutter

When you’re back in your office or studio, the Thunderbolt Pro Dock has the power and ports you need to manage your workflow and take control of your workspace. The Thunderbolt Pro Dock is compact, so you can comfortably manage your peripherals and keep your workspace free of clutter. Its 10Gb Ethernet connection keeps you connected at top speeds, and with 85W charging power, your notebook is charged up and ready to move.

OWC Thunderbolt Cable Included

OWC Thunderbolt Pro Dock comes with a certified 0.7M OWC Thunderbolt Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt (USB-C) Cables are the perfect choice.

Disconnect In One Click

 The Dock Ejector safely disconnects all connected drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between your workstations.

Stabilize Thunderbolt and USB-C Cables

Active workspaces expose gear to bumps, shoves, or even the random tail wag from a pet. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with confidence even in the highest foot traffic environments.

Includes:

• (1) Thunderbolt Pro Dock


• (1) Thunderbolt cable


• (1) External power supply and power cable


• (1) User Guide


• (1) OWC Dock Ejector for Mac and Windows

Specifications:

Display Support

• Up to one 8K display @ 60Hz,
• or one 5K display @ 60Hz,
• or one 4K display @ 120Hz,
• or two 4K displays @ 60Hz

Display Support by Port

• Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
• DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz

RoHS Compliant

• Yes

IEEE Specification Support

• 802.1AB
• 802.1Qav

Certifications

• CE
• FCC
• BSMI
• RCM
• VCCI
• UKCA
• IC
• Thunderbolt

Data Rate

• Thunderbolt 3: up to 40Gb/s

Ethernet Speeds (RJ-45)

• 10Gb/s (10GBASE-T)
• 5Gb/s (5GBASE-T)
• 2.5Gb/s (2.5GBASE-T)
• 1Gb/s "Gigabit" (1000BASE-T)
• 100Mb/s (100BASE-T)


Mac OS Compatibility

• macOS 10.13 High Sierra
• macOS 10.14 Mojave
• macOS 10.15 Catalina
• macOS 11.x Big Sur
• macOS 12.x Monterey
• macOS 13.x Ventura

PC OS Compatibility

• Windows 11
• Windows 10 64-bit Edition
• Windows Server 2016

Mobile OS Compatibility

• iPadOS 14
• iPadOS 15

Other Requirements

Requires macOS 10.13.6 or later.

• On a Mac, to enable high-power USB support for the Apple Super Drive, Apple USB Keyboard, and charging for iPad 1/2/3 generation devices, please install OWC Dock Ejector for Mac. This application includes a driver that enables support for these devices and charging functions.
• Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable. This configuration provides data transfer at Thunderbolt 2 speeds (up to 20Gb/s) but does not support notebook charging.
• In Windows 10, the driver for Ethernet functionality will be provided by the system when it detects this device. However, a new driver has been supplied which is not yet available in Windows and is available here.

Host Port Requirements

• Mac or PC with a Thunderbolt 3 port or later
• Mac with Thunderbolt 2/Thunderbolt port (requires adapter)

Power Supply

• External UL-listed universal auto-switching power supply

AC Input

• 100-240V, 50-60Hz

DC Output

• +12V, 15

Wattage

• 180

External Power Adapter

• Yes

Power Delivery

• (1) Thunderbolt 3 port with 85W
• (1) Thunderbolt 3 port with 15W

Device Ports

• (2) Thunderbolt 3 (USB-C) Ports
• (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (1) DisplayPort Port
• (1) 10 Gigabit Ethernet (10GbE) RJ-45 Port


Memory Card Slots

• (1) CFexpress Type B
• (1) Secure Digital (SD)

Security Slot

• Yes

Housing Color

• Black

Housing Material

• Aluminum

Dimensions

• Height: 3.5 cm (1.4 in)
• Length: 10.8 cm (4.3 in)
• Width: 21.2 cm (8.3 in)

Weight

• 640.0 g (1.41 lbs)


Ambient Temperature

• Operating: 41°F to 95°F (5°C to 35°C)
• Non-Operating: -4°F to 140°F (-20°C to 60°C)

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity

• Operating: 8% to 90% non-condensing
• Non-Operating: 5% to 95% non-condensing
