14 Port Thunderbolt 3 Dock OWC

OWCTB3DK14PSG - OWC 14 Port Thunderbolt 3 Dock Quick access all displays and peripherals minimizing desk clutter

Connect. Work. Disconnect. Go.

The days of only working at your desk are gone. We’re always on the move bouncing between our desks, meetings and couches — often in a hurry. With a single connection to your notebook computer, the OWC Thunderbolt 3 Dock makes coming back to your desk to work and leaving your desk to run to a meeting, a much quicker endeavor.

The Right Ports, Right Where You Need Them

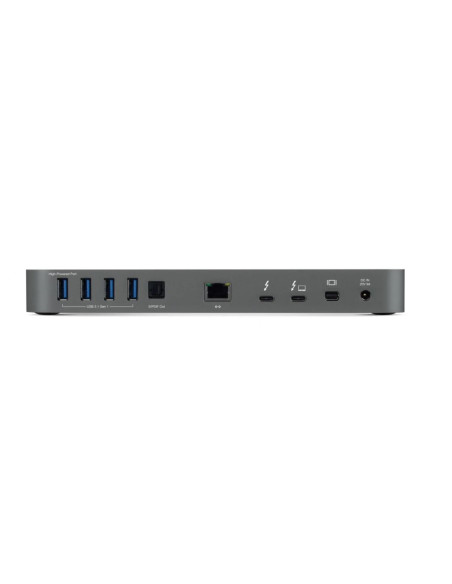

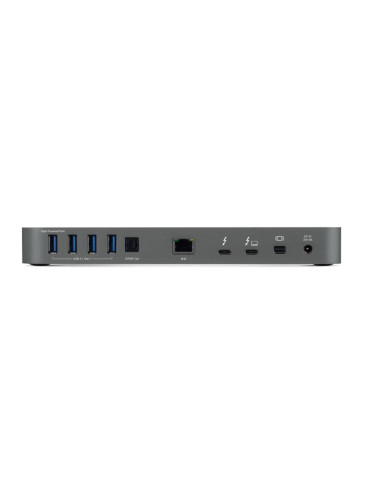

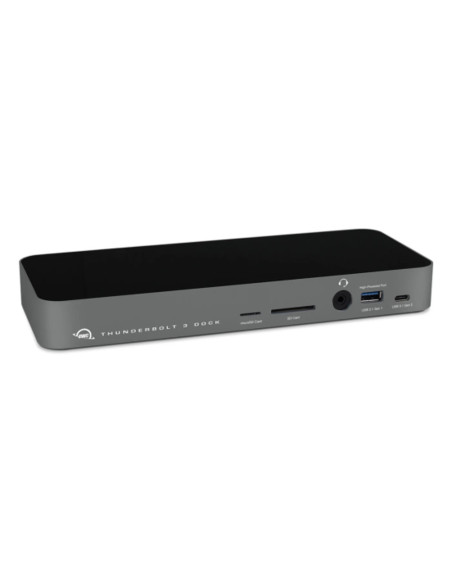

With its 14 ports of connectivity thoughtfully placed, the OWC Thunderbolt 3 Dock delivers convenience while keeping desktops clutter-free. The dock’s front is designed for the easy connection of your portable devices, headphones and media cards, while the rear features a multitude of ports for your static devices so cables stay out of sight.

• (2) Thunderbolt 3 (USB-C) ports (Thunderbolt 2/Thunderbolt backward compatible)
• (1) USB-C (USB 3.1 Gen 2) port
• (5) USB-A (USB 3.1 Gen 1) ports
• (1) Mini DisplayPort Port
• (1) Gigabit Ethernet (GBE) Port
• (1) S/PDIF Digital Audio Output Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

Power To The Ports

Leave your power adapters in your bag! The OWC Thunderbolt 3 Dock provides 85 watts of power to your computer via the Thunderbolt 3 connection and has multiple, high-power USB ports to charge your mobile devices. The days of searching for your power adapter are officially over.

Disconnect In One Click

OWC Dock Ejector safely disconnects all connected drives in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your Thunderbolt 3 Dock.

Thoughtful Design - Inside and Out

Carefully chosen ports and functionality bring a new world of possibilities to your desktop, but we’ve also worked to ensure the OWC Thunderbolt 3 Dock is built to last. A seamless design wrapped in a single piece of aluminum brings a rugged exterior to endure your day-to-day, while maintaining a stylish design that complements any workspace.

Pro-tips: Daisy-chaining With Thunderbolt Devices

With the ability to run up to six devices per port, Thunderbolt ports amplify your laptop or desktop with peripheral power. Learn the basics of daisy-chaining Thunderbolt devices for maximum performance in this handy infographic

OWC Thunderbolt 3 Cables

A Thunderbolt 3 cable is included with the OWC Thunderbolt 3 Dock, but if your workflow demands a longer cable to make the connection, OWC Premium Thunderbolt 3 (USB-C) Cables are the perfect choice.

Includes :

• Thunderbolt certified for Windows and Mac
• Easily connect all of your peripherals
• 85W of notebook charging power
• Connect two 4K displays or one 5K display
• Dual Thunderbolt 3 (USB-C) ports (Thunderbolt 2/Thunderbolt backward compatible)
• (5) USB-A (USB 3.1 Gen 1) ports
• (1) USB-C (USB 3.1 Gen 2) port
• Thunderbolt cable included

Specifications

Display Support

• Up to one 5K display @ 60Hz,
• or two 4K displays @ 60Hz

Display Support by Port

• Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
• Mini DisplayPort 1.2: Up to 4K @ 60Hz

Chipset

• Thunderbolt 3 - Intel JHL6540
• USB Type-C - ASMedia ASM1142
• USB Type-A - Fresco Logic FL1100EX (x2)
• Ethernet - Intel i210
• S/PDIF Audio - C Media CM6533

Ethernet Speeds (RJ-45)

• 1Gb/s "Gigabit" (1000BASE-T)
• 100Mb/s (100BASE-T)
• 10Mb/s (10BASE-T)

Jumbo Frame Support

• Yes

Mac OS Compatibility

• macOS 13.x Ventura
• macOS 12.x Monterey
• macOS 11.x Big Sur
• macOS 10.15 Catalina
• macOS 10.14 Mojave
• macOS 10.13 High Sierra
• macOS 10.12 Sierra

PC OS Compatibility

• Windows 11
• Windows 10 32-bit Edition
• Windows 10 64-bit Edition
• Windows Server 2016

Driver Required

• High-power USB support is required for compatibility with the Apple SuperDrive and Apple USB keyboard, and is required to enable high-speed charging for Apple iPads, iPhones and other higher-power capable devices. To enable high-power USB support please download the appropriate app and driver bundle.

Host Port Requirements

• Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)

Power Supply

• External UL-listed universal auto-switching power supply
• Need an additional power supply? Secondary/replacement power supplies are also available.

AC Input

• 120-240V, 50-60Hz, 2.5A

DC Output

• +20V, 9A

Wattage

• 180W

External Power Adapter

• Yes

Power Delivery

• Thunderbolt 3 host port provides up to 85W of power to the host computer

Replacement Adapter Part Number

• OWCTB3DKPWR180W (sold separately)

Device Ports

• (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
• (1) Thunderbolt 3 (USB-C) Port
• (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (5) USB 3.2 Gen 1 Type-A Ports up to 600MB/s
• (1) Mini DisplayPort Port
• (1) Gigabit Ethernet (GbE) RJ-45 Port
• (1) S/PDIF Digital Audio Output Port
• (1) 3.5mm Stereo Audio Input/Output Combo Port

Memory Card Slots

• (1) microSD
• (1) Secure Digital (SD)

Security Slot

• No

Housing Color

• Chassis: Space Gray
• Covers: Black

Housing Material

• Chassis: Aluminum
• Covers: Polycarbonate

Dimensions

• Height: 2.5 cm (1.0 in)
• Length: 8.9 cm (3.5 in)
• Width: 23.0 cm (9.1 in)

Weight

• 500.0 g (1.10 lbs)

Additional Ports

• None

Certifications

• CE
• FCC

RoHS Compliant

• Yes

Reach Certification

• Yes

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
