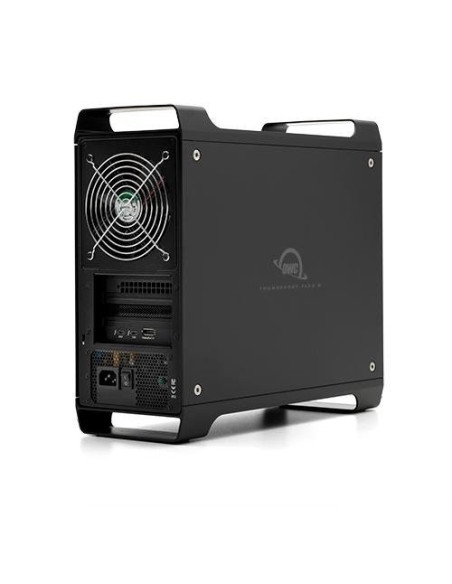

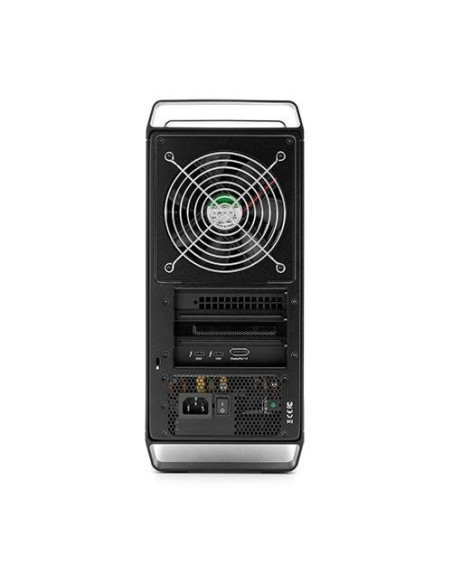

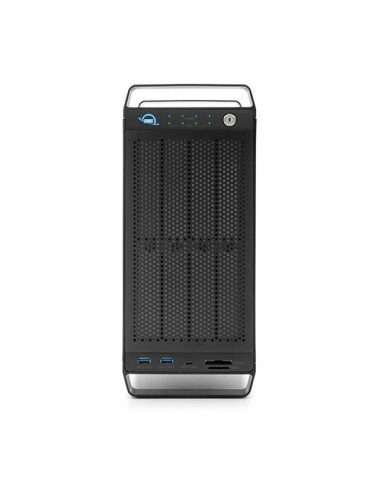

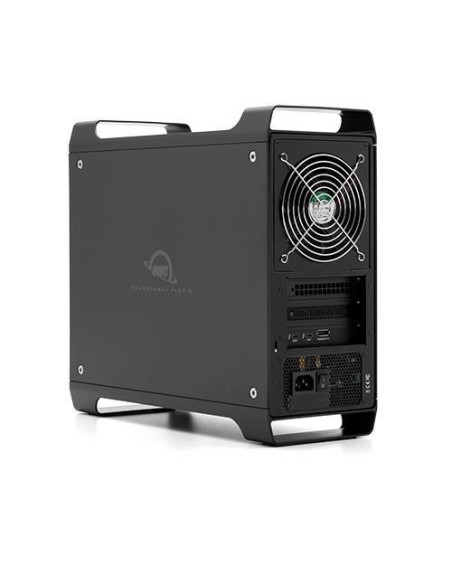

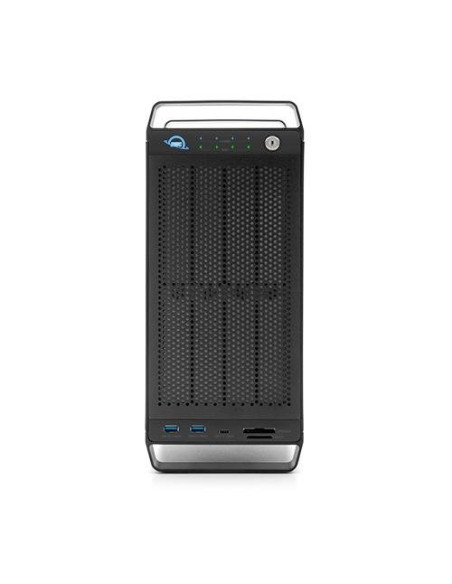

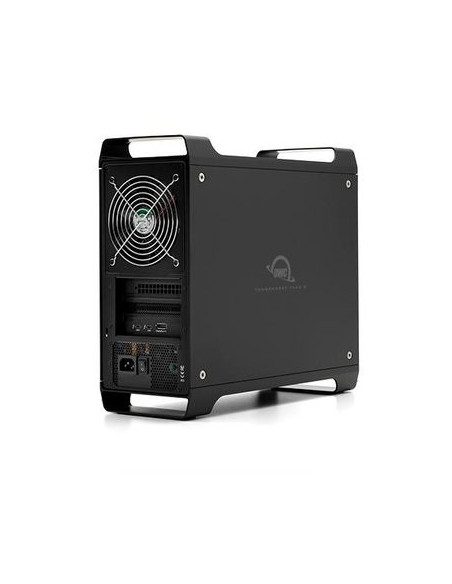

OWC OWCTB3F80C000 ThunderBay Flex 8xSATA/SSD/HDD Storage 1xPCIe Audio/Video Docking Enclosure

OWCTB3F80C000 - ThunderBay Flex 8xSATA/SSD/HDD Storage 1xPCIe Audio/Video Docking Enclosure

Tame your workflow with this highly configurable productivity platform for digital imaging, VFX, video production, and video editing professionals. With unrivaled FLEXibility, you can choose drive type(s), enjoy docking convenience, and expand your capabilities with PCIe cards.

FLEXible Storage

• Eight drive bays: use a mix of SATA/SAS1 and U.2/M.22 NVMe drives for for virtually limitless capacity and real world speeds up to 2750MB/s
• Future ready: top four bays can use U.2 SSDs…the emerging M&E industry storage standard
• Powerfully easy RAID: create, manage, and monitor advanced RAID sets with SoftRAID

Docking FLEXibility

• Do more: second Thunderbolt 3 port3 for daisy chaining devices or additional display(s)
• Connect more: (1) USB-C and (2) USB-A 10Gb/s ports for peripherals and mobile devices
• See more: DisplayPort 1.4 for connecting up to an 8K display4
• Fast media ingest: front-side SD 4.0 and CFexpress card readers with up to 985MB/s speed

FLEXpandable for Unique Needs

• Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card

Flex Your Way Through Every Workflow

Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world’s leading Thunderbolt accessory manufacturer.

ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS1 and U.2/M.22 NVMe drives for virtually limitless storage capacity. Next, there’s a plethora of ports including two Thunderbolt 33, one USB-C, and two USB-A for device docking and charging.

See your work in greater detail by adding up to an 8K display4 via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there’s a PCIe slot waiting for your specific project needs.

ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.

NVMe. PCIe. What’s It Mean to Me?

At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer’s processor.

Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment’s notice.

The Future Standard of Storage Available Today

Right out of the packaging, all eight bays can utilize SATA 6Gb/s 2.5-inch SSDs or 3.5-inch HDDs. To take advantage of 40Gb/s PCIe technology, the top four bays are NVMe U.2 SSD ready. These emerging super-fast SSDs enable ThunderBay Flex 8 to meet the future storage needs of content creators and video production pros.

Muscle-FLEXing Data Performance

Are you a video pro working with 4K/8K and even Phantom high-speed files? The ThunderBay Flex 8 offers a variety of drive configurations that deliver real-world read/write speeds of 2750MB/s that saturate the Thunderbolt 3 speed threshold. Try any of these options:

• A single U.2 NVMe SSD in Bay A
• Multiple U.2 SSDs installed in top four bays (A-D) in RAID 0
• Six or more SATA SSDs in any bays in RAID 0
• Swap out the built-in SATA drive controller card with a SATA/SAS hardware RAID card and configure 8 x SATA/SAS drives in hardware RAID 0

Done with the drives but need the docking connectivity?

Eject the ThunderBay Flex 8 drives and any external drives in a single click with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.

Docking FLEXibility

A virtual buffet of productivity-enhancing possibilities awaits you with the docking connections built into ThunderBay Flex 8. Power your notebook with up to 85W power delivery while capturing multi-stream hi-res footage at full frame rate. Connect audio and video mixers, digital camera, keyboards, and other peripherals and charge mobile devices via one USB-C and two USB-A 10Gb/s ports. Ingest and work with 4/8K RAW video and RAW photo files immediately at speeds up to 985MB/s with frontside SD 4.0 and CFexpress card readers. Add more viewing space with up to an 8K monitor via the DisplayPort 1.4 interface. And if all that’s not enough to satisfy your project needs, daisy-chain up to five additional Thunderbolt 3 devices!

FLEXpandable for Unique Needs

By removing the enclosure’s side panel, you can expand your capabilities by installing a half-length, full-height, single-width expansion card in the PCIe x16 connector/x4 lanes slot. Add a 4K video capture card for direct ingest of multi-stream high-res footage. Record high-quality tracks with an audio card and then edit and archive tracks.

Create a powerful file server with a high-speed networking card. By replacing the built-in SATA drive controller with a SATA or SAS RAID card, you can turn ThunderBay Flex 8 into a hardware RAID storage solution while keeping a PCIe slot open for other cards.

A FLEXtraordinary Platform

ThunderBay Flex 8 is a user-configurable platform that you can use to launch into projects with a new realm of time and money-saving results. To get you started, we suggest three sample configurations that make the most of the extraordinary highlights that have made OWC solutions the choice of performance enthusiasts and cinematographers around the world:

Sample Configurations

• FLEX Empty Enclosure: An empty enclosure that lets you add your choice of drives and PCIe cards. You can remove the SATA drive controller card to add a RAID or SAS drive controller card.
• FLEX Bottom Four: The bottom four bays populated with SATA drives and top four bays left empty for use with U.2 NVMe drives, M.2 NVMe drives with adapter, or SATA/SAS drives.
• FLEX Full: Achieve maximum capacity and performance with all the bays filled with SATA drives. One drive left as cold spare. The other seven preconfigured in RAID 0 or RAID 5 with SoftRAID.

SoftRAID: RAID Made Easy

Harness the full capability of your OWC drive array with the included SoftRAID XT, the most powerful, intuitive RAID management software on the market for macOS and Windows. SoftRAID’s RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance.

SoftRAID XT provides an unbeatable combination of speed, protection, and compatibility:

• Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
• Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
• Validated: Volume validation ensures sectors can be read and parity is correct
• Certified: Checks disks before use to ensure they are safe for data storage
• Vigilant: Error prediction helps protect against unexpected failure
• Universal: Move SoftRAID arrays seamlessly between Mac and PC2 with built-in OWC MacDrive technology

Beyond Hardware RAID

SoftRAID provides a level of storage performance that you simply can’t get with hardware RAID. SoftRAID gives you increased power and control over your RAID drives and disks that hardware RAID can’t deliver and doesn’t lock you into technology that you can’t upgrade or expand.

A Protective, Economical Post-Production Solution

Sending a drive from set to post-production typically entails tedious and time-consuming drive enclosure disassembly to access the storage drive or costly shipping of the entire enclosure to the post lab. But ThunderBay Flex 8 offers yet another option.

By installing an OWC U.2 NVMe Interchange System carrier tray (sold separately) with a built-in U.2 connector into a ThunderBay Flex 8 drive tray, you can protect the U.2 SSD drive’s connector from repeated install/removal wear for improved drive longevity and investment. When done with your shoot, just ship the lightweight protective carrier and drive to the lab where the carrier can be installed into an OWC Helios 3S equipped with the OWC Interchange System. It’s a complete solution to safeguard your data while lowering shipping costs.

End-To-End Workflow Possibilities

FLEX On-Set

+ OWC Interchange System Carrier Tray with SSD

+ OWC ThunderBay Flex 8

Protects U.2 SSD drive connectors from install/ removal wear to improve drive longevity and extend your drive ROI.

Transit to Post

+ OWC Interchange System Carrier Tray with SSD

+ Small and economical. Ship only what you need.

Lightweight protective carrier safeguards data while lowering shipping costs vs shipping the entire enclosure.

Post-Production Lab

+ OWC Interchange System Carrier Tray with SSD

+ OWC Helios 3S (sold separately)

+ OWC Interchange System (sold separately)

Desktop U.2 NVMe SSD swappable storage for fast processing of footage.

OWC Thunderbolt Cable Included

OWC ThunderBay Flex 8 comes with a certified 0.7 meter OWC Thunderbolt cable, with other lengths from 0.5 meter to 2.0 meters available separately.

1. SAS drives are supported with SAS drive controller card (available separately).
2. Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter (available separately).
3. Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
4. Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities.
5. RAID 4/1+0 (10) are Mac only at this time.
6. SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.

Includes

• (1) OWC ThunderBay Flex 8 External Storage Enclosure
• (1) 0.7M Thunderbolt Cable
• (1) External Power Cable
• (2) Security Keys for Front Panel Lock
• (1) Hex Key
• (1) Quick Start Guide for OWC ThunderBay Flex 8
• (1) Quick Start Guide for OWC ThunderBay Flex 8
• (1) Assembly Manual & User Guide for OWC ThunderBay Flex 8
• (1) OWC SoftRAID XT Software Bundle
• (1) Quick Start Guide for OWC SoftRAID XT
• (1) Manual & User Guide for OWC SoftRAID XT
• (1) Acronis Cyber Protect Home Office (1 Year Subscription)

Specifications:

Mechanisms Supported

• 3.5 inch SATA drives
• 2.5 inch SATA drives
• 2.5 inch U.2 drives (top 4 bays only)
• NVMe M.2 drives (via U.2 adapter)
• 2.5 inch SAS drives (requires SAS card, not included)
• 3.5 inch SAS drives (requires SAS card, not included)

Display Support by Port

• DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz
• Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter

Boot Support

• Dependent upon configuration. Independent Mac volumes should boot in most scenarios.

Hot Swap Support

• Yes

Hot Plug Support

• Yes

Chipset

• Thunderbolt: Intel JHL7440
• PCIe Switch: ASMedia ASM-2824
• USB Controller: Genesys Logic GL-3590

Data Rate

• Thunderbolt 3: 40Gb/s (or 5000MB/s)

Data Transfer Rate (Maximum)

• Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)

RAID Capable

• Yes


RAID Levels Supported

• RAID 0
• RAID 1
• RAID 0+1
• RAID 4
• RAID 5
• JBOD

RAID Features

• Software RAID


MTBF (Mean Time Between Failures)

• Varies depending on drive mechanism installed

Contact Start Stops

• Varies depending on drive mechanism installed

Mac OS Compatibility

• macOS 10.15 Catalina
• macOS 11.x Big Sur
• macOS 12.x Monterey
• macOS 13.x Ventura

PC OS Compatibility

• Not compatible with Windows PCs

Driver Required

• SoftRAID Only
• The SoftRAID driver is installed within the SoftRAID application.
• For PCIe cards that require a driver, please check the manufacturer web site. Drivers for PCIe cards must be Thunderbolt-aware to function.

Host Port Requirements

• Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)

Supported PCIe Cards

• Supports one full-height, half-length, single-width card (driverless or with Thunderbolt-aware driver). GPUs not supported.


Other Requirements

• macOS 10.15.1 or later required.

Power Supply

• Internal UL-listed universal auto-switching power supply

AC Input

• 100-240V, 50-60Hz, 3.5A-7.0A

DC Output

• +12V, 37A

Wattage

• 450W

External Power Adapter

• No

Power Delivery

• (2) Thunderbolt 3 Ports (15W, 85W)

Number of Bays

• 8

Expansion Slots

• (1) PCIe 3.0 x16 physical, x4 electrical, full-height, half-length, single-width

Device Ports

• (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
• (1) Thunderbolt 3 (USB-C) Port
• (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (2) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
• (1) DisplayPort Port


Memory Card Slots

• (1) CFexpress Type B
• (1) Secure Digital (SD)

Cooling

• (1) 120mm 1,600RPM cooling fan

Security Slot

• Yes

Power Button

• Yes

Power/Activity LED

• Yes

Housing Color

• Black

Housing Material

• Aluminum

Dimensions

• Height: 34.9 cm (13.7 in)
• Length: 39.0 cm (15.4 in)
• Width: 14.9 cm (5.9 in)

Weight

• 9.2 kg (20.26 lbs)


Certifications

• BSMI
• CE
• FCC
• RCM
• VCCI

Ambient Temperature

• Operating: 50°F to 95°F (10°C to 35°C)
• Non-Operating: -40°F to 149°F (-40°C to 65°C)

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity

Operating: 8% to 90% non-condensing

Non-Operating: 5% to 95% non-condensing

Shock

• Operating: Varies depending on drive mechanism installed
• Non-Operating: Varies depending on drive mechanism installed

Noise

• Varies depending on drive mechanism installed

1. Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
2. SoftRAID XT works with macOS 10.12 or later and Windows 10. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
3. GPUs are not supported.
4. While we do not bundle or recommend specific RAID/SAS card setups at this time, we do provide an unofficial guide as a courtesy, to customers who wish to attempt this workflow.
