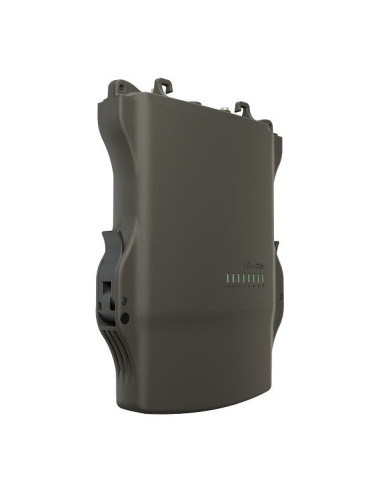

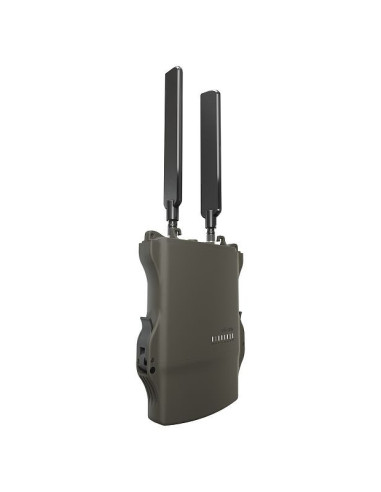

MikroTik NetMetal ac² 716MHz Dual Band 2x2 Gigabit CPE with mPCIe slot

RBD23UGS-5HPacD2HnD-NM
In Stock
$281.49
Tax included

RBD23UGS-5HPacD2HnD-NM

The NetMetal ac² from MikroTik is another installment in the NetMetal series with more power and advanced features packed into the same sturdy and reliable design of its predecessors. The NetMetal ac² is the best way to add IPsec hardware acceleration to your backhaul link. Its dual chain dual band 2.4/5GHz WiFi support means there's no need for additional tinkering. This device features a mini PCIe slot for an LTE or other wireless module and 1 SFP port for fiber connectivity.

Quantity Unit price You Save
5 $260.94 $102.74

Related Products & Accessories



RBD23UGS-5HPacD2HnD-NM - MikroTik NetMetal ac² 716MHz Dual Band 2x2 Gigabit CPE with mPCIe slot

Technical Specifications

  • Architecture ARM 32 bit
  • CPU IPQ-4019
  • CPU core  count 4
  • CPU nominal frequency 716.8 MHz
  • Dimensions 143 x 247 x 48 mm
  • License  level 4
  • Operating system RouterOS
  • Size of RAM 256  MB
  • Storage size 16 MB
  • Storage type SPI flash
  • Tested ambient temperature-40°C .. +70°C

Power Specifications

  • Powering
  • Number of DC inputs:  2 (DC jack, PoE-IN)
  • PoE in 802.3 af/at
  • Poe in input voltage 24 - 57 V
  • DC jack input voltage 12 - 57 V
  • Max power  consumption 28 W
  • Max power  consumption without attachments 12 W

Wireless Specifications

  • both 2.4 GHz 5 GHz
  • Max data  rate 300  Mbit/s 866.7  Mbit/s
  • Number of chains 2 2
  • Connectors 2
  • Connector type RP-SMA RP-SMA
  • Supported protocols 802.11 b/g/n 802.11 a/n/ac
  • Interface  model IPQ-4019 IPQ-4019
  • Wi-Fi generation Wi-Fi 4 Wi-Fi 5and
Device Type
Access Point
Device Features
PoE Powered, Outdoor
SFP Ports
1
MIMO
2x2
Power Input
DC
Wireless System
2.4GHz, 5GHz
SFP
Yes, 1G SFP
Ethernet Ports
1
