RB921UAGS-5SHPacD-NM MikroTik NetMetal 5SHP 720MHz 5GHz 2x2 High Power Gigabit CPE

NetMetal5HPacD: 5GHz NetMetal Dual Chain outdoor base station RB921UAGS-5SHPacD-NM

By supporting the 802.11ac wireless standard, the NetMETAL allows to use datarates of up to 1.3Gbps (for the T models), 256-QAM modulation and 20/40/80MHz channels. With it's huge speed improvements, 802.11ac opens up new possibilities.

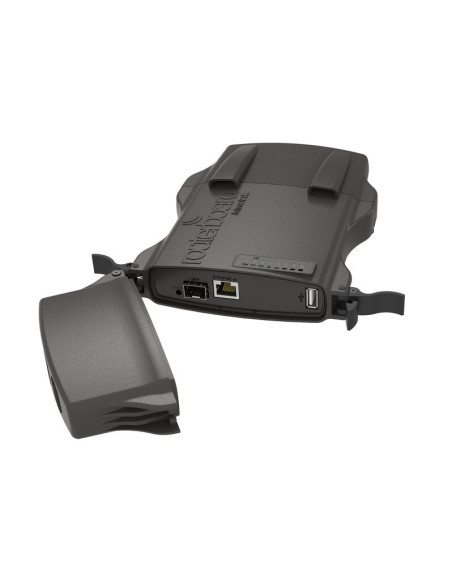

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

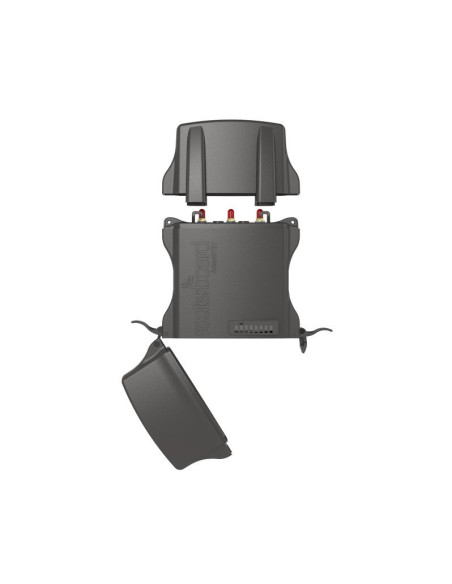

The NetMETAL is a completely new product in a waterproof enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminium enclosure also works as a reliable heatsink for it's high output power radio.

This Netmetal5is dual chain version, there is also 3 chain versions available

In total there are 4 models in the NetMETAL5 produt line. The distinguishing features are dual chain vs 3 chain and RB921 vs RB922 (this version offers additional mpcie slot for wireless card).

Available Metal5 models:

• RB921UAGS-5SHPacD-NM
• RB922UAGS-5HPacD-NM
• RB921UAGS-5SHPacT-NM
• RB922UAGS-5HPacT-NM

Specifications of Netmetal5:

• Product code: RB921UAGS-5SHPacD-NM
• CPU nominal frequency: 720 MHz
• SFP DDMI: yes
• CPU core count: 1
• Size of RAM: 128 MB
• 10/100 Ethernet ports: None
• 10/100/1000 Ethernet ports: 1
• MiniPCI slots: 0
• MiniPCI-e slots: 0
• Wireless chip model: QCA9882-BR4A-R
• Wireless standards: 802.11ac
• Number of USB ports: 1
• Power Jack: 0
• 802.3af support: no
• PoE out: No
• Supported input voltage: 8 V - 30 V
• PoE in: Yes
• Voltage Monitor: Yes
• CPU temperature monitor: No
• PCB temperature monitor: Yes
• Dimensions: 143x247x48mm (PCB)
• Operating System: RouterOS
• License level: 4
• Antenna gain DBI: No
• Current Monitor: No
• CPU: QCA9557-AT4A-R
• Max Power consumption: 21 W
• SFP ports: 1
• SFP+ ports: None
• USB slot type: USB type A
• Number of chains: 2
• Serial port: None
