MikroTik RBwAPGR-5HacD2HnD&R11e-LTE6 wAP ac LTE6 Dual Band Access Point kit

MikroTik RouterBOARD wAP ac Dual Band LTE Cat 6 Modem kit

RBwAPGR-5HacD2HnD&R11e-LTE6
Available On Backorder
$306.00
Tax included

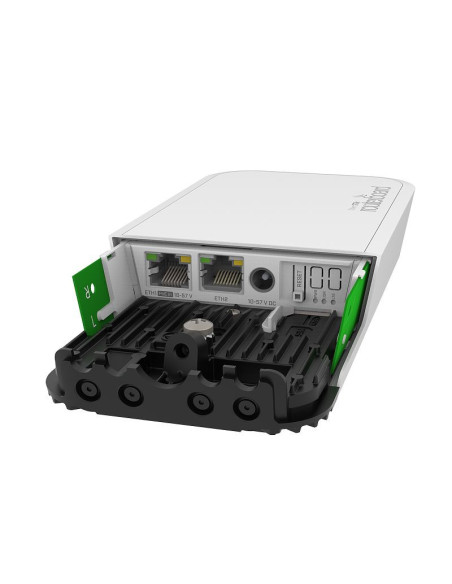

The wAP ac LTE6 kit from MikroTik is a powerful and versatile member of the weatherproof wAP series. The R11e CAT6 LTE modem enables reliable connectivity with up to 300 Mbps download speed in crowded and rural environments. The device has 2 Gigabit Ethernet ports for use as a wired router with LTE backup via the micro SIM slot. The wAP ac LTE6 is designed for use in indoor and outdoor applications and can be easily mounted on walls, ceilings or poles.



Quantity Price You Save
5 $289.17 Up to $84.15
9 $273.87 Up to $289.17
16 $264.69 Up to $660.96
20 $260.10 Up to $918.00
2G Category Class12
2G Bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G Bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Package Includes

  • (1) Mikrotik wAP ac LTE6 Access Point
  • (1) Power Adapter (24V 0.8A)
  • (1) Screw Kit
  • (1) Desktop Stand
  • (1) Metal Ring
  • (1) Plastic Strap
  • (1) Mount Base
  • (1) Gigabit PoE Injector
  • (1) Ceiling Mount Base
Device Features
Outdoor, PoE Powered
Device Type
Radio
Antenna Gain (dBi)
4
Wireless System
2.4GHz, 5GHz, 3G Mobile, 4G Mobile, LTE Mobile
Ethernet Ports
2
No reviews

Specifications

Details
Product code RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
License level 4
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 60°C
Suggested price $189.00

Powering

Details
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 10 W

Mobile

Details
2G Category Class12
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)

Wireless

Details
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 2

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 22 -100
11MBit/s 22 -94
6MBit/s 23 -95
54MBit/s 19 -78
MCS0 23 -95
MCS7 18 -73

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68
