CCR1009-7G-1C-1S+PC
Out Of Stock
$964.00
Tax included

CCR1009-7G-1C-1S+PC

This product is EOL. Suggested replacements:

CCR1009-7G-1C-1S+ https://wisp.net.au/ccr1009-7g-1c-1s-mikrotik-ccr1009-7x-gbe-1x-gbesfp-combo-1x-10g-sfp.html

CCR2004-16G-2S+-PC https://wisp.net.au/mikrotik-ccr2004-16g-2spluspc.html

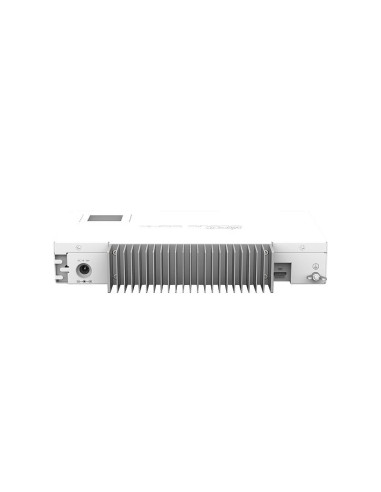

The CCR1009-7G-1C-1S+PC from MikroTik is an industrial-grade cloud router powered by a nine core 1GHz processor and 2GB RAM. This CCR1009 model comes in a metal desktop case with passive cooling and features (7) Gigabit Ethernet ports, (1) Gigabit Ethernet or SFP combo port, (1) SFP+ port, (1) microUSB type AB port, (1) RS232 Serial port, (1) microSD card slot, (1) mini SIM card slot, and an LCD panel for easy configuation. This device supports passive power over Ethernet.

The MikroTik cloud core router series is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 6 RouterOS license.

Note: This product does not include fibre modules. If you need SFP transceivers, select an option from the drop down menu or make sure to add them to your cart separately. For more information about MikroTik SFP transceivers, refer to the MikroTik compatibility table.

Please navigate to individual product pages to purchase different models or quantities of SFP Transceivers than the options provided. Give us a call if you have any questions about device compatibility.

Quantity Unit price You Save
5 $864.71 $496.46
10 $838.68 $1,253.20
15 $824.22 $2,096.70
20 $819.40 $2,892.00


CCR1009-7G-1C-1S+PC - MikroTik CCR1009 7x GbE + 1x GbE/SFP Combo + 1x 10G SFP+ Industrial Router w/ Passive Cooling Mounting

This product is EOL. Suggested replacements:

CCR1009-7G-1C-1S+ https://wisp.net.au/ccr1009-7g-1c-1s-mikrotik-ccr1009-7x-gbe-1x-gbesfp-combo-1x-10g-sfp.html

CCR2004-16G-2S+-PC https://wisp.net.au/mikrotik-ccr2004-16g-2spluspc.html

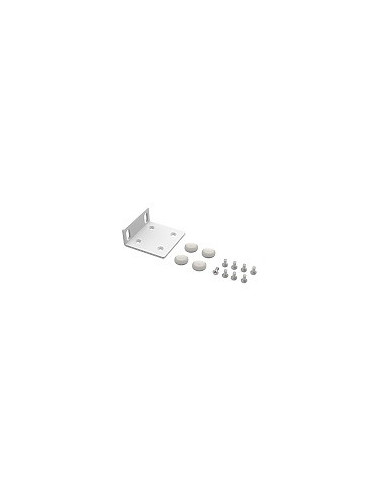

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop. Please attach rubber pegs on the bottom of the router if the desired placement is on the flat surface or use a Phillips screwdriver to attach rackmount ears on both sides of the device if designated use is for rackmount enclosure:

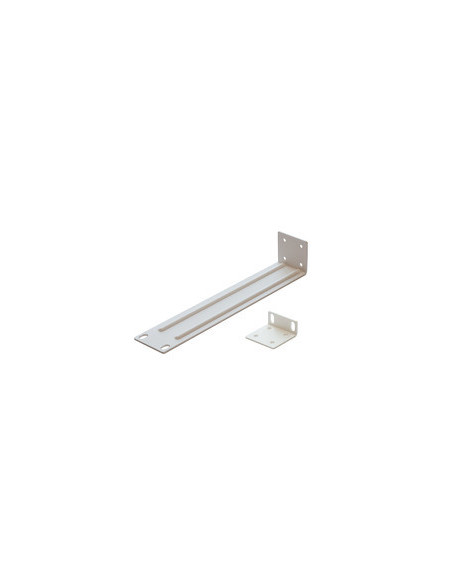

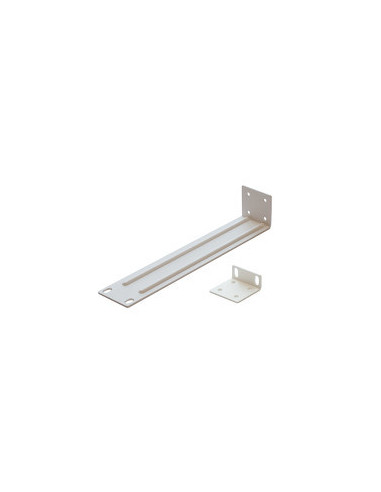

  • Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown in the picture.
  • Place the device in a rackmount enclosure and align with the holes so that the device fits conveniently.

Technical Specifications:

  • CPU nominal a: TILE-Gx9, 9 cores, 1 GHz

  • Size of RAM: 1 GB

  • Storage type: NAND

  • Storage size: 128 MB

  • 10/100/1000 Ethernet ports: 7

  • Number of USB ports: 1

  • Power jack: 1

  • PoE in: Yes

  • Supported input voltage: 18 V - 56 V

  • Voltage monitor: Yes

  • PCB temperature monitor: Yes

  • CPU temperature monitor: Yes

  • Dimensions: 272x190x47mm

  • Operating system: RouterOS, level 6 license

  • Max Power consumption: 25W

  • Ethernet/SFP combo port: 1

  • SFP+ port: 1

  • USB slot type: microUSB type AB

  • Serial port: RS232

  • Weight: Package: 1.62 Kg; Unit: 892g

Device Type
Router
SFP+ Ports
1
Ethernet Ports
7 Ports 10/100/1000
USB slot
microUSB type AB
Serial console port
RS232
Ethernet Combo ports
1
PoE in
Passive
4752224001863
CCR1009-7G-1C-1S+PC
