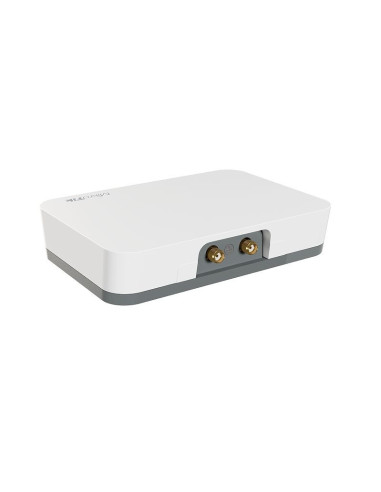

RB924i-2nD-BT5&BG77 KNOT IoT Gateway BLE, NB/CAT-M, Wifi, LAN

RB924i-2nD-BT5&BG77
In Stock
$144.00
Tax included

RB924i-2nD-BT5&BG77 KNOT IoT Gateway BLE, NB/CAT-M, Wifi, LAN

KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT. You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors and actuators, such as electricity meters and relays

Quantity Unit price You Save
5 $133.49 $52.56
9 $128.88 $136.08
16 $125.28 $299.52
20 $123.84 $403.20


RB924i-2nD-BT5&BG77 KNOT IoT Gateway BLE, NB/CAT-M, Wifi, LAN

knot features

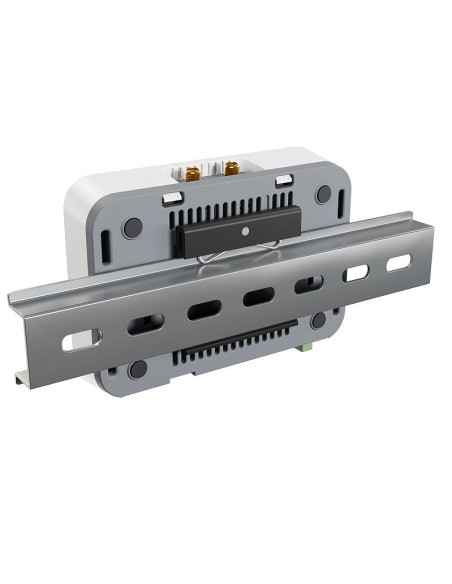

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on. Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT

KNOT could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE.

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data ie: iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others. KNOT is a great tool for most outdoor cabinet IoT
applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing and other scenarios.

Features of KNOT:

  • Product code RB924i-2nD-BT5&BG77
  • CPU QCA9531 650 MHz
  • Number of 100 Mbps Ethernet ports 2
  • Number of 100 Mbps Ethernet ports with PoE-out 1
  • Size of RAM 64 MB
  • Storage 16 MB flash
  • Wireless 2.4 GHz 802.11 b/g/n dual-chain
  • Antenna gain 1.5 dBi
  • Bluetooth antenna gain 2 dBi
  • Antenna beam width 360°
  • Bluetooth Version 5.2
  • Dimensions 122 x 87 x 26 mm
  • Operating system RouterOS, License level 4
  • USB port 1 microUSB port type AB
  • SIM slots 1 Nano SIM
  • Built-in GPS Yes (GPS, GLONASS, BeiDou, Galileo)
  • Operating temperature -40°C to +70°C

Powering:

  • PoE-in input Voltage 12-57 V
  • Number of DC inputs 3 (PoE-in, DC jack, MicroUSB)
  • Supported input Voltage 12-57 V (PoE-in. DC jack), 5 V (MicroUSB)
  • PoE-out 802.3af/at
  • PoE-out ports 1 (Ether2)
  • Power adapter nominal voltage 24 V
  • Power adapter nominal current 1.2 A
  • Max power consumption (without attachments) 5 W
  • Max power consumption 18 W

Supported Bands:

  • Module BG77:
  • Cat M1: LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Cat NB2: LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
  • Region Global
  • GNSS (Optional) GPS/GLONASS/BeiDou/Galileo/QZSS

iot gw knot connection scenario

POE Ports
1
Ethernet Ports
2
