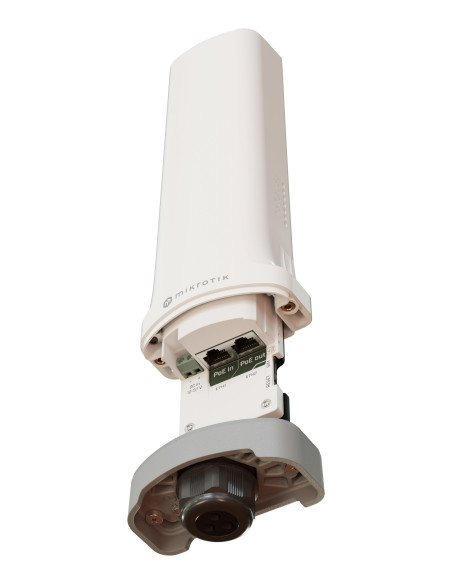

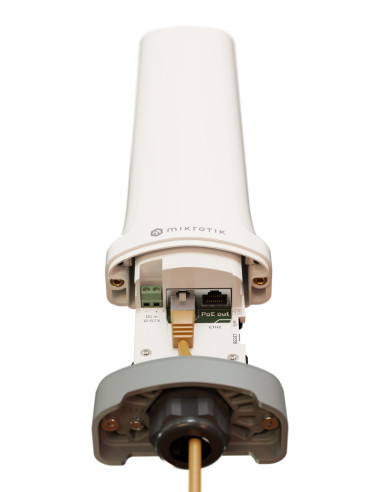

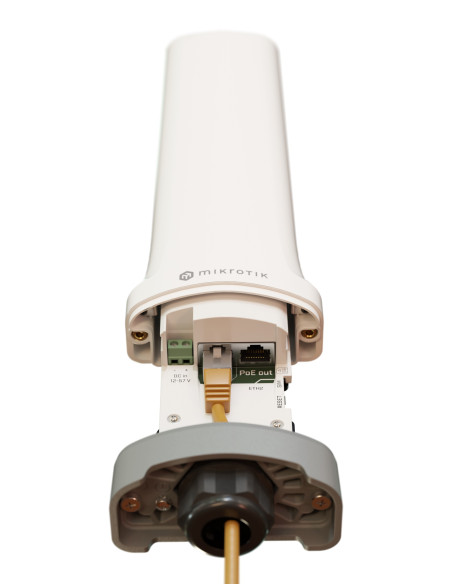

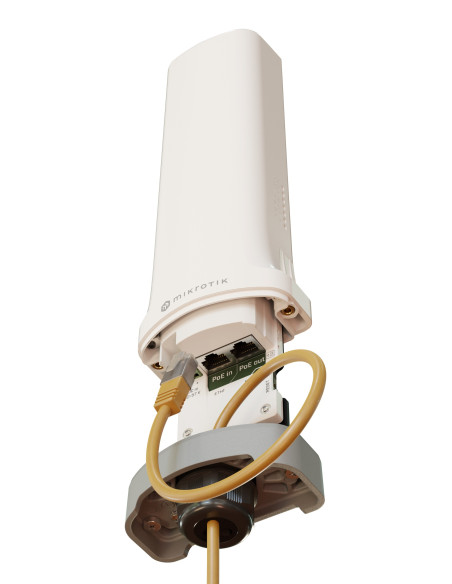

MikroTik CME22-2n-BG77 CME Gateway 2x100M Ethernet Ports CAT-M/NB GNSS PoE In/Out IP65 2.4GHz

CME22-2n-BG77
In Stock
$184.80
Tax included

CME22-2n-BG77

A rugged low-cost, low-bandwidth modem to connect Ethernet devices to mobile network... on the tightest budget ever!

Add remote management to your Ethernet IoT setups and save tons of money on data plans at the same time!

Quantity Unit price You Save
5 $165.77 $95.17
10 $160.78 $240.24
15 $158.00 $401.94
20 $157.08 $554.40


CME22-2n-BG77 - MikroTik CME Gateway 2x100M Ethernet Ports CAT-M/NB GNSS PoE In/Out IP65 2.4GHz

Are you tired of wired sensor limitations? Wouldn’t it be nice if legacy devices - like electricity meters - could send their data over the mobile network, like our phones do? With CME Gateway you can achieve just that – and more!

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

With the IP65 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - we’ve added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.  Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!

Specifications
Product Code CME22-2n-BG77
CPU QCA9531-BL3A-R 650 MHz
CPU architecture MIPSBE
CPU core count 1
Size of RAM 64 MB
RAM type DDR2
Storage 16 MB, Flash
Number of 100M Ethernet ports 2
Switch chip model QCA9531
Wireless interface model QCA9531-BL3A-R (2.4 GHz)
Wireless 802.11b/g/n
Antenna gain 2 dBi
GNSS interface model BG77
GNSS standard BeiDou, Galileo, GPS, Glonass
Antenna gain (GNSS) 3.9 dBi
IoT modem BG77
Cat NB type Cat NB2
Cat NB band B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71
Cat M type Cat M1
Cat M band B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66
Dimensions 253 x 88 x 60 mm
Operating system RouterOS v7, License level 4
Operating temparature -40°C to +70°C
Powering
Number of DC inputs 2 (PoE-In, 2-pin terminal)
PoE-In input Voltage 18-57 V
Max current at Min voltage 0.78 A
Max current at Max voltage 0.53 A
2-pin terminal input Voltage 12-57 V
Max current at Min voltage 0.893 A
Max current at Max voltage 0.53 A
Power adapter nominal voltage 48 V
Power adapter nominal current 0.95 A
PoE-In 802.3af/at
PoE-Out 802.3af/at
Smart PoE Injector
PoE-out ports

Ether 2, max out per port output (input < 30 V) 600 mA,

max out per port output (input > 30 V) 450 m

Max total out 0.6 A
Max power consumption without attachments 6 W
Max power consumption 31 W

Antenna Gain (dBi)
2
Device Features
Outdoor
PoE Powered
Power Input
DC
Ethernet Ports
2
Environment Temperature
-40℃~75℃
